Mechanical Electric Lock 60mA 8 Volt Cabinet Door Locks
Price:
Negotiable
MOQ:
1 piece
Delivery Time:
5-15 days working time
Brand:
KERONG
Product Description
Mechanical Electric Lock 60mA 8 Volt Cabinet Door Locks
Product parameters
| Model | KR-S78 |
| Size | 78*66.2*20.3 mm |
| Product name | Express cabinet lock |
| Weight | 258g |
| Material | 304 Stainless steel+ABS+PC |
| Working voltage | 8~24V |
| Working current | 60mA@12V |
| Power consumption | 0.72W |
| Response time | Less than 600ms |
| Revolution speed | 4.5 Rev/s |
| Working humidity | 5% ~ 85%RH |
| Unlocking times | 500,000 times |
| Door weight | 4KG~50KG |
| Test | Salt spray testing 72 hours |
| Applications | Gym, supermarket, water park storage cabinets |
| Static current (signal unlock) | <20uA |
| OEM | take up |
Product Main Features:
1. Motor/servo-driven, wide working voltage range: 8~24V. Low power consumption
2. It is recommended that the user's power supply unlocking time is greater than 500ms (uninterrupted)
3. Omron micro detective switch from Japan, high quality, and durability
4. Outlet port description:
1) Terminal (input pin) red wire: positive power supply;
2) Terminal (input pin) White wire: negative power GND;
3) Terminal (input pin) blue wire: lock hook detection signal A terminal, the switch signal can be set by the customer;
4) Terminal (input pin) white wire: the lock hook detection signal B terminal, this switch signal can also be set by the customer.
5. Mechanical emergency lever can be unlocked manually in case of power failure.
6. AWG24 wires with PVC protecting tube.
7. Support customizing wires and connectors.
2) Terminal (input pin) White wire: negative power GND;
3) Terminal (input pin) blue wire: lock hook detection signal A terminal, the switch signal can be set by the customer;
4) Terminal (input pin) white wire: the lock hook detection signal B terminal, this switch signal can also be set by the customer.
5. Mechanical emergency lever can be unlocked manually in case of power failure.
6. AWG24 wires with PVC protecting tube.
7. Support customizing wires and connectors.
Product Details

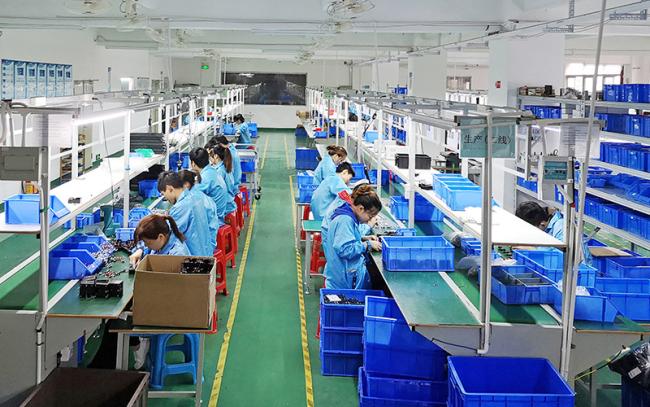

Workers in production:

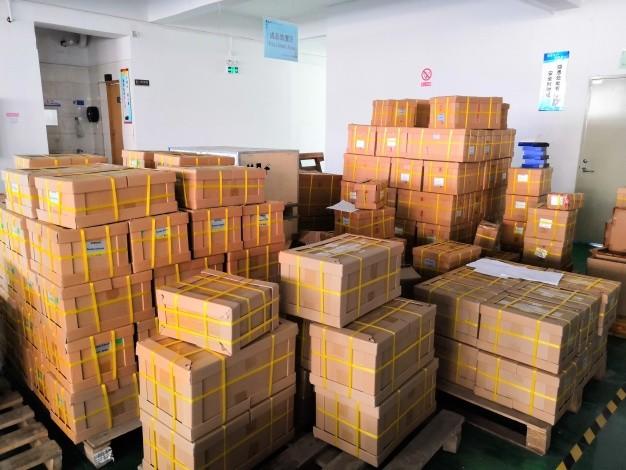

Express Packaging:
Our goods are shipping by sea /air freight, express depends on customers.
Hot Tag: Remote Control Cabinet Door Locks, Motor lock for cell phone charging cabinet, Smart Cabinet Lock
