0.72W Stainless Steel Cabinet Lock , 60mA Cabinet Locker Locks
0.72W Stainless Steel Cabinet Lock , 60mA Cabinet Locker Locks
Product Main Features:
1. Motor/servo-driven, wide working voltage range: 8~24V. Low power consumption.
2. It is recommended that the user's power supply unlocking time is greater than 500ms (uninterrupted).
3. Omron micro detective switch from Japan with high quality and durability.
4. Outlet port description:
2) Terminal (input pin) White wire: negative power GND;
3) Terminal (input pin) blue wire: lock hook detection signal A terminal, the switch signal can be set by the customer;
4) Terminal (input pin) white wire: the lock hook detection signal B terminal, this switch signal can also be set by the customer.
5. Mechanical emergency lever can be unlocked manually in case of power failure
6. AWG24 wires with PVC protecting tube
7. Support customizing wires and connectors
Product parameters:
| Model | KR-S78 |
| Size | 78*66.2*20.3 mm |
| Product name | Durable Industrial Mechanical Lock |
| Weight | 199g |
| Material | 304 Stainless Steel+ABS+PC |
| Working voltage | DC 8V/24V |
| Working current | 60mA@12V |
| Power consumption | 0.72W |
| Response time | Less than 20ms |
| Revolution speed | 4.5 Rev/s |
| Working humidity | 5% ~ 85%RH |
| Unlocking times | 500,000 times |
| Door weight | 4KG~50KG |
| Test | Salt spray testing 72 hours |
| Applications | Smart lockers, storage lockers, express lockers |
| Static current (signal unlock) | <20uA |
| OEM | Receive |

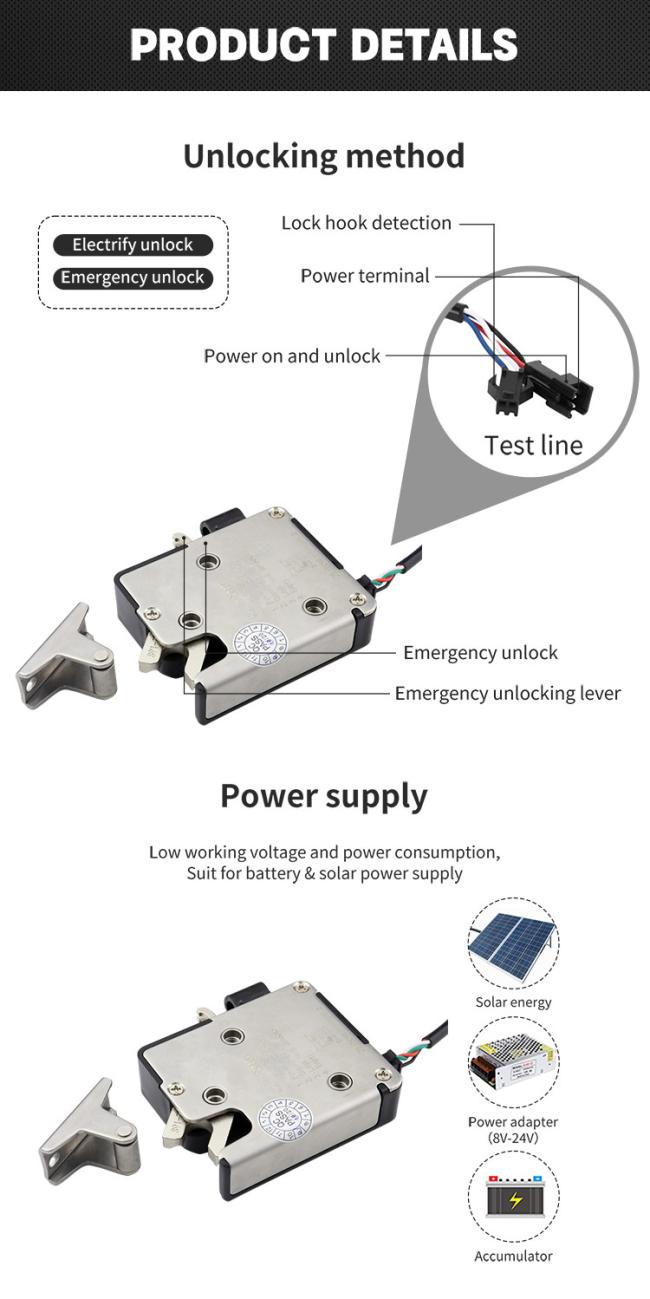

Product Details:
Special Locking Hooks
Product Applications:
Engaging in professional cabinet lock manufacturing, electronic locks are suitable for lockers in various places, such as institutions, schools, factories, hospitals, and other units of lockers.
Feel free to contact us for more information, we sincerely welcome your inquiry.
