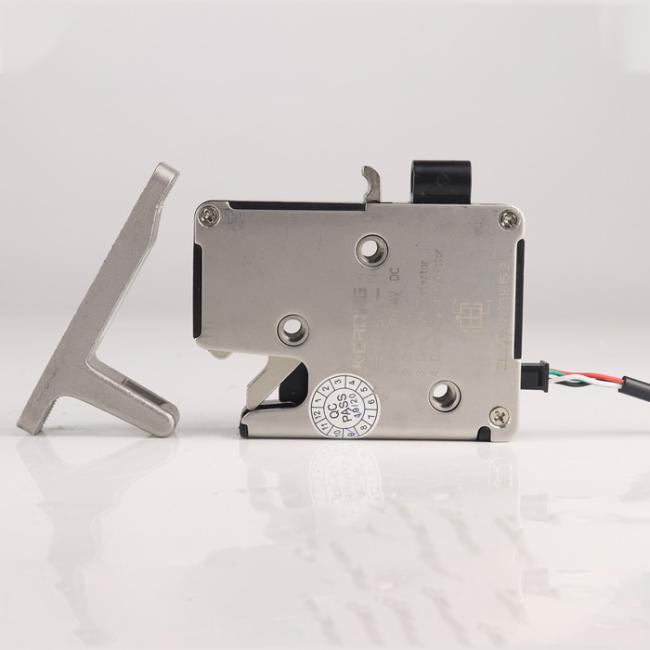

Kerong Electromechanical Charging Lock 60mA Push To Close Latch For Stainless Steel Doors
Kerong Electromechanical Charging Lock 60mA Push To Close Latch For Stainless Steel Doors
Product parameters
| Model | KR-S91 |
| Size | 91*66.2*20.3 mm |
| Product name | Electricity Charging Lock |
| Signal detection (open/close) | Omron |
| Material | lock body:304 Stainless steel lock tongue: Zinc Alloy |
| Working voltage | DC8V~DC24V(standard:<200mA@12V) |
| Working current | 60mA@12V |
| Power consumption | 0.72W |
| Response time | Less than 20ms |
| Revolution speed | 4.5 Rev/s |
| Working humidity | 5% ~ 85%RH |
| Unlocking times | 500,000 times |
| Door weight | 4KG~50KG |
| Test | Salt spray testing 72 hours |
| Applications | Delivery cabinet /Sauna locker/School locker/Gym locker/ Vending machine etc |
| Static current (signal unlock) | <20uA |
| OEM | yes |
Product Main Features
A metal-motor drive distinguishes the KR-S91 latch from competitive solenoid driven electromechanical latches – with door magnetic detector keep high safety, detect whether doors, windows, drawers, etc. are illegally opened or moved.
1. High-strength construction operates against high mechanical loads.
2. Compact latch housing minimizes space requirements and maintains a clean, concealed exterior look.
3. Internal Omron micro switch for latch open/close output signal, 500,000-time working life.
4. Convenient mechanical override enables manual release during a power failure.
5. Support customizing wires and connectors.
6. AWG24 wires with PVC protecting tube.
Product Details
Optional with and without door magnet detection
Workers in production
Hot Tag: Electronic Rotary Push-To-Close Latch, Security Cabinet Lock, Electronic smart cabinet lock
