12V/24V DC Electric Solenoid Cabinet Lock With Sliding Door Detection For Express Locker
12V/24V DC Electric Solenoid Lock With Sliding Door Detection For Express Locker
Product parameters:
| Model | KR-S99S |

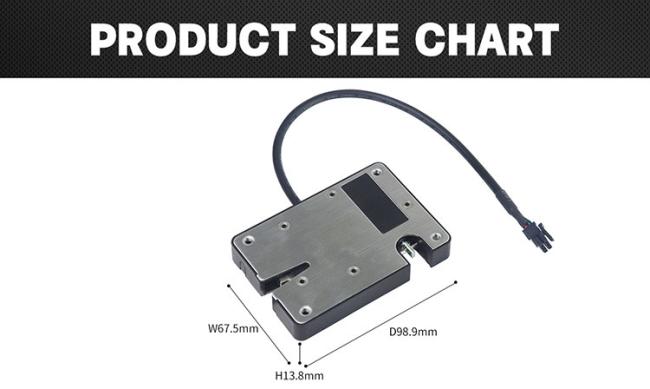

| Size | 98.9*67.5*13.8 mm |
| Name | Smart Express Locker Lock |
| The material of the lock body | 430 Stainless steel+PA+GF |
| The material of the lock bolt | Zinc alloy nickel plating |
| Working voltage | DC12V/DC24V |
| Working current | 2.4A/2.4V |
| Maximum power | 28W |
| Response time | Less than 20ms |
| Working temperature | -20℃ ~ +60℃ |
| Working humidity | 5% ~ 85%RH |
| Working life | 500,000 times |
| Door weight | 0.5KG~10KG |
| Test | Salt spray testing 48 hours |
| Usage | cabinet; express locker; vending machine; gym locker |
| Certification | CE; FCC; RoHS |
| OEM | Accepted |
Product Main Features:
1. Solenoid driven, support 12V & 24V
2. Lock hook detection function
3. 430 stainless steel shrink shell more durable, anti-force performance: 350kgs
4. Built-in push block helps push the door, thrust can be adjusted
5. Can be unlocked manually in case of power failure through mechanical emergency lever
6. AWG24 wires with PVC protecting tube
7. Push door detection function
8. Customizing connectors and wires is available
Product Details:
Product Applications:
Our product KR-S99S electronic solenoid locker lock are used in express cabinets, vending machine, gym locker, storage cabinets, etc.
Other Different Lock Options:
|
Model
|
Material | Driven mode | Working current | IP rating |
|
KR-S99N
|
430 stainless steel | Solenoid | 2.4A/1.2A | / |
|
KR-S70
|
304 stainless steel | Motor/servo | 100mA@12V | IP66 |
|
KR-S79S
|
304 stainless steel+PC | Motor/servo | 80mA@12V | IP66 |
|
KR-S98C
|
430 stainless steel+PA+GF | Solenoid | 2.4A/1.2A | IP66 |
Feel free to contact us for more information, we sincerely welcome your inquiry.
Hot Tag: Electronic 12VDC Solenoid Express Locker Lock, IP66 Waterproof Magnetic Lock, Custom Lock
