Waterproof Passivation Electric Magnetic Lock for Freezer Locker
Waterproof Passivation Electric Magnetic Lock for Freezer Locker
Product parameters:
| Model | KR-S98C |
| Size | 98*66*13.8 mm |
| Name | Electromagnetic Waterproof Lock |
| Weight | 185g |
| The material | 430 stainless steel+PA+GF |
| Working voltage | 12V/24V |
| Working current | 2.4A/1.2A |
| Maximum power | 28W |
| Response time | Less than 20ms |
| Working temperature | -20℃ ~ +60℃ |
| Working humidity | 5% ~ 85%RH |
| Working life | 500000 times |
| Door weight | 0.5KG~10KG |
| Test | Salt spray testing 48 hours |
| Usage | Delivery cabinet /Sauna locker/School locker/Fresh locker etc |
| Certification | CE; FCC; RoHS |
| OEM | Accepted |
Product Main Features:

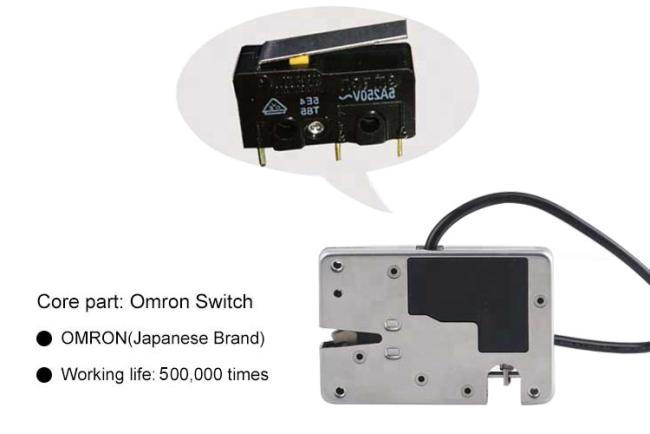

1. Solenoid driven, support 12V & 24V.
2. Lock hook detection function.
3. Lock shell is made of 430 stainless steel, anti-force performance as 300kgs.
4. All electronic parts are protected in the sealed ABS box. IP66 waterproof.
5. Built-in push block helps push the door, and the thrust is adjustable.
6. Mechanical emergency control lever, which can be manually unlocked when the power is off.
7. Imported piano torsion spring, AWG24 wires with PVC protecting tube.
8. Customizing wires and terminals is available.
Product Details
Product Applications
Our products KR-S98C electronic locker locks can be applied to deposit lockers, logistics cabinets, express lockers, sauna lockers, vending machines, centralized control box ark, kiosk lockers, etc.
Feel free to contact us for more information, we sincerely welcome your inquiry.
