12V 24V Plastic Waterproof Electronic Lock Water Resistant Lock
12V 24V Plastic Waterproof Electronic Lock Water Resistant Lock
Product parameters:

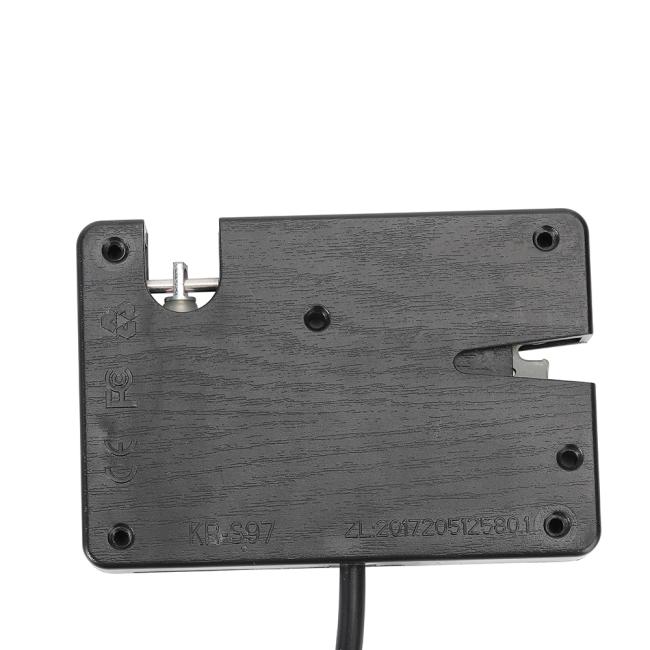

| Model | KR-S97 |
| Size | 97*66*13.3 mm |
| Name | Waterproof Electrical Lock |
| Weight with lock hook | 115g |
| The material of lock body | ABS+PC |
| The material of lock bolt | Zinc alloy |
| Working voltage | 12V/24V |
| Working current | 2.4A/1.2A |
| Maximum power | 28W |
| Response time | Less than 20ms |
| Working temperature | -20℃ ~ +60℃ |
| Working humidity | 5% ~ 85%RH |
| Working life | 500,000 times |
| Certification | CE; RoHS; FCC |
| OEM | Accepted |
Product Main Features:
1. The lock shell is made of plastic, adaptable temperature: -20℃~60℃.
2. Support 12V & 24V, electromagnetic drive.
3. It can be waterproof. All electronic components are protected in a sealed ABS box.
4. Equipped with a mechanical emergency lever, which can be manually unlocked in the event of a power failure.
5. Japan's Omron micro probe switch, with a service life of 500,000 times.
6. AWG24 wire with PVC protective tube.
7. Support customizing wires and connectors.
How it works?
Product Applications:
Our products KR-S97 electronic locker locks are used in parcel storage lockers, postal cabinets, vending kiosk locker, centralized control ark express cabinets, etc.
Feel free to contact us for more information, we sincerely welcome your inquiry.
Hot Tag: ABS Magnetic Water-Proof Cabinet Lock, Waterproof Electrical Lock, China, Suppliers
