IP66 Waterproof Electromagnetic Solenoid Lock 2.4A Electromechanic Lock
IP66 Waterproof Electromagnetic Solenoid Lock 2.4A Electromechanic Lock
Product parameters:
| Model | KR-S98C |
| Size | 98*66*13.8 mm |
| Name | Solenoid Waterproof Lock |
| Weight | 185g |
| The material | 430 stainless steel+PA+GF |
| Working voltage | 12V/24V |
| Working current | 2.4A/1.2A |
| Maximum power | 28W |
| Working temperature | -20℃ ~ +60℃ |
| Working humidity | 5% ~ 85%RH |
| Working life | 500,000 times |
| Door weight | 0.5KG~10KG |
| Test | Salt spray testing 48 hours |

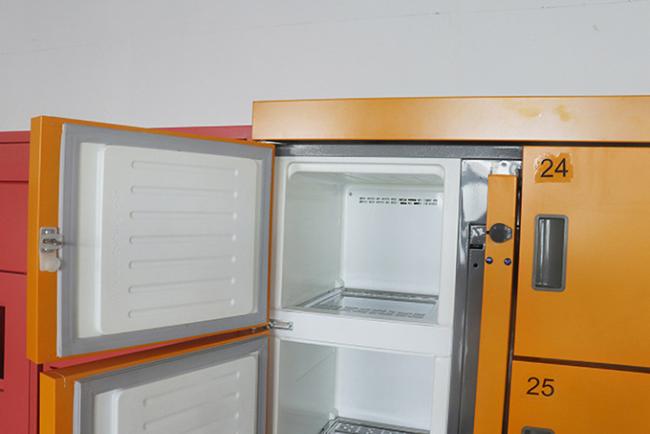

| Usage | Parcel cabinet /logistics locker/School locker/ Chest freezer etc |
| Certification | CE; FCC; RoHS |
| OEM | Accepted |
Product Description:
1. Driven by solenoid, support 12V&24V.
2. AWG24 wire with PVC protective tube.
3. Support custom wires and connectors.

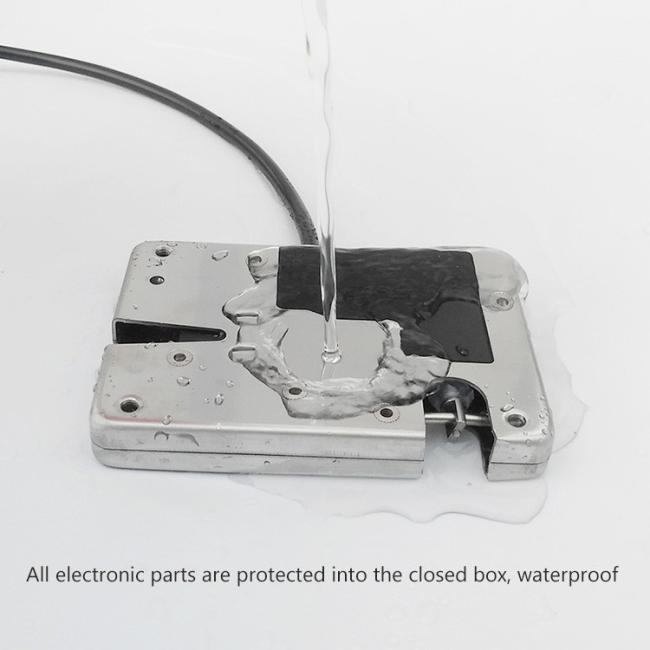

4. All electronic parts are protected in the closed box. Waterproof.
5. Equipped with an emergency unlocking lever, which can be manually unlocked in an emergency.
6. Different lock hooks are suitable for different locker designs and can provide customized services.
7. The Japanese Omron switch has a long service life and detects the opening and closing of the lock.
8. Safety: The lock shell is made of 430 stainless steel, and there will be no obvious transformation.

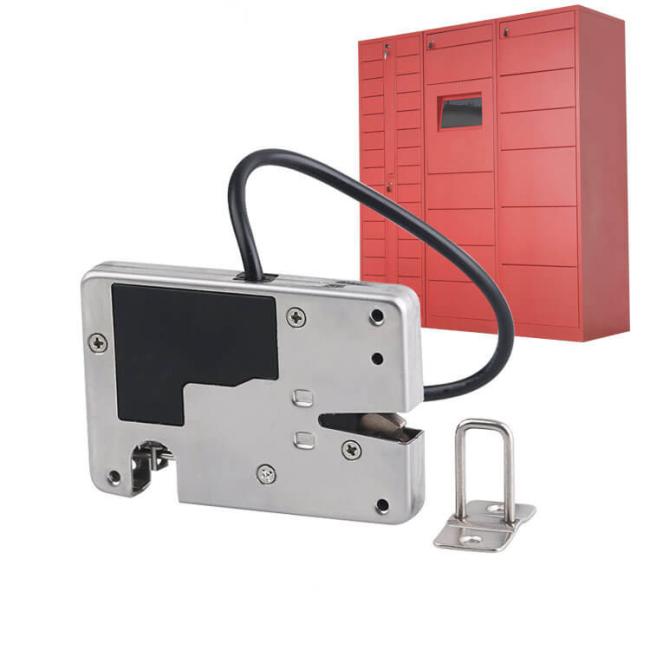

Product Show:
Feel free to contact us for more information, we sincerely welcome your inquiry.
