Automatic Electric Cabinet Magnetic Lock Remote Control 12V Stainless Steel
Automatic Electric Cabinet Magnetic Lock Remote Control 12V Stainless Steel
Product parameters:
| Model | KR-S98C |
| Size | 98*66*13.8 mm |
| Name | Cabinet Magnetic Lock |
| Weight | 185g |
| The material | 430 stainless steel+PA+GF |
| Working voltage | DC 12V/24V |
| Working current | 2.4A/1.2A |
| Maximum power | 28W |
| Response time | Less than 20ms |
| Working temperature | -20℃ ~ +60℃ |
| Working humidity | 5% ~ 85%RH |
| Working life | 500,000 times |
| Door weight | 0.5KG~10KG |
| Test | Salt spray testing 48 hours |
| Applications | Delivery cabinet /Sauna locker/School locker/Gym locker/ Vending machine etc |
| Certification | CE; FCC; RoHS |
| OEM | Accepted |

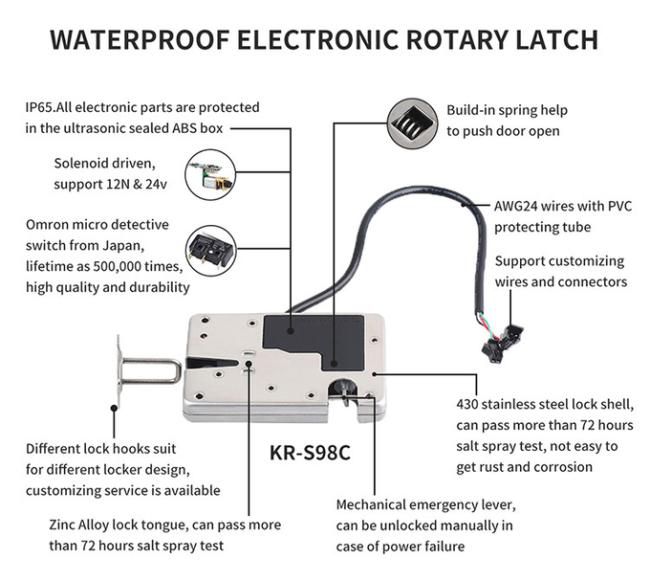

Product Main Features:
1. Driven by the solenoid, support 12V & 24V.
2. Lock hook detection function.
3. 430 stainless steel shrink shell more durable, anti-force performance: 300kgs.
4. IP66 Waterproof. All electronic parts are protected in the sealed ABS box.
5. Built-in push block helps push the door, thrust can be adjusted.
6. Mechanical emergency lever, can be unlocked manually in case of power failure.
7. Imported piano torsion spring, AWG24 wires with PVC protecting tube.

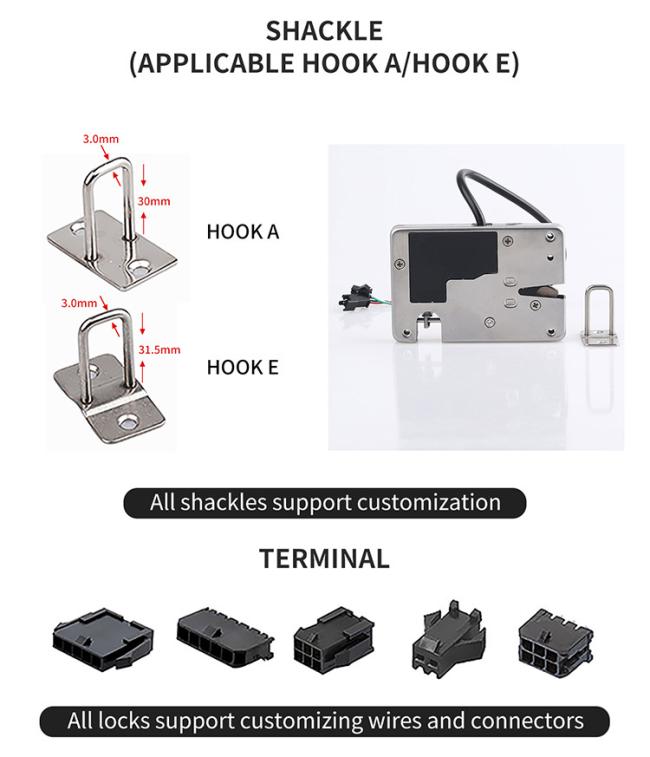

8. Support customizing wires and connectors.

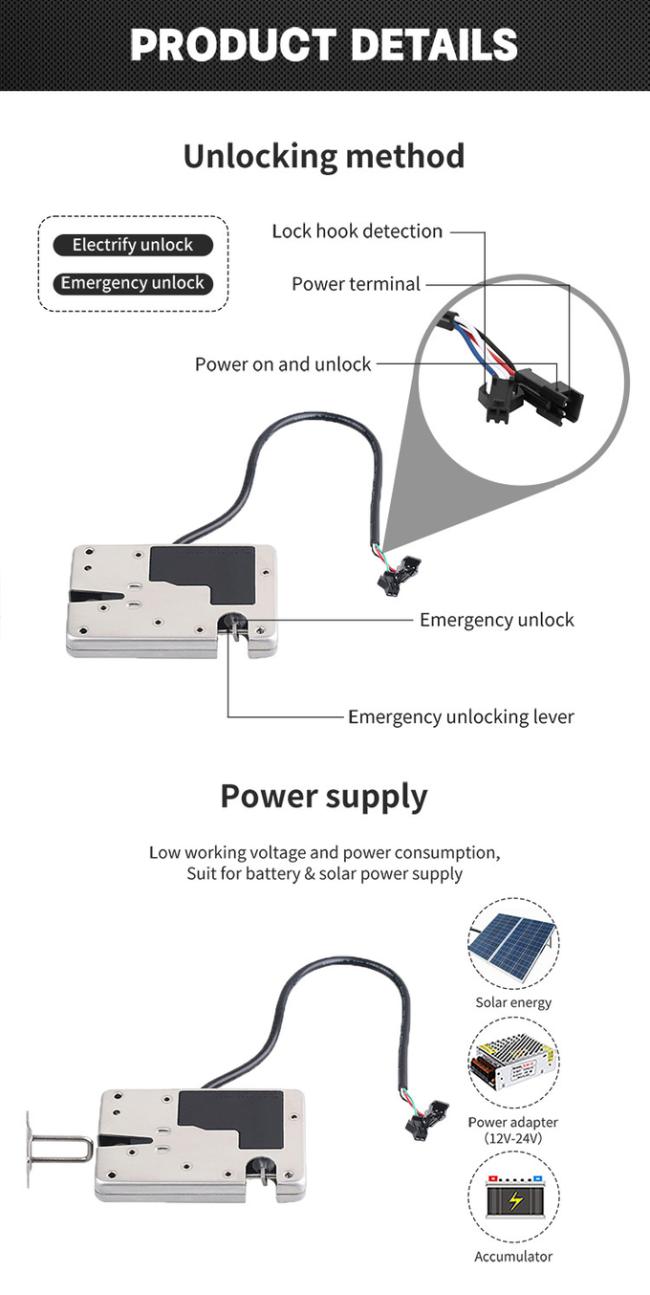

Product Details
Product Applications
Our products KR-S98C electronic cabinet /locker locks can be applied to deposit lockers, logistics cabinets/lockers, express lockers, parcel, lockers, gym lockers, sauna lockers, wardrobe lockers, document cabinets, electricity meter box, vending machines, phone cabinets, shoe cabinets... centralized control box ark, kiosk lockers, etc.
Feel free to contact us for more information, we sincerely welcome your inquiry.
Hot Tag: Magnetic Drawer Locks; Electrical Lock; Electric Magnetic Lock; Latch Lock; Storage Locker Lock
