Ultra Long 8000mm Carbon Fibre 90 Degree Angle For Helicopter Bracket
Price:
Negotiable
MOQ:
50pcs
Delivery Time:
7-10 days for sample
Brand:
Tasuns
Product Description
Ultra Long 8000mm Carbon Fibre 90 Degree Angle For Helicopter Bracket
About carbon fiber Angel:
Our Carbon Fiber all Fabric 90° sharp radius angle makes for very lightweight mounting brackets or other hardware.
You can even use it to join plates and other items. The layup consists of 8 plies of a 2x2 Twill Weave. The epoxy resin used is a 250F system.Twill weave throughout the entire angle provides a beautiful aesthetic and a better surface for machining.
| Name | Customized carbon fiber composite angle |
| Material | carbon fiber |
| Angel | 45/90/customized degree |
| Max length | 8000mm |
| Thickness | 0.5mm~100mm |
| MOQ | 50 piece |
| Finish | 3K matte/glossy, twill/plain |
| Application | The woven carbon fibre reinforcement used to make the angles provides strength both longitudinally and also transversely, making them suitable for structural applications with loads in either direction including brackets, braces and frames. |
Other shaped angle:

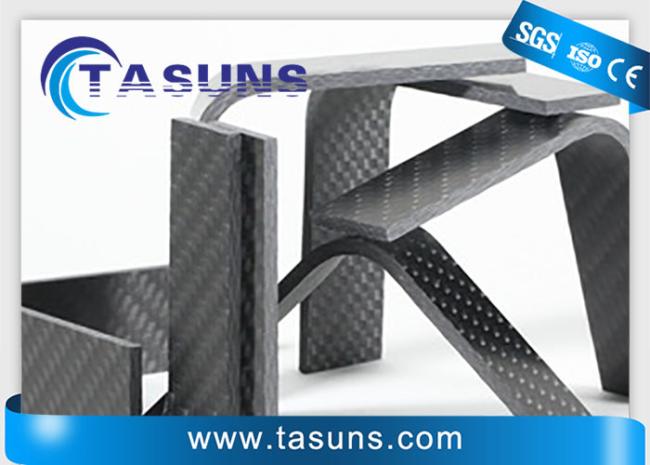

Different shapes of Carbon fibre angle:
- 90degree carbon fibre angle
- Pultruded carbon fiber angles
- Carbon fibre right angle brackets
- 3k twill Glossy carbon fiber angles
- Carbon Fiber angle braces
- Carbon fiber C channel
- Carbon fiber U channel
- Carbon fiber l bracket
- Carbon fibre angle strip
Quality assurance:

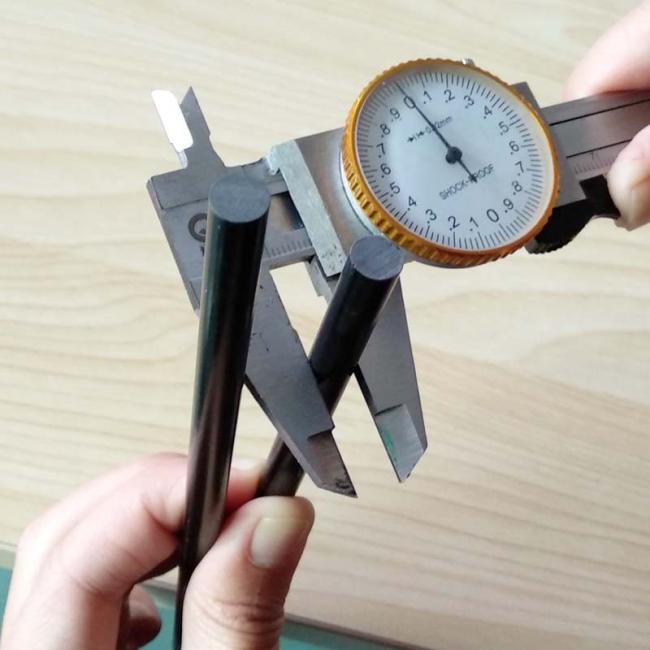

ID/OD Machining precision: +/- 0.1mm
Packaging:
1)packing each by bubble wrap;
2) carton box
