No Weave Pultruded Carbon Fiber C Channel For Reinforcement
Pultruded Carbon Fibre C Channel For Reinforcement

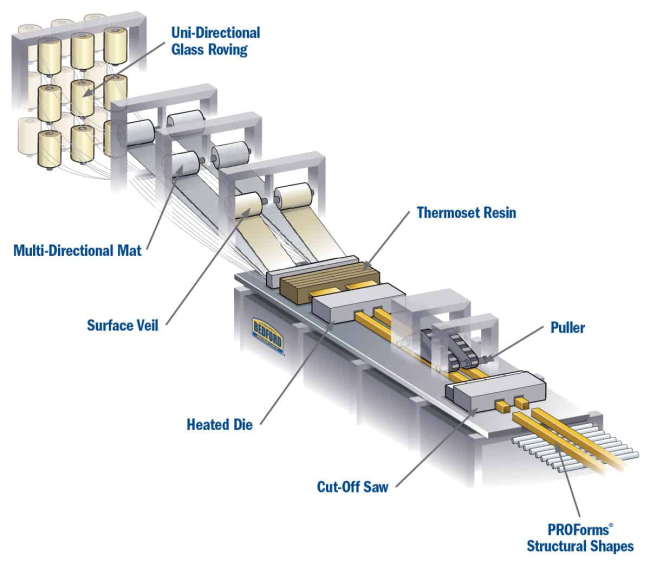

The advantages of pultruded fiber products:
1. High productivity;
2. The process parameters are easy to control;
3. Low labor cost;
4. The precise cross-sectional size of the product;
5. The surface quality of the product is good.
Structural applications include: beams and girders for carbon fiber tubes, carbon fiber sucker rods, roof structures, bridges, ladders, and frames.
Tasuns Carbon fibre U shaped angle:
| Regular size(U channel) | ||
| Size(mm) | Unit Weight(kg/m) | |
| 25*12*3.0 | 0.258 | |
| 30*15*3.0 | 0.324 | |
| 32*18*4.0 | 0.48 | |
| 47*23*5.0 | 0.83 | |
| 50*25*4.0 | 0.736 | |
| 65*30*4.0 | 0.936 | |
| 68*32*4.2 | 1.04 | |
| 100*35*5.0 | 1.6 | |
| 103*38*6.0 | 2.0 | |
| customized | customized | |
| Regular size(I Channel) | ||
| Size(mm) | Unit Weight(kg/m) | |
| 20*15*3.0 | 0.294 | |
| 23*26*3.5 | 0.455 | |
| 25*30*4.0 | 0.576 | |
| 45*32*5.0 | 1.12 | |
| 50*35*5.0 | 1.25 | |
| 60*46*9.0 | 2.66 | |
| 75*55*12 | 4.34 | |
| 80*30*3.2 | 0.84 | |
| customized | customized | |
| Regular size(L Channel) | ||
| Size(mm) | Unit Weight(kg/m) | |
| 20*20*3.0 | 0.29 | |
| 25*25*3.0 | 0.28 | |
| 30*30*3.5 | 0.39 | |
| 35*35*4.0 | 0.53 | |
| 50*50*5.0 | 0.95 | |
| 70*70*6.0 | 1.61 | |
| 75*75*6.0 | 1.73 | |
| 90*90*8.0 | 2.75 | |
| customized | customized | |
Other available shapes:
Different shapes of Carbon fibre C channel:
| · 45degree carbon fibre angle | · Carbon Fiber angle braces |
| · 90degree carbon fibre angle | · Carbon fiber C channel |
| · Pultruded carbon fiber angles | · Carbon fiber U channel |
| · Carbon fibre right angle brackets | · Carbon fiber l bracket |
| · 3k twill Glossy carbon fiber angles | · Carbon fibre angle strip |
Packaging:
1)packing each by bubble wrap;
2) carton box
FAQ:
1. How can I get the reasonable price efficiently?
-Quantity, specification and 3D drawing will be helpful.
2. What file format are available for you to open?
-DWG, DXF, STP, IGS are available.
3. What is your payment term?
-T/T and Paypal are common, other methods could be discussed.
4. What is the shipping method?
-By sea/air/express (TNT, FEDEX, DHL, UPS, EMS,and ect.), assigned forwarder also works.
