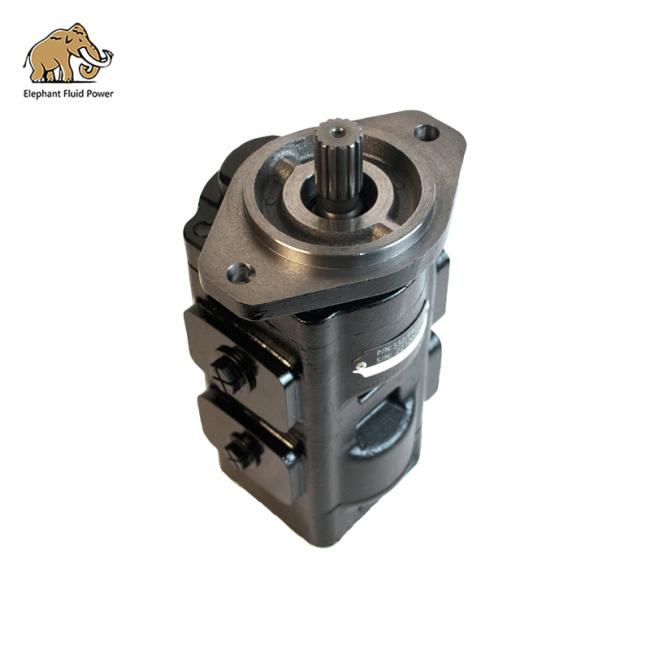

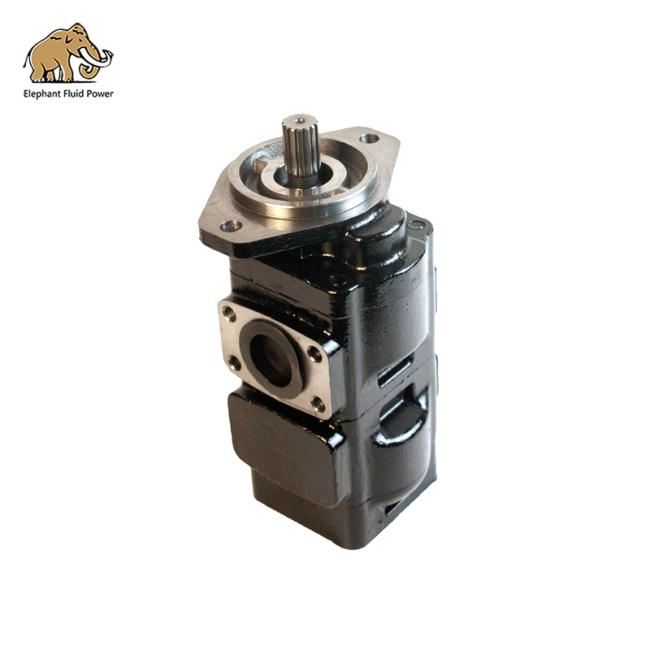

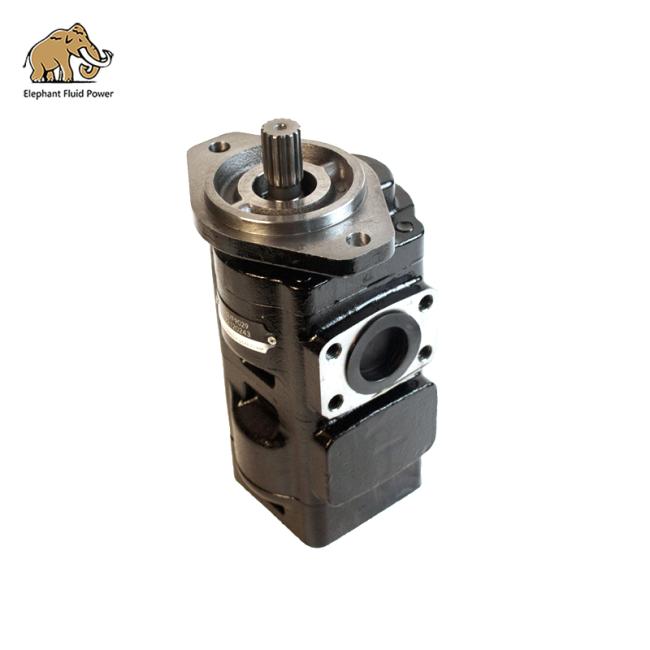

Parker 332/F9029 Jcb 3cx Servo Hydraulic Pump Spare Parts Heavy Equipment Parts
Parker 332/F9029 Jcb 3cx Servo Hydraulic Pump Spare Parts Heavy Equipment Maintain Repair Kits
- Rotation: Clockwise (looking from shaft end)
- 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
- SAE B 2 hole mounting flange
- Front pump displacement: 36 cc/rev (36L/Min per 1000 rpm)
- Rear pump displacement: 26 cc/rev (26L/Min per 1000 rpm)
- Single 2” SAE flange inlet
- Front pump outlet: 1 1/16”-12 UNF threaded
- Rear pump outlet: 7/8”-14 UNF threaded
- Maximum working pressure on front pump: 250 bar
- Maximum working pressure on rear pump: 275 bar
- Max. Input shaft torque: 460 Nm
Replaces the following JCB part numbers
- 20/925339 - 20/925579 - 332/F9029
Machine Fitment
- PUMP 36/26 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 3CX-T 92 and 100hp 9812/0010
- PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX MANUAL Sideshift 9802/9800
- PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CXSM P/S Sideshift 9802/9800
- PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX P/S Sideshift 9802/9800
- PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CXSM Sideshift 9802/9800
- PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CXSM MANUAL Sideshift 9802/9800
- PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX Sideshift 9802/9800
- PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX SUPER Sideshift 9802/9800
- PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX SUPER P/S Sideshift 9802/9800
- PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX SUPER MAN Sideshift 9802/9800
- PUMP 36/26 CCR MAIN HYDRAULIC - LAT-AM 90 HP BUILDS M1348037 214e/3C 14 Centremount Economy "e" 9812/0010
We offer you high-quality hydraulic pumps for JCB construction machines.
Each of the pumps is characterized by reliability and durability.
Machine models: 3CX, 4CX.
Each pump we sell has an individual flow chart under a load of about 150 bar.
The test consists in simulating the conditions in which the pump works on a daily basis (high loads, pressure jumps)
As a result, the customer can be sure that he is installing a proven product that has passed the test.
More JCB pump available as below:
| JCB CODE |
| 332/F9030 20/925580 7029120047 |
| 333/G5390 332/G7135 |
| 332/F9032 |
| 332/F9029 20/925579 20/925339 20/925338 |
| 332/F9031 20/925581 333/G5391 |
| 20/925340 7029120005 |
| 20/925341 |
| 20/925366 220/925586 333/C5234 333/G5392 |
| 20/925337 |
| 20/925578 20/925586 332/F9028 |
| 20/912800 20/903100 20/902900 |
| 20/903200 20/911200 |
| 20/902900 |
| 20/903000 |
| 20/903300 4074 |
| 20/925592 20/925357 |
| 7049520006332/E6671 |
| 919/75002 |
| 20/925732 |
| 20/925588 20/925356 7029530002 |
| 20/925591 20/918300 |
Elephant Fluid Power is a professional manufacturer of hydraulic pump,hydraulic motor and pump parts,we have been exported to more than 80
countries and aereas,is a famous and popular brand in Hydraulic business line.We have become the first choice of your hydraulic line,we will develop together and make more success.
Welcome to your enquiry.
