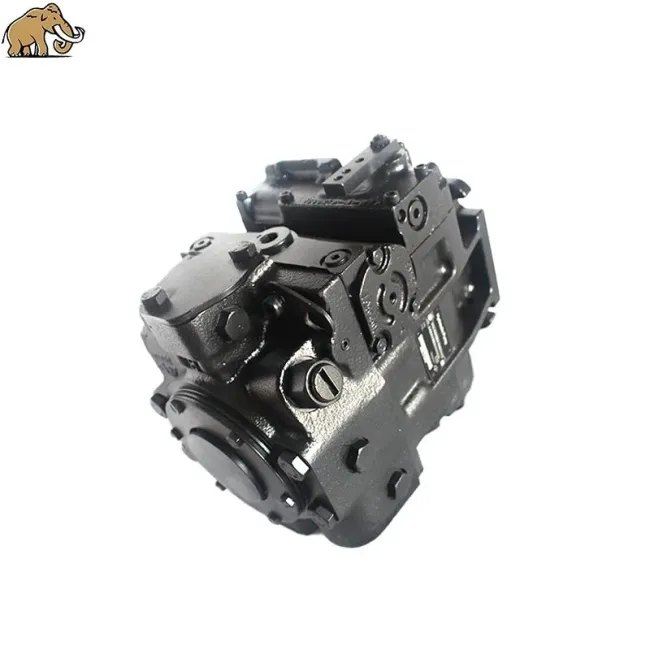

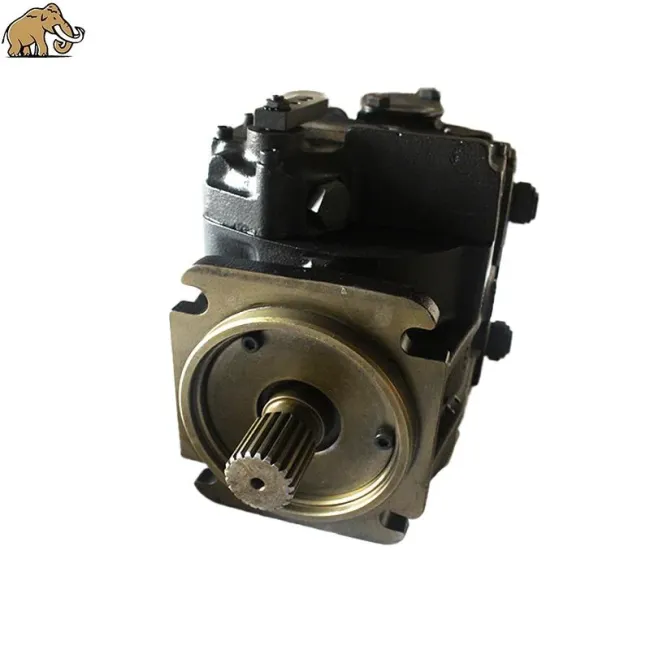

90R55 Sauer 90 Series Pump Hydraulic Piston Pump Assy High Strength
SCHWING hydraulic maintenance 10174306 A4FO22/32L
Elephant fluid power supply A series of Sauer 90 Pump.
Best choice for replacment.
Sauer 90 pump
Hydraulic pump Sauer Sundstrand 90R series 90R030, 90R042, 90R055, 90R075, 90R100, 90R130, 90R180, 90R250
90L series 90L030, 90L042, 90L055, 90L075, 90L100, 90L130, 90L180, 90L250
Closed circuit
Size 030 042 055 075 100 130 180 250
Series 90
Maximum loads of 480 bar (6960 psi)
Controls device: CA, DC, DD, KA , KP, HF, MA, MB, etc.
Series 90 axial piston variable displacement pumps are of cradle swash plate design with variable displacement, and are intended for closed circuit appliions. The flow rate is proportional to the pump input speed and displacement. The latter is infinitely adjustable between zero and maximum displacement. Flow direction is reversed by tilting the swash plate to the opposite side of the neutral (zero displacement) position.
- The Series 90 - Advanced Technology Today
- 8 Sizes of Variable Displacement Pumps
- Complete Family of Control Systems
- Proven Reliability and Performance
- Optimum Product Configurations
- Compact and Lightweight
Technical Data
Table of values (theoretical values, without efficiency and tolerances; values rounded)
| Sauer 90 | Dimension | 90R030 90L030 |
90R042 90L042 |
90R055 90L055 |
90R075 90L075 |
90R100 90L100 |
90R130 90L130 |
90R180 90L180 |
90R250 90L250 |
|
| Displacement | cm3 | 30 | 42 | 55 | 75 | 100 | 130 | 180 | 250 | |
| in3 | 1.83 | 2.56 | 3.35 | 4.57 | 6.1 | 7.93 | 10.98 | 15.25 | ||
| Input speed | Minimum | min-1 (rpm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Rated | min-1 (rpm) | 4 200 | 4 200 | 3 900 | 3 600 | 3 300 | 3 100 | 2 600 | 2 300 | |
| Maximum | min-1 (rpm) | 4 600 | 4 600 | 4 250 | 3 950 | 3 650 | 3 400 | 2 850 | 2 500 | |
| Max. Attainable | min-1 (rpm) | 5 000 | 5 000 | 4 700 | 4 300 | 4 000 | 3 700 | 3 150 | 2 750 | |
| Theoretical | Nm/bar | 0.48 | 0.67 | 0.88 | 1.19 | 1.59 | 2.07 | 2.87 | 3.97 | |
| Torque | in lb/1000 psi | 290 | 410 | 530 | 730 | 970 | 1 260 | 1 750 | 2 433 | |
| Mass moment of inertia of the int. rotating parts | kg m2 | 0.0023 | 0.0039 | 0.006 | 0.0096 | 0.015 | 0.023 | 0.038 | 0.065 | |
| lb • ft2 | 0.0546 | 0.0926 | 0.1424 | 0.228 | 0.356 | 0.546 | 0.902 | 1.543 | ||
| Weight (with MA Control) | kg | 28 | 34 | 40 | 49 | 68 | 88 | 136 | 154 | |
| lb | 62 | 75 | 88 | 108 | 150 | 195 | 300 | 340 | ||
Our company has rich experience in repairing various imported and domestic hydraulic components such as plunger pumps, motors, reducers and so on. The company has advanced hydraulic pump test benches, and is equipped with professional hydraulic system engineers, maintenance engineers have rich practical maintenance experience. Products are widely used in roadheaders, excavators, concrete mixers, concrete pump trucks, pumping stations, pavers, road rollers, road mixers, hydraulic hoists, steel rolling machines, injection molding machines, petroleum equipment, environmental protection and other hydraulic machinery. Covers construction machinery, construction machinery, metallurgical machinery, mining machinery, hoisting machinery, injection molding machinery, chemical machinery, petroleum, shipping, environmental protection and other fields. The company has flexible mechanism, good reputation, good service and reliable product quality.
