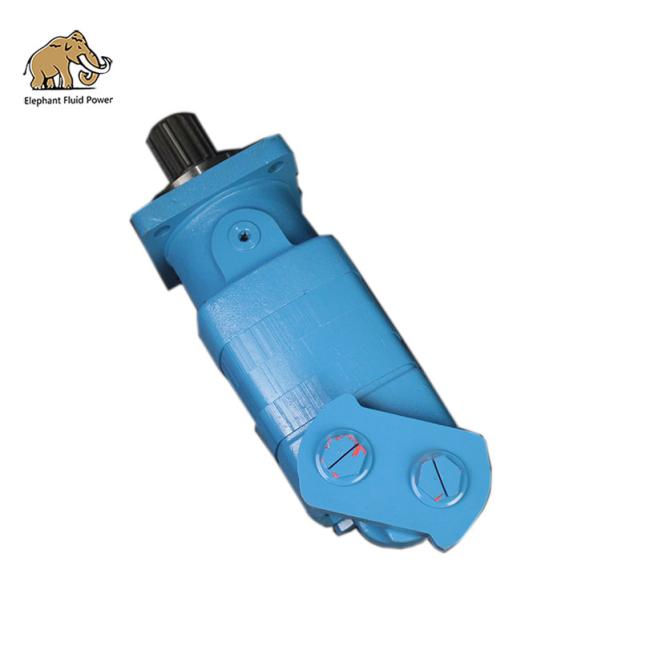

Original Char Lynn Hydraulic Motor Replacement Bmk6-500 Disc Valve 112-1062-006
Original Replacement BMK6-500 Disc Valve 112-1062-006 Char Lynn Hydraulic Motor
The Char-Lynn 12-1062-006 hydraulic motor is a specific model manufactured by Eaton's Char-Lynn division. Char-Lynn is known for producing high-quality hydraulic motors widely used in various industries, including construction, agriculture, and material handling.
Our BMK6 = EATON CHAR-LYNN 6000 = EATON CHAR-LYNN 6K = OMT = M+S MT
Model number: BMK6-500
Replace Char-lynn motor 6000 Series
Displacement: 30.00
Flange: 4x13.5 Square flange
Pilot: 127x12.5mm
Mounting distance: 161.9mm
Shaft: 17-DP12/24
Port:3/4’’ 8X3/8-16UNC
Drain port: 7/16-20 UNF
Paint: Blue
Main Specification
| Type |
BMK6 200 |
BMK6 250 |
BMK6 315 |
BMK6 400 |
BMK6 500 |
BMK6 630 |
BMK6 800 |
BMK6 1000 |
||
| Geometric displacement (cm3 /rev.) |
195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | ||
| Main speed(rpm) | cont. | 765 | 610 | 480 | 382 | 304 | 240 | 186 | 152 | |
| int. | 865 | 830 | 690 | 570 | 455 | 360 | 280 | 230 | ||
| Max torque N.M | cont. | 565 | 710 | 920 | 1160 | 1445 | 1480 | 1580 | 1675 | |
| int. | 840 | 1080 | 1325 | 1625 | 1880 | 1890 | 1880 | 1860 | ||
| Max pressure drop (Mpa) | cont. | 20 | 20 | 20 | 20 | 20 | 17.5 | 14 | 14 | |
| int. | 30 | 30 | 30 | 30 | 27.5 | 22.5 | 15.5 | 14 | ||
| Weight (kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 | ||
Eaton Char Lynn 6000 Series Hydraulic Motor
112-1066-006 M0619B01A0000F
112-1254-006 M0619B01A2100F
112-1344-006 M0619B03A00A0F
112-1090-006 M0619B03C00A0F
112-1303-006 M0619B10B0000F
112-1096-006 M0619B10C00A0F
112-1097-006 M0624B10C00A0F
112-1068-006 M0630B01A0000F
112-1315-006 M0630B01A21A0F
112-1056-006 M0630B02A0000F
112-1066-007 M0619B01A4200F
112-1254-007 M0619B01A6300F
112-1344-007 M0619B03A00A1F
112-1090-007 M0619B03C00A1F
112-1303-007 M0619B10B0001F
112-1096-007 M0619B10C00A1F
112-1097-007 M0624B10C00A1F
112-1068-007 M0630B01A0001F
Above All are in stock, welcome to contact us for suppporting your business.
Our objective is to provide all globle customers with a choice of exceptional quality hydraulic products
at the lowest prices possible, whilst backing this up with a friendly and professional service.
