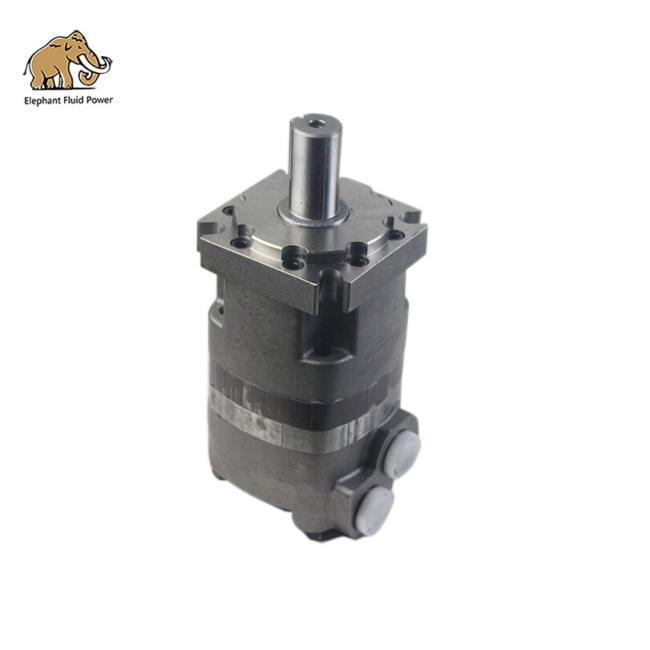

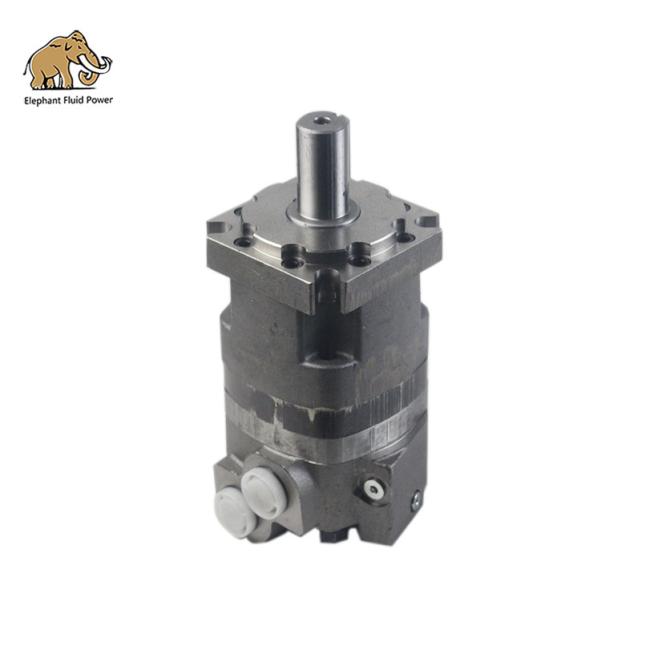

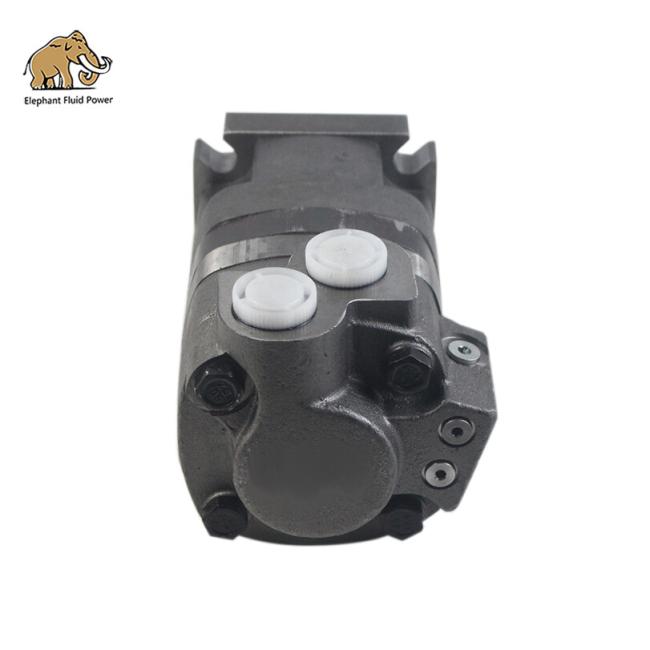

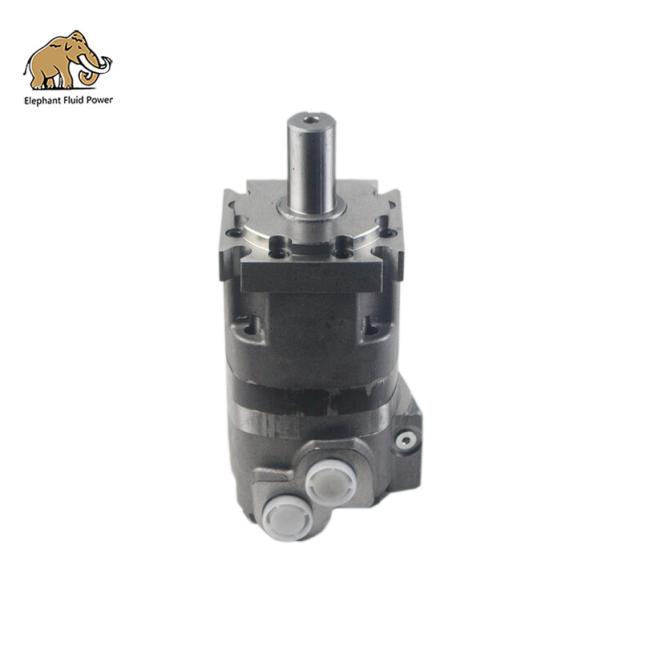

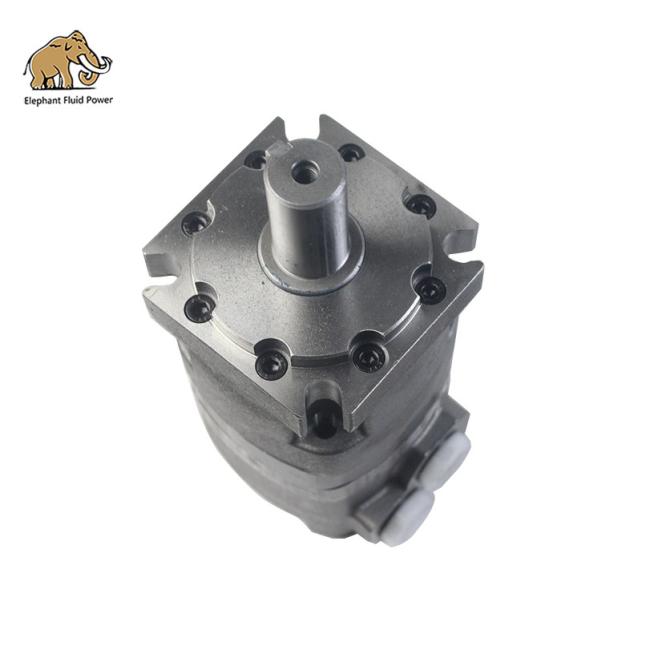

Eaton Char-Lynn 4000 Series Hydraulic Motor 109-1102 1091102
New Eaton Char-Lynn 4000 Series Hydraulic motor 109-1102 1091102
Appliion: Other: Mowing, Snow Removal, Sprayer, Trencher, Wood Products
Brake type: Hydraulic
flow options: .4375-20 UNF-2B SAE O-Ring Port With Check Valve
Design code11: 6
Displacement: 162.2 cubic centimetre per revolution
Eccn: EAR99
Flow rate12: 95 litre per minute
Geroler options: Standard
Icc2: Low-Speed Gerotor/Geroler
Intermittent pressure: 310 bar
Maximum speed: 582 revolutions per minute
Model Code: M04099AB01AB02000000000000000F
Mounting Type: Standard, 4 Bolt; 101.60 [4.000] Pilot Dia. 14.7 [.58] Slots On 127.00 [5.000] Dia. Bolt Circle. (SAE B)
Output shaft type: Straight
Port type: 1.0625-12 UN-2B SAE O-Ring Ports - Staggered Ports
Product height: 5.84
Product height uom: inch
Product length: 11.36
Product length uom: inch
Product material: Cast Iron
Product trade name: 4000 Series
Product weight: 40
Product weight uom: pound
Product width: 5.84
Product width uom: inch
Recommended system working temperature: -34°C to 82°C
Seal options: Standard
Sub brand: Char-Lynn
Torque: 485 newton metre
| 109-110 | 109-1101 |
| 109-1102 | 109-1106 |
| 109-1114-AFT | 109-1115 |
| 109-1116-AFT | 109-1117-AFT |
| 109-1118-AFT | 109-1119-AFT |
| 109-1120-AFT | 109-1212-AFT |
| 109-1225-AFT | 109-1492-AFT |
| 109-1515-AFT |
