Concrete Pump Maintain Repair Parts SPV23 PV23 Hydraulic Pump Factory Price OEM Quality
Price:
More favorable price
MOQ:
1 set
Delivery Time:
3-5 days
Brand:
Elephant Fluid Power
Product Description

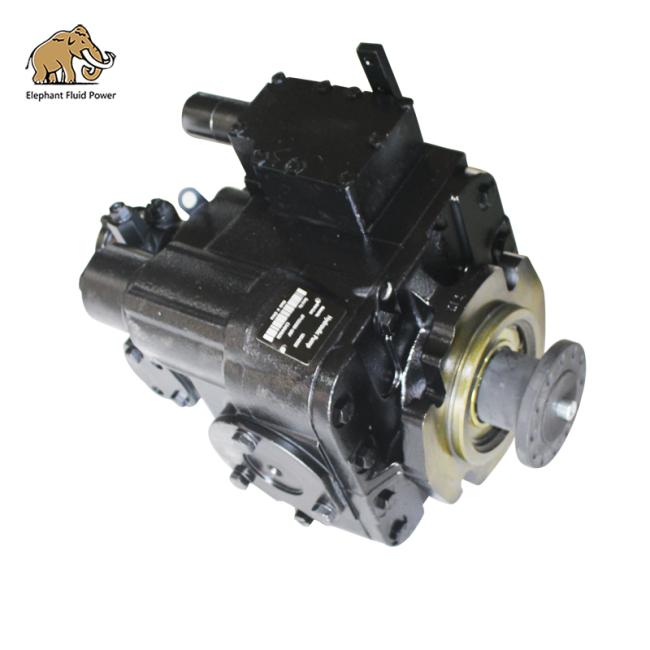

Concrete Pump Maintain Repair Parts SPV23 PV23 Hydraulic Pump Factory Price OEM Quality
Elephant fluid power Co.,ltd manufactures Concrete Pump Maintain Repair Parts SPV23 PV23 Hydraulic Pump Factory Price OEM Quality,
good quality,competitive price,one year warranty,fast lead time.
Technical Data:
Nominal pressure 210 bars, Maximum pressure 350 bars.
The Sauer PV axial piston variable displacement pumps, Series 20, are of swash plate construction with variable flow capability suitable for hydrostatic transmissions with closed circuit. The flow rate is proportional to the pumps driven speed displacement, which, in turn, is determined by the swash plate angle. The latter is infinitely adjustable between zero and maximum displacement. Flow direction is reserved by titling the swash plate to the opposite side of the neutral or zero displacement position. These units and parts are fit, form and function replacements for Sauer-Sundstrand series 20 components.
- Suitable for a variety of appliCAATions
- Multiple displacements and options available
- 8 different frame sizes
- Engineered to provide a long service life and reliability
- Fixed displacement motor can be operated in either direction of rotation
- Multiple drive shaft options and control options
- Heavy duty bearings and shafts
- Easily serviceable
- Replacement parts also available
- Direct replacements for Sauer-Sundstrand
The Sauer PV axial piston variable displacement pumps, Series 20, are of swash plate construction with variable flow capability suitable for hydrostatic transmissions with closed circuit. The flow rate is proportional to the pumps driven speed displacement, which, in turn, is determined by the swash plate angle. The latter is infinitely adjustable between zero and maximum displacement. Flow direction is reserved by titling the swash plate to the opposite side of the neutral or zero displacement position. These units and parts are fit, form and function replacements for Sauer-Sundstrand series 20 components.
- Suitable for a variety of appliCAATions
- Multiple displacements and options available
- 8 different frame sizes
- Engineered to provide a long service life and reliability
- Fixed displacement motor can be operated in either direction of rotation
- Multiple drive shaft options and control options
- Heavy duty bearings and shafts
- Easily serviceable
- Replacement parts also available
- Direct replacements for Sauer-Sundstrand
Table of Values:
| Size | Dimension | Sauer-DANFOSS PV pump | |||||||
| PV20 | PV21 | PV22 | PV23 | PV24 | PV25 | PV26 | PV27 | ||
| Max. displacement | cm3 | 33,3 | 51,6 | 69,8 | 89,0 | 118,7 | 165,8 | 227,3 | 333,7 |
| Max. flow | dm3min-1 | 119,5 | 159,9 | 196,1 | 230,5 | 278,9 | 348,1 | 429,59 | 557,2 |
| 4 | 6 | 4 | 1 | 4 | 8 | 8 | |||
| Charge pump | cm3 | 12,3 | 12,3 | 18,03 | 18,03 | 18,8 | 32,8 | 32,8 | 65,5 |
| Max. pressure | MPa | 35 | |||||||
| Nominal pressure | MPa | 21 | |||||||
| Max. pressure of control | MPa | 3,5 | |||||||
| Charge pressure | MPa | 0,8 - 2,0 | |||||||
| Max. pressure in | MPa | 0,25 continuous 0,5 intermittent | |||||||
| Maximum speed + | min-1 | 3590 | 3100 | 2810 | 2590 | 2350 | 2100 | 1890 | 1670 |
| Minimum speed | min-1 | 500 | |||||||
| Nominal speed | min-1 | 1500 | |||||||
| Kinematic viscosity range of working fluid - starting - operating - optimum |
1000 12 - 600 25 - 35 |
||||||||
| mm2s-1 | |||||||||
| Kind of working fluid | mineral oil | ||||||||
| Operating temperature | oC | - 40 to + 50 | |||||||
| Max. temperature of working fluid in tank | oC | 80 | |||||||
| Purity of working fluid | µm | 10 | |||||||
| Direction of shaft rotation | clockwise or counter clockwise | ||||||||
| Maximum swash plate angle | o | ± 18 o | |||||||
| Weight | kg | 45 | 55 | 63 | 78 | 124 | 164 | 212 | 270 |
We,Elephant Fluid Power can supply hydraulic pumps,hydraulic motors for concrete pump,concrete mixer truck and excavator ,good quality,fast lead time,one year warranty,is your best choice for hydraulic products.
Our main products models :
| Rexroth | A2F12/23/28/55/80/107/160/200/225/250/335/500 |
| A2FO10/12/16/23/28/32/45/56/63/80/90/107/125/160/180/200/250/500 | |
| A7V28/55/80/107/160/225/250/355/500/1000 | |
| A6VM(A7VO)/12/28/55/80/107/160/200/250/355/500 | |
| A4VSO45/71/125/180/250/500/1000 | |
| A4V40/56/71 | |
| A4VG28/40/45/50/56/71/90/125/140/180/250 | |
| A4VTG71/90 | |
| A10VSO10/16/18/28/45/63/71/85/100/140 | |
| A10VG18/28/45/63 | |
| A11VO60/75/95/130/145/160/190/250/260 | |
| Kawasaki | K3SP36C |
| K3V63DT/112DT/140DT/180DT/280DT | |
| K3VL28/45/60/80/112/140/200 | |
| K3VG63/112/180/280 | |
| K7V63/100 | |
| K7VG180/265 | |
| K5V80/140/160/200 | |
| NV45/50/60/64/70/80/84/90/111/120/137/172/210/237/270 | |
| NX15 | |
| NVK45 | |
| KVC925/930/932 | |
| M2X55/63/96/120/128/146/150/170/210 | |
| M5X130/150/173/180/500 | |
| MX50/80/150/173/200/250/450/500/530/750 | |
| KAYABA | MAG150/170 |
| KYB87 | |
| MSG18P/27P/44P/50P | |
| MSF series | |
| Komatsuu | HPV 35/55/90/160(PC60/120/200/220/300-3/5)PC400/PC650 |
| Libherr | LPVD 35/45/64/75/90/100/125/140/165/225/250 |
| FMV075/100 | |
| LMF(V)45/64/75/90/100/125/140 | |
| Toshiba | PVB80/92 |
| PVC80/90 | |
| SG 015/02/025/04/08/12/15/17/20/25 | |
| Linder | HPV55/75/105/135/165/210/280 |
| HPR75/90/100/130/160 | |
| MPR28/45/63/71 | |
| HMR75/105/135/165 | |
| HMF28/35/50/ | |
| BPV35/50/70/100/200 | |
| B2PV35/50/75/105/140/186 | |
| BMF35/55/75/105/140/186/260 | |
| BMV35/55/75/105/135 | |
| BPR55/75/105/140/186/260 | |
| Sauer | PV90R(L)(M)030/42/55/75/100/130/180/250 |
| PV42-28/41/51 | |
| SPV15/18 | |
| KRR(LRR)025C/030D/038C/045D | |
| MR(MS)070/089/227/334 | |
| Eaton | 3321/3331 |
| 4621/4631 | |
| 5421/5431 | |
| 78461/78462 | |
| Vicker | PVE12/21/45 |
| TA19/MFE19 | |
| PVM 018/020/045/050/057/063/074/081/098/106/131/141 | |
| PVH 57/74/98/131/141 | |
| PVB 5/6/10/15/20/29/45/90 | |
| Yuken | A10/16/22/37/40/45/56/70/90/100/125/145/220 |
| A3H16/37/56/71/100/145/180 | |
| Parker | PVP16/23/33/41/48/60/76/100/140 |
| PV 016/020/023/028/032/040/046/063/080/092/140/180/270 | |
| P2/3-060/075/105/145 | |
| PAVC 33/38/65/100 | |
| Hitachi | HPV050/102/105/118/135 |
| HMGC16/32/48 | |
| HMGF35/36/38/57 | |
| Tokiwa | MKV23/33 |
| Uchida | A10VD17/23/28/40/43/71 |
| AP2D12/14/18/21/25/28/36/38/42 | |
| A8VO55/59/80/86/107/115/172 | |
| Nachi | YC35-6 |
| PVD-2B-32/34/36/38/40/42/45/50 | |
| PVD-3B-54/56/60/66 | |
| PZ-6B-180/220 | |
| PVK-2B-50/505 | |
| PZ-4B-100 | |
| PVD-00B-14/16P | |
| PVD-1B-23/28/32/34 | |
| Hawe | V30D95/140/250 |
| V60 | |
| Italy Sam | HCV50/70/90/100/125 |
| H1V55/75/108/160/226 | |
| H2V55/75/108/160/226 | |
| H1C55/75/108/1 |
FAQ
Questions you maybe inquiry
Q1.What's the appliCAATion for pump?
Construction equipment Steel factory or Power plant Industrial equipment Related hydraulic system
Q2.What about the MOQ?
MOQ:1~300 pcs.
Q3.Are you manufacturer? And what's the delivery time?
Yes, we are manufacturer and have our own factory. Generally, its in stock for common models, 25-30 days will be finished and sent to customer in time.
Q4.If we don't find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, We will check whether we can make it.
Q5.How about the inspection and Guarantee of products?
We promise: all products are tested before ship, to confirm it will be working and in good conditions when customers get. Also, we offer 12-month guarantee, if it doesn't work due to quality issue in the period, we will send spares to repair for free.
Q6. What about your after-sale service?
If there is any question in use, please talk with your sales manager at any time, so we will know your problems are and help to solve.
