Mixer Truck Repair Parts A2FM28 Rexroth Piston Motor Hydraulic Repar Kits
Price:
Elephant Fluid Power
MOQ:
1 Set
Delivery Time:
5-8 days
Brand:
Elephant Fluid Power
Product Description

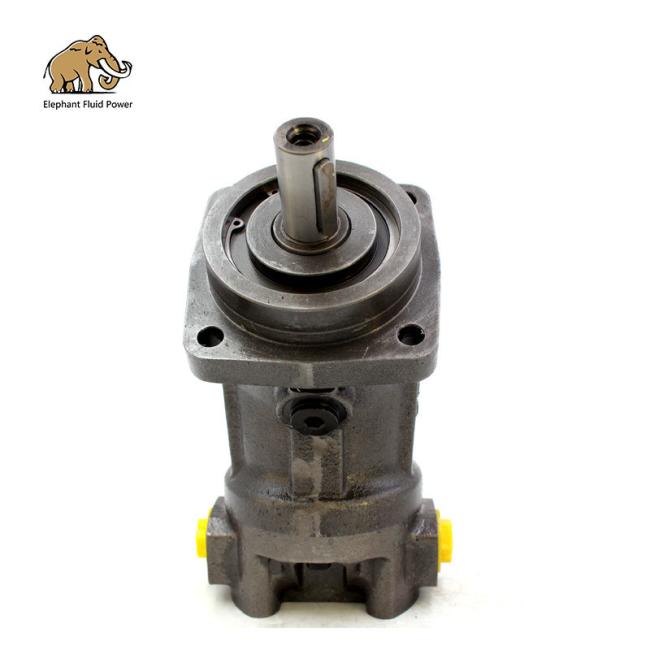

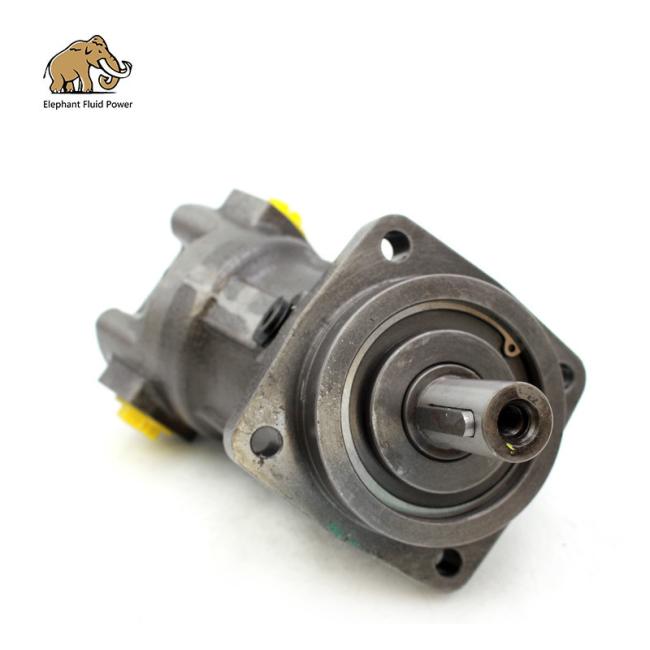

Mixer Truck Repair Parts A2fm28 Rexroth Piston Motor Hydraulic
Elephant Fluid Power can provide rexroth hydraulic piston motor A2FM28 for concrete pump manufature,maintain,repair and rebuild,we have been a supplier for world famous brand,our quality is equivalent as the original one,best price,fast delivery time,good aftersales serveces,and technical support.
Technical parameters:
| Rexroth A2FM motor | A2FM5 | A2FM10 | A2FM12 | A2FM16 | A2FM23 | A2FM28 | A2FM32 | A2FM45 | |||
| Displacement | V g | cm³ | 4.93 | 10.3 | 12 | 16 | 22.9 | 28.1 | 32 | 45.6 | |
| Speed | nnom | rpm | 5600 | 3150 | 3150 | 3150 | 2500 | 2500 | 2500 | 2240 | |
| Flow | at nnom | qV | l/min | 27.6 | 32.4 | 37.8 | 50 | 57 | 70 | 80 | 102 |
| Power | Δp = 315 bar | P | kW | 14.5 | - | - | - | - | - | - | - |
| Δ p = 400 bar | P | kW | - | 21.6 | 25 | 34 | 38 | 47 | 53 | 68 | |
| Torque | Δp = 315 bar | T | Nm | 24.7 | - | - | - | - | - | - | - |
| Δ p = 400 bar | T | Nm | - | 65 | 76 | 101 | 145 | 178 | 203 | 290 | |
| Weight (approx.) | m | kg | 2.5 | 6 | 6 | 6 | 9.5 | 9.5 | 9.5 | 13.5 | |
| Rexroth A2FM motor | A2FM56 | A2FM63 | A2FM80 | A2FM90 | A2FM107 | A2FM125 | A2FM160 | A2FM180 | |||
| Displacement | V g | cm³ | 56.1 | 63 | 80.4 | 90 | 106.7 | 125 | 160.4 | 180 | |
| Speed | nnom | rpm | 2000 | 2000 | 1800 | 1800 | 1600 | 1600 | 1450 | 1450 | |
| Flow | at nnom | qV | l/min | 112 | 126 | 144 | 162 | 170 | 200 | 232 | 261 |
| Power | Δ p = 400 bar | P | kW | 75 | 84 | 96 | 108 | 114 | 133 | 155 | 174 |
| Torque | Δ p = 400 bar | T | Nm | 356 | 400 | 511 | 572 | 678 | 795 | 1020 | 1145 |
| Weight (approx.) | m | kg | 18 | 18 | 23 | 23 | 32 | 32 | 45 | 45 | |
| Rexroth A2FM motor | A2FM200 | A2FM250 | A2FM355 | A2FM500 | A2FM710 | A2FM1000 | |||||
| Displacement | V g | cm³ | 200 | 250 | 355 | 500 | 710 | 1000 | |||
| Speed | nnom | rpm | 1550 | 1500 | 1320 | 1200 | 1200 | 950 | |||
| Flow | at nnom | qV | l/min | 310 | 375 | 469 | 600 | 826 | 950 | ||
| Power | Δ p = 350 bar | P | kW | - | 219 | 273 | 350 | 497 | 554 | ||
| Δ p = 400 bar | P | kW | 207 | - | - | - | - | - | |||
| Torque | Δ p = 350 bar | T | Nm | - | 1393 | 1978 | 2785 | 3955 | 5570 | ||
| Δ p = 400 bar | T | Nm | 1272 | - | - | - | - | - | |||
| Weight (approx.) | m | kg | 66 | 73 | 110 | 155 | 322 | 336 | |||
Appliion:

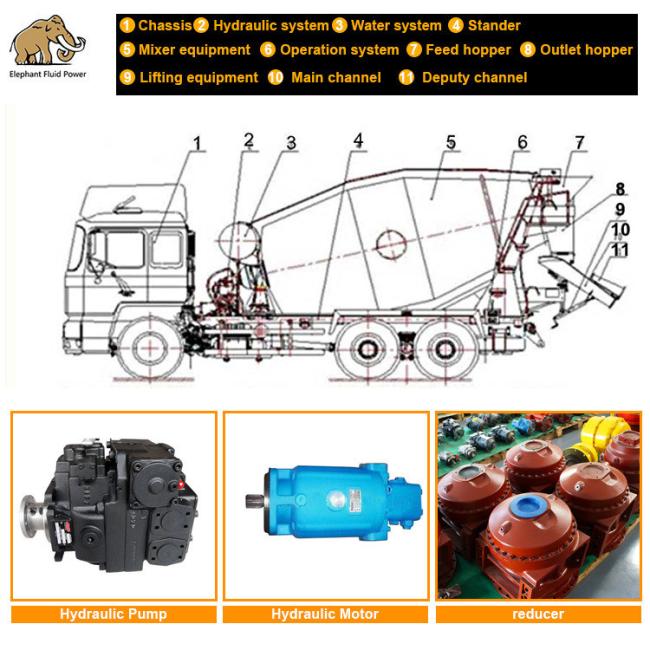

Concrete Truck Mixer, Concrete Pump truck ,Tractor
Advantage:
| Even if the operation is reversed, there is maximum reliability |
| Low noise |
| Cavitation resistance to key fluids |
| Ideal for variable speed drive systems |
| Long service life, even with cyclic loading |
| Heavy-duty material, so it can be used in harsh environments and various fluids |
Why chose us:
Quality : High quality
Price : Very competitive
Servicvs : The best
Delivery : Fast delivery
Competitive Advantage:
| · Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries |
| · 100% replace with Original |
| · Fast delivery time |
| · Top quality with good price |
| · Professional technicians and After-sales service |
Our other main business:

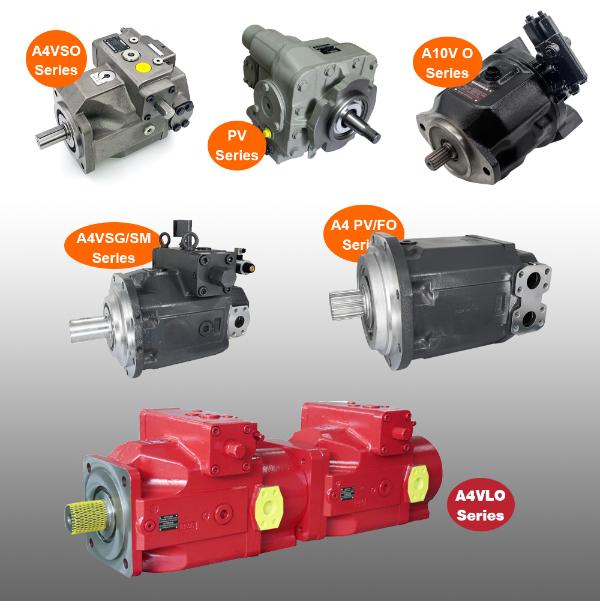

| Hydraulic piston pump and spare parts | Hydraulic vane pump and spare parts |
| Hydraulic piston motor and spare parts | Hydraulic orbital motor |
| Hydraulic steering unit | Hydraulic gear pump |
| Directional control valve | |
