Factory Direct Sales Waste Tire Recycling Line /Rubber Powder Production Line
Factory Direct Sales Waste Tire Recycling Line /Rubber Powder Production Line

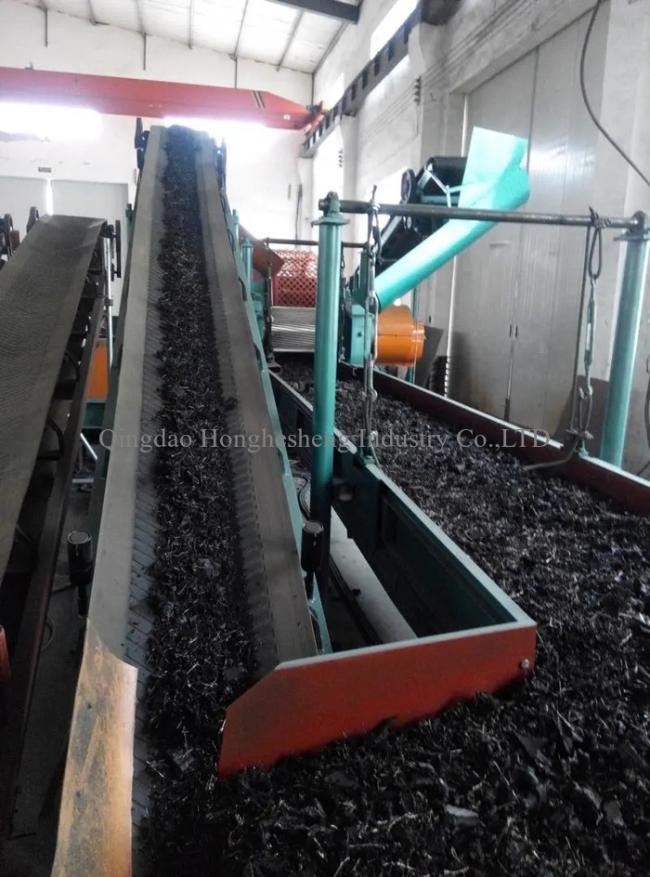

Process flow
waste tire→cutting diameter of hub→cutting strips→cutting blocks→separate steel wire→crush rubber blocks→making powder→magnetic separation→final products(rubber powder)
1. Ring cutter
Function: will whole tire cutting into tire crown, the side of the tire and inner circle
| Power | Blades rotating speed | Adapt tire | Productivity | Dimensions | Weight |
| 3kw | 15R/MIN | 650-1200 | 30strips | 1150*850*1200 |
0.5t |
2. Strips cutter
Function: various tire, glue, glue board piece cut into long strips
| Power | Productivity | diameter | Output size | Equipment size | weight |
| 4kw | 20strips/h | 650-1200 | 25-55 | 1230*650*1580 |
0.8t |
3. Rim cutter
Functions: this machine should cut machine tyres, used for supporting the use of the strip cut into 3-5CM glue pieces.
| Power | Productivity | Output size | Equipment size | Weight |
| 7.5kw | 0.8-1.0t/h | 35*35 | 780*550*1210 |
0.8t |
4. Steel wire separator
Function: tires circle wire centrifuges, mouth will tire of coarse steel mouth circle parts with rubber effective separation
5.Rubber crusher
| Type&Specification | XKP-400 | XKP-450 | XKP-560 |
| Feeding size | 3.5CM | 3.5CM | 3.5CM |
| Discharging size | 10—30 mesh powder | 10--30 mesh powder | 10--30 mesh powder |
| Rubber crusher throughput(kg/h) | 100--150kg | 250—300kg | 350—420kg |
| Motor power(kw) | 45 | 60 | 75 |
| Outside measurement(m) | 4.1×1.8×1.9 | 4.4×1.9×1.9 | 5.5×2.2×2.1 |
| Weight(t) | 7.5 | 11 |
19 |
Crush the rubber block into rubber powder and granule .we can produce the no-standard production as your requirement .
