XK400 400*1000mm Open Twin Roll Mill PVC EVA Synthetic Rubber Mixing Equipment
Price:
USD25000-6000/SET
MOQ:
1 SET
Delivery Time:
Negotiable
Brand:
honghesheng
Product Description
Mixing Mill Xk-400/PVC EVA Synthetic Rubber Open Twin Roll Mill Mixing Equipment
rubber mixing mill machine
Rubber mixing mill is used for mixing and kneading raw rubber, synthetic rubber, thermoplastics or E.V.A.with chemicals into final materials. The final materials can be fed to calender, hot presses or other processing machine for making rubber or plastic products
Technical parameters:
| Version | XK-160 | XK-250 | XK-300 | XK-400 | XK-450 | XK-560 | XK-660 |
| Roll diameter(mm) | 160 | 250 | 300 | 400 | 450 | 560 | 660 |
| Working length of rolls(mm) | 320 | 620 | 750 | 1000 | 1200 | 1530 | 2130 |
| Front roll surface speed(m/min) | 8.99 | 15.3 | 15.1 | 18.65 | 24.32 | 27.72 | 28.6 |
| Friction ratio | 1:1.35 | 1:1.1 | 1:1.27 | 1:1.27 | 1:1.27 | 1:1.2 | 1:1.24 |
| Max.nip (mm) | 4 | 8 | 8 | 10 | 15 | 15 | 15 |
| Capacity per.batch (kg) | 1-2 | 10-15 | 15-20 | 18-35 | 25-50 | 35-50 | 165 |
| Motor power (kw) | 5.5 | 18.5 | 22 | 37 | 55 | 90 | 245 |
| Overall dimensions(mm) |
1160*920 *1370 |
3120*1322 *1500 |
3580*1550 *1695 |
4350*1850 *1780 |
5670*2390 *1670 |
5845*2284 *1978 |
7465*3662 *2080 |
| Weight(kg) | 1000 | 4000 | 5200 | 7600 | 12000 | 23000 | 49000 |

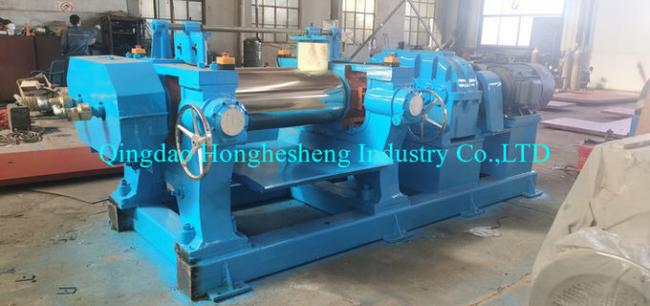

XK-400 open mixing mill
