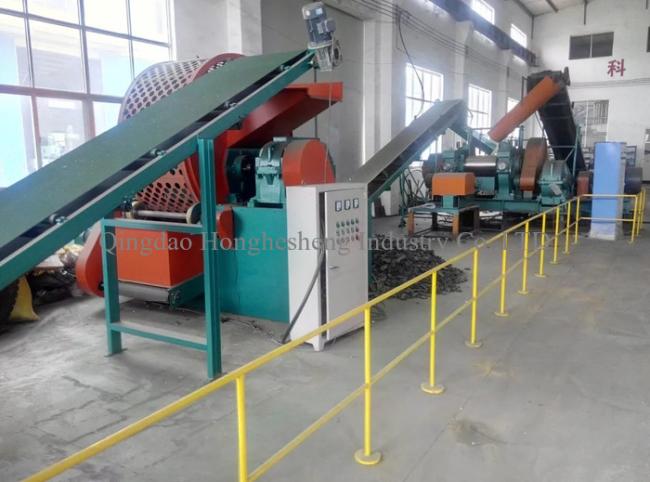

Waste / Used Rubber Tire Recyclable Production Line For Super Powder
1. GENERAL
This production line including main machine and accessorial equipment, it is used for recycling waste tyre, the final product is rubber powder,steel and fiber.

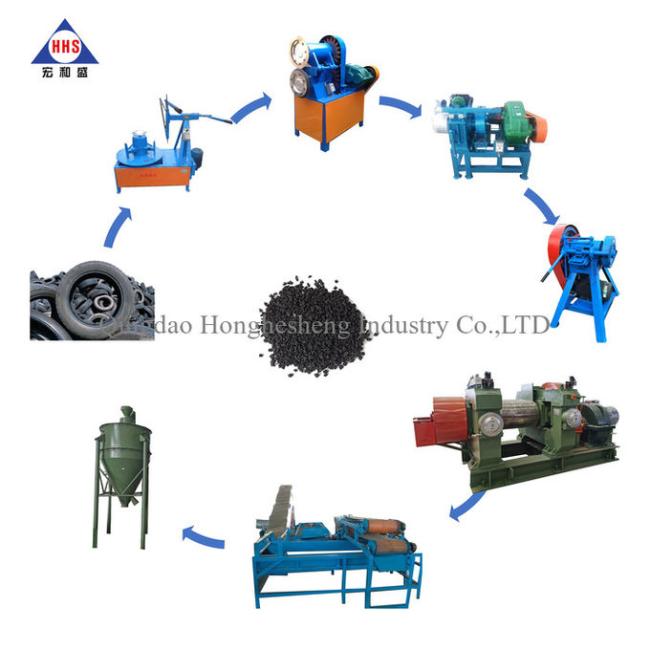

2.This production line including the below machines:
| No | Name | model |
| 1 | Ring cutter | QQJ-20 |
| 2 | Loop machine | YQJ-285 |
| 3 | Strip cutter | QTJ-380 |
| 4 | Block cutter | QKJ-45 |
| 5 | Tyre crusher | XKP450 |
| 6 | Big conveyor equipment | BCL-8 |
| 7 | Small conveyor equipment | BCL-3 |
| 8 | Big Magnet separator | BMS22 |
| 9 | Small Magnet separator | SMS-1 |
| 10 | Big Shaking screen | BSS-8 |
| 11 | Small Shaking screen | SSS-3 |
| 12 | Fiber separator | FS110 |
3.Details of each machine:
1) Ring cutter:
| Item | Specification |
| Motor power | 5.5 |
| Speed of main screw | 46.8 r/min |
| MAX Diameter of tyre | 1200mm |
| Dimension | 1100*900*1700mm |
Purpose :To cut the steel ring from the tyre
2). strip cutter
| Name | Parameter |
| Motor Power | 5.5 |
| Disc Diameter | 380 |
| Rotate Speed | 18.4 |
| Dimension | 1290*870*1550 |
| Purpose: To cut the old tyre intostrip | |

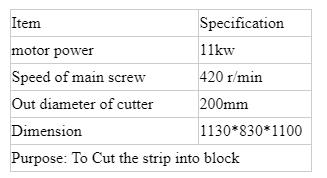

3). block cutter
4) tire crusher (bearing bush) Crush the rubber block into rubber powder and granule
5) Big conveyor equipment To conveyor the rubber block into crusher
6) Fiber separator
Model :FS110
capacity:200-500kg/h
Motor power:5.5kw
dimension:1.5*1.5*3.4(m)
weight:about 1.5T
