New design frame type vulcanizing press for curing rubber product with high quality in factory price
parameters
| Model | Total Pressure(MN) | Daylight(mm) | Working Layer | Piston Stroke(mm) | Motor Power(KW) |
Over Diameter (L*W*H) (mm) |
| XLB-600*600*2 | 1.00 | 125 | 2 | 250 | 2.2 | 1880× 820 × 1680 |
| XLB-750*850*4 | 1.60 | 125 | 4 | 500 | 3 | 1730× 930 × 2460 |
| XLB-900*900*2 | 2.50 | 200 | 2 | 400 | 4 | 2345× 960 × 1385 |
| XLB-1200*1200*1 | 3.15 | 300 | 1 | 300 | 4 | 2800× 1300 × 2300 |
| XLB-1300*2000*1 | 5.60 | 400 | 1 | 400 | 8 | 2000× 1860 × 2500 |
| XLB-1500*1500*1 | 8.00 | 800 | 1 | 800 | 16.5 | 2200× 2200 × 4300 |
| XLB-2000*2000*1 | 20.00 | 400 | 1 | 400 | 11 | 3600× 3000 × 3300 |

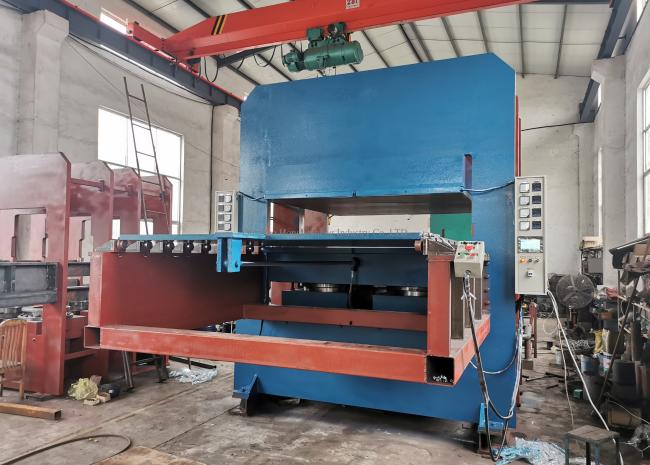

Rubber vulcanizer is used for vulcanizing all kinds of rubber and plastic mould products, and non-mould products. Being frame type, the machine is different from the column type , it is allowed to install larger diameter hydraulic cylinder, reducing the quantity of cylinders, with simple structure, and little maintaince wok. The frame can bear more stress and it has cheap price, nice surface, easy to operate.
Frame vulcanizing pree lightspots display:
- Electrical control system:
Complete the perfect control system (including wire and cable and safety protection devices, etc.),Use automatic time relay,can achieve Automatic close mold,exhaust,stuffy,Vulcanization time, supplement pressure,open mold etc working process, also the automatic control and hand control can be switched easily.
