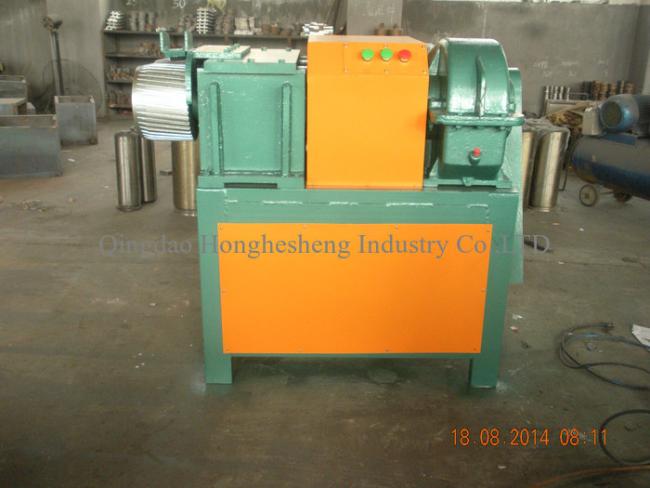

Waste Tyre Recycling Plant/waste tire Block Cutter/ Used Tire Cutting Machine
Price:
USD:850-60000/SET
MOQ:
1 SET
Delivery Time:
30 working days
Brand:
honghesheng
Product Description
Detailed Product Description
1. Mainly used for the cutting of the tyre
2. High Capacity
3. High hardness &abrasion resistance
4. CE/SGS/ISO9001
1. Ring cutter
| Item | Specification |
| motor power | 5.5 |
| Speed of main screw | 46.8 r/min |
| MAX Diameter of tyre | 1200mm |
| Dimension | 1100*900*1700mm |
|
Purpose :To cut the steel ring from the tyre
|
|
2.Strips cutter
| Item | Parameter |
| Motor Power | 5.5kw |
| Disc Diameter | 380mm |
| Rotate Speed | 18.4r/min |
| Dimension | 1290*870*1550mm |
| Purpose: To cut the old tyre intostrip | |
3.Block cutter
| Item | Specification |
| motor power | 11kw |
| Speed of main screw | 420 r/min |
| Out diameter of cutter | 200mm |
| Dimension | 1130*830*1100mm |
| Purpose: To Cut the strip into block | |
4.Bead wire remover
| Item | Specification |
| Motor power | 15 KW |
| Linear speed of front roller | 15.5 m/min |
| Ratio of speed | 1.1 |
| Dimension | 1520*1150*12101mm |
| Purpose:To Separate the steel ring from the rubber after 1 step. | |
N
