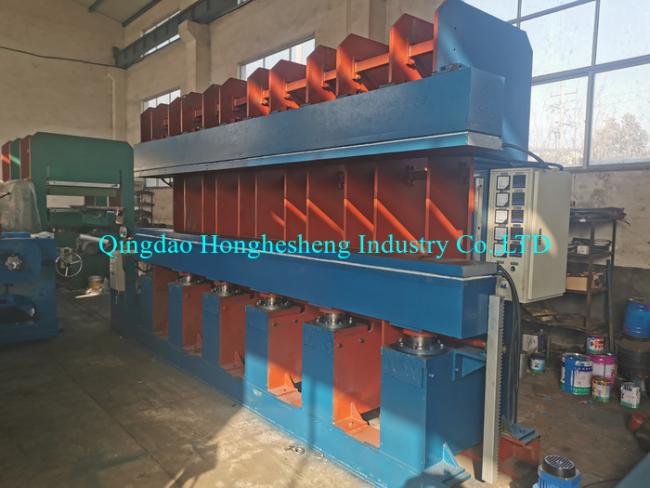

C Tyre Tire Tread Rubber Plate Vulcanizing Press Machine 200 Ton 1000*1000mm
C Tyre Tire Tread Press Machine/Rubber Vulcanizing Press
1. Product Application
about our products:
1. Easy operation and repair
2. The vulcanizing machine is mainly use to produce rubber pads, Each working layer equipped with two sets moulds, it can take turn vulcanization. Thereby improve production efficiency
3. the center distance in certain, allowed to install large diameter of hydraulic cylinder, which can reduce the hydraulic cylinder the amount, and the simple structure, maintenance is less.
4. the beam in the section of force is reasonable, the modulus needed than live in small, can reduce weight
5. manufacturing installation is simple, pipe configuration, whole hidden appearance tidy and beautiful. Box type flat-band plate vulcanizing machine single box board the lateral stiffness ratio of the poor, but because the mast frame type flat-band plate vulcanizing machine frame by frame board are a combination of multiple, so the machine has enough lateral stiffness.
2. Product Paramenters
|
Model
|
XLB-800*800
|
XLB-1000*1000
|
XLB-1200*1200
|
|
mold closing force
|
160 ton
|
200 ton
|
250 ton
|
|
plate size
|
800*800mm
|
1000*1000mm
|
1200*1200mm
|
|
quantity of cylinder
|
1 set
|
1 set
|
1 set
|
|
piston diameter
|
300mm
|
380mm
|
380mm
|
|
working layer
|
1
|
1
|
1
|
|
daylight
|
300mm
|
300mm
|
300mm
|
|
unit area pressure
|
2.5 Mpa
|
2.0Mpa
|
1.8Mpa
|
|
Main motor
|
3 kw
|
5.5 kw
|
8 kw
|
|
machine weight
|
about 4000 kg
|
about 5800kg
|
about 6800 kg
|
