600*800mm Blue White Rubber Vulcanizing Press Automatic Rubber Moulding Machine
♥ Qingdao HHS Cooperate Sincerely With You ♥
“ rubber vulcanizing press machine”
◊Features:
This machine is of small plate series vulcanizing machine, mainly used for rubber vulcanization, generally USES the pillar ,
compact structure, nice appearance, mould clamping force is big, each station on the template can heat 180 high temperature
(adjustable), lower plate can be temperature control in room temperature condition, form effective temperature difference; This machine with its unique double temperature station structure and high pressure characteristic adapted to all kinds of reflective material products such as trademark, pressing qualitative, etc.
◊Technical Data:
| Type |
XLB-D(Y)450*450*2/1.00 XLB-D(Y)600*600*2/1.00 |
XLB-D(Y)500*1000*1/1.00 XLB-D(Y)600*800*1/1.00 |
XLB-D(Y)750*850*1/1.60 XLB-D(Y)800*800*1/1.60
|
| Nominal molding power(MN) | 100 | 1.00 | 1.60 |
| Working layer number | 2 | 2/4 | 2 |
| Piston stroke(mm) | 300-500 | 300-500 | 300-500 |
| Plate Pressure (Mpa) | 4.94/2.78 | 2.00/2.08 | 2.51/2.50 |
| Main motor power(KW) | 2.2 | 2.2 | 2.2 |
| Plate clearance(mm) | 125-250 | 125-250 | 125-250 |
| Calefaction manner | Steam ecectricity | Steam ecectricity | Steam ecectricity |
| Configuration | Column Frame | Column Frame | Column Frame |
| Electric pipe heating power | 2.7/3.6 | 5.4/4.8 | 4.8/4.8 |

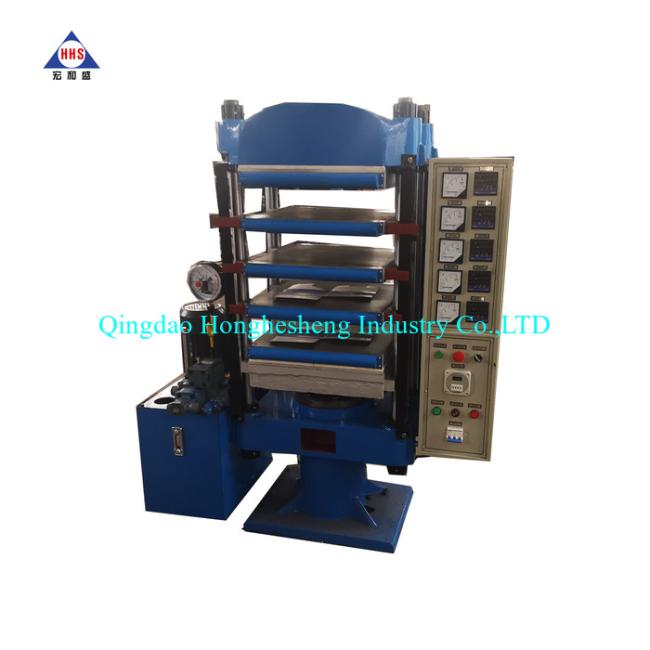

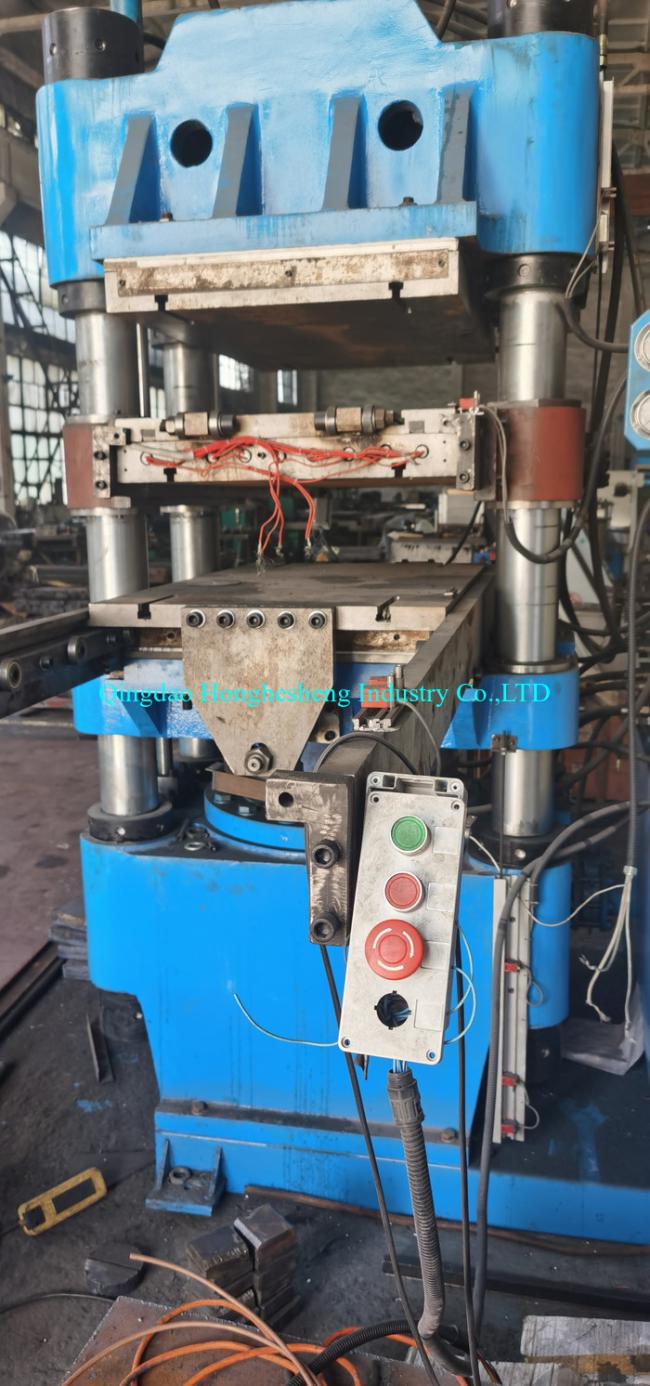

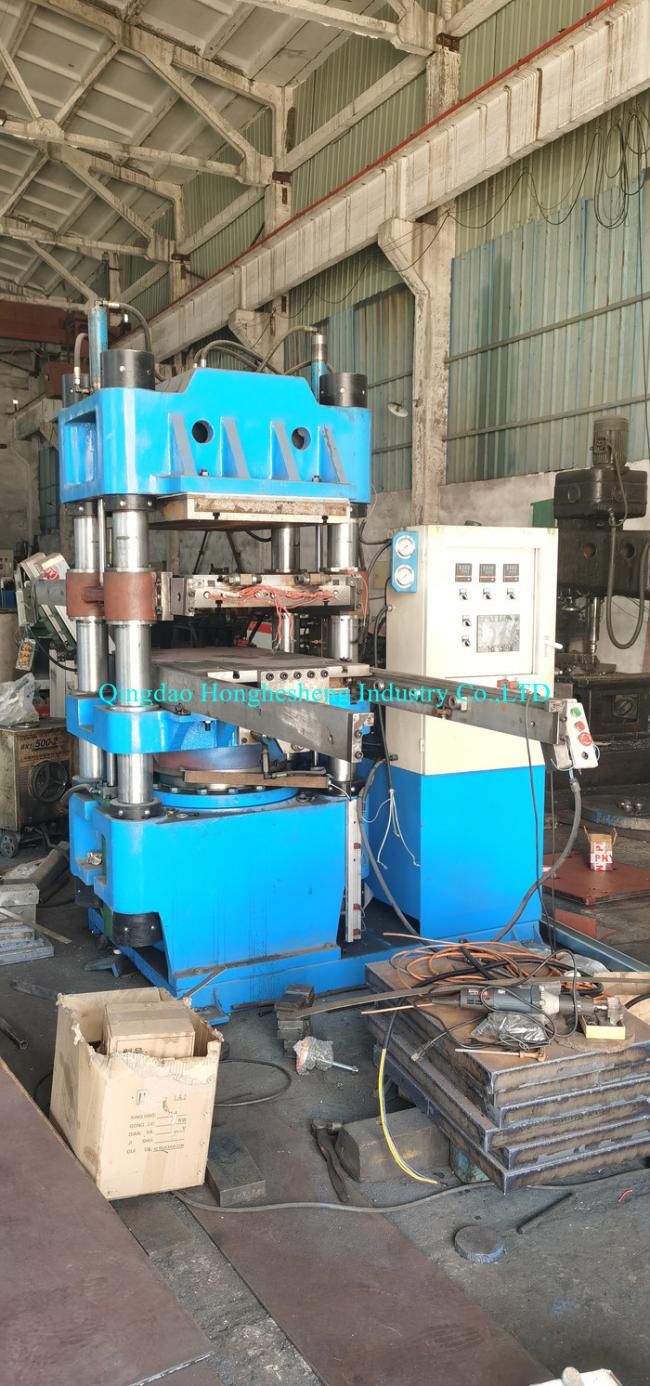

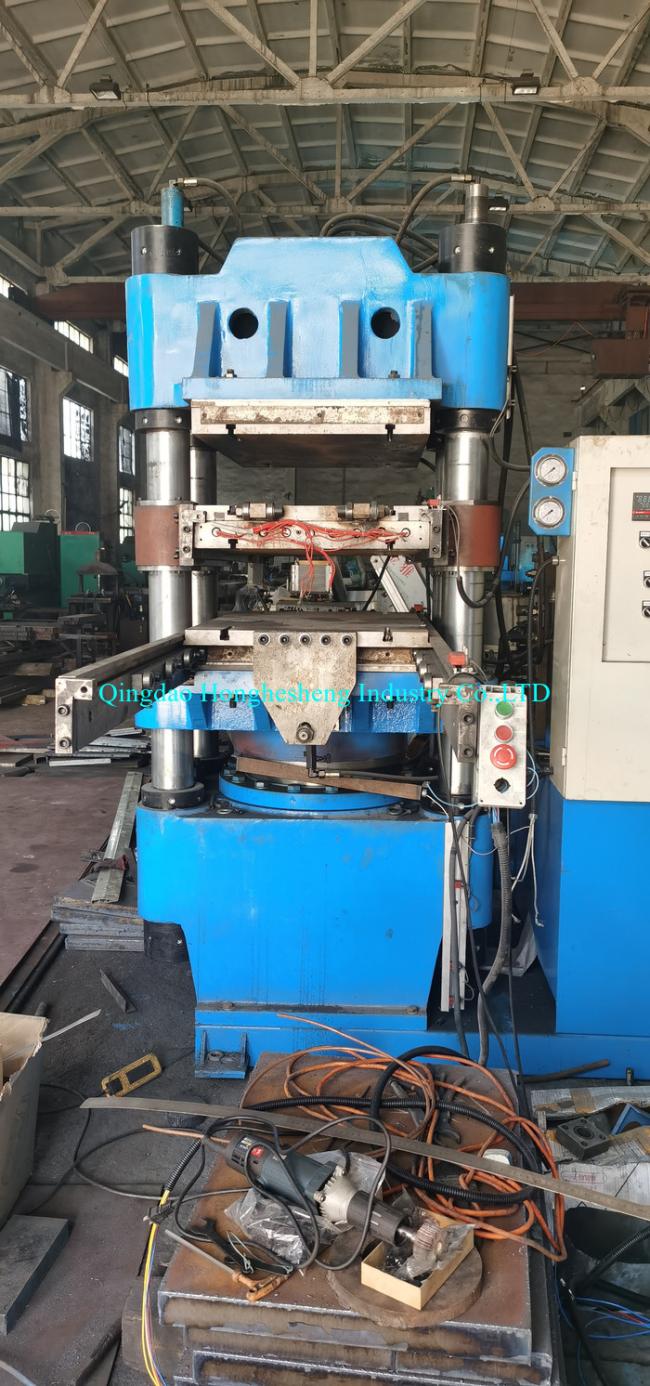

◊Machine Pictures:
◊Main Components:

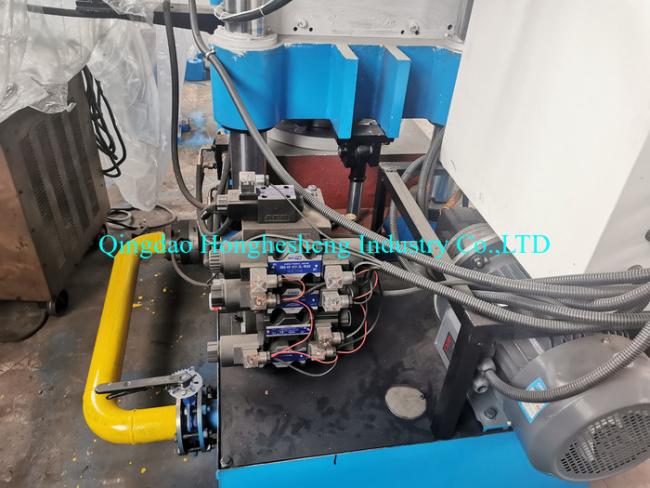

(1) Hydraulic Station:
(2) Electric control cabinet:
(3) The Piston:
(4) The Hot Plate:
◊Company Information:
(2) CE, ISO9001 certification;
(3) a one-year warranty and long-term technical support;
(4) supply of all kinds of rubber machinery:
