Electric Control Hydraulic Rubber Curing Press For Car Mat Making
Rubber curing press / Rubber car mat making machine / rubber plate vulcanizing press machine
Usage
1. rubber products processing line(tyres,shoes,handbags,latex gloves,sport balls,mousepad,
conveyors,rubber sheets&tiles,rubber band,seals,insulation boards,etc.,)
2. plastic runway and artificial grass production line
This machine is mainly used for vulcanizing flat type tape and plastic sheet,just as conveyor belts and rubber tiles. It belongs to the hydraulic machinery.
Structure Features
1. two kinds of heating method:steam and electric
2. three major components:the host ,the hydraulic system and electric control system
3. hot plate temperature uniformity and automatic control
4. high-precision temperature control makes good-quality products
5. pressure doen't drop,no leakage,low noise,high precision and flexible operation
We can design various size vulcanizing press, only please inform your detailed requirement, such as total pressure, plate size, working layers, working stroke etc.
Technical Parameters
| Type | 500*500*2 | 600*600*2 | 750*850*2 | 600*600*2 |
| Nominal clamp mould force MN | 0.8 | 1.0 | 1.6 | 2.0 |
| Piston size | 500*500 | 600*600 | 750*850 | 600*600 |
| Number of working layer | 2 | 2 | 2 | 2 |
| Piston diameter mm | ¢250 | ¢300 | ¢360 | ¢400 |
| Stroke of piston mm | 250 | 250 | 500 | 300 |
| Distance between hot plate mm | 125 | 125 | 250 | 150 |
| Unit area pressure of hot plate Mpa | 3.2 | 2.78 | 2.5 | 5.6 |
| Power KW | 2.2 | 2.2 | 3.0 | 3.0 |
| Overall size(L*W*H) mm | 1800*550*1600 | 2000*700*1700 | 2000*1000*1900 | 2550*960*2100 |
| Weight Kgs | 2000 | 2600 | 4300 | 5000 |
| Close mould speed mm/s | ≥12 | ≥12 | ≥12 | ≥12 |
| Open mould speed mm/s | ≥12 | ≥12 | ≥12 |
≥12 |

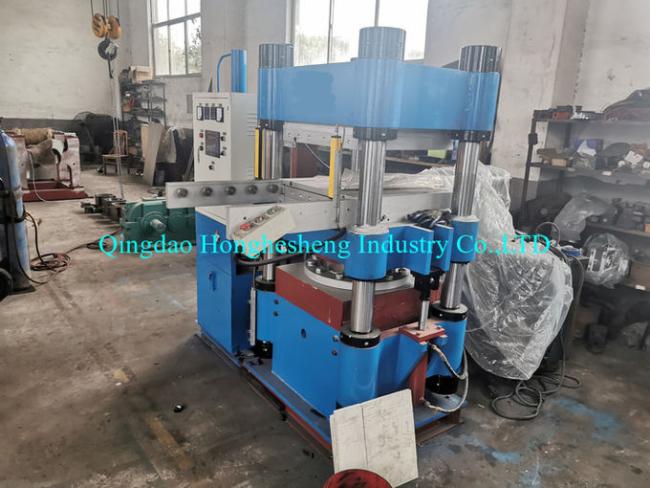

◊Machine Pictures:
◊related products:
◊Company Information:
(2) CE, ISO9001 certification;
(3) a one-year warranty and long-term technical support;
(4) supply of all kinds of rubber machinery: rubber press , rubber vulcanizing machine , rubber mixer , rubber refiner,rubber kneading machine,rubber injection moulding machines, vacuum hot press molding machine , hydraulic machine, rubber tableting machine,hydraulic tire curing machine, automatic tube curing machine, foam machine; conveyor belt production line, sidewall belt production line, molding line conveyor; cut plastic machine;
