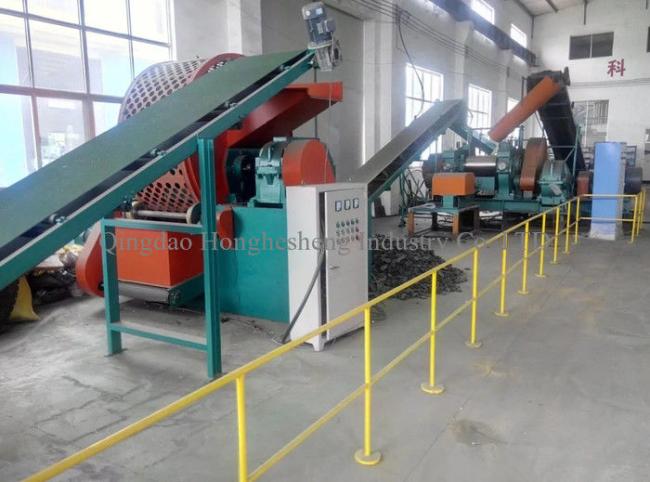

Rubber Tire Granules Recycle Waste Tire Shredder Production Line
Waste rubber powder production line consists of tire broken machine host and auxiliary machine two parts.Auxiliary equipment:Hook Wire Drawing Machine,Tire Cutter Machine(Optional according to tire size),Conveyor,Magnetic Separator Machine,and other components.
Waste Tire Shredder Production Line Rubber Tire Granules Recycle Machine Price Tyre Crusher
Two shaft shredders are specially designed for used tires, low speed, high torque operation minimize the noise and power consumption with high throughout rate. All the shredder blades thickness ranges from 25mm-152mm depending on type of tires, output,final product, the shredder can process OTR tires, big truck tires, passenger car tires at a rate of 1t-30t in one hour.
Features
The product is used for cutting whole tire to 50*50mm rubber block.
- Whole Scrap Tires Readuced to 2″-6″shreds
- Can process large amounts of input per hour
- Can be used to process various waste materials
- Can be configures width recirculatory accessory equipment
Technical Parameters
| Model | HHS-900 | HHS-1200 |
| Input size | Less than 900 | Less than 1200 |
| Discharge size | 50—300mm(adjustable) | 50—300mm(adjustable) |
| Motor power | 30*2 kw | 75*2 kw |
| Dimension | 3450*2100*2400mm | 4100*2730*3300mm |
| Amount of waste tire | 800-1500T/h | 2000-3800kg/h |
| Screen power | 1.5kw | 5.5kw |
| Main shaft speed | 19rpm | 22rpm |
| Screen speed | 4rpm | 25rpm |
| Number of blades | 18pcs, made of alloy steel, welded | 25pcs, made of alloy steel, welded |
| Gearbox | Harden gears, large torque | Harden gears, large torque |
| Weight | 5.8T | 15.6T |

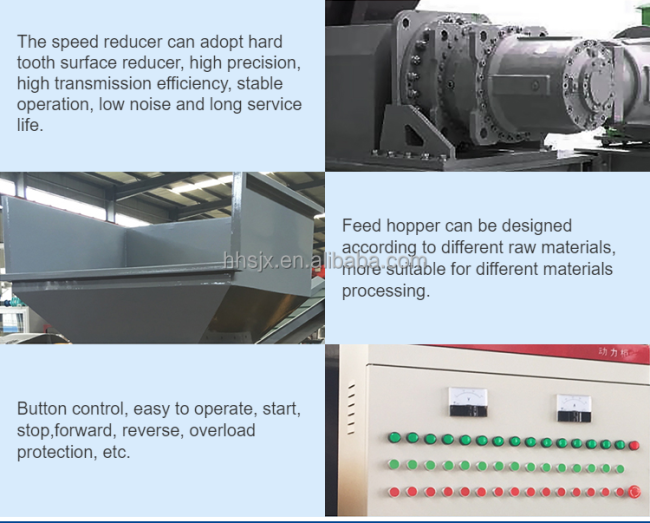

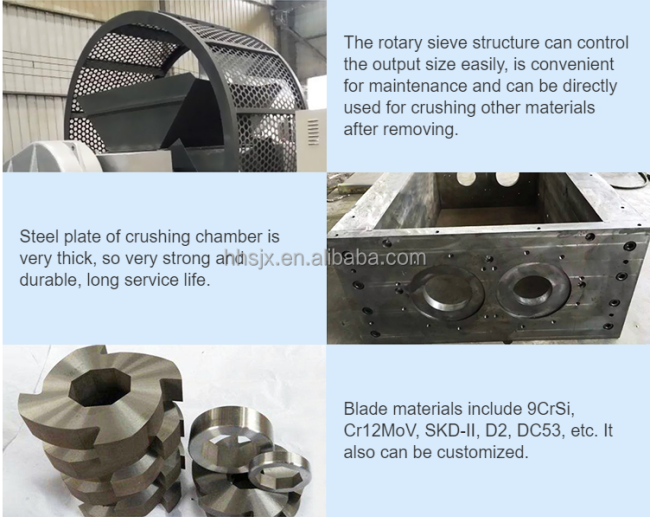

Detailed Pictures
