10g 8 PON GPON OLT
UT-King 8 PON Port Ftth GPON OLT 10g Uplink FTTH GEPON OLT Device
Description
GPON OLT 8PON(UT-GP8008) is a small-capacity cassette GPON OLT, meeting the requirements of ITU-T G.984/G.988 and relative standards of China Telecom/Unicom GPON, with super GPON access capacity, carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and flexible network mode. GPON OLT 8PON can be used with network management system so as to provide users with the comprehensive access and perfect solution.

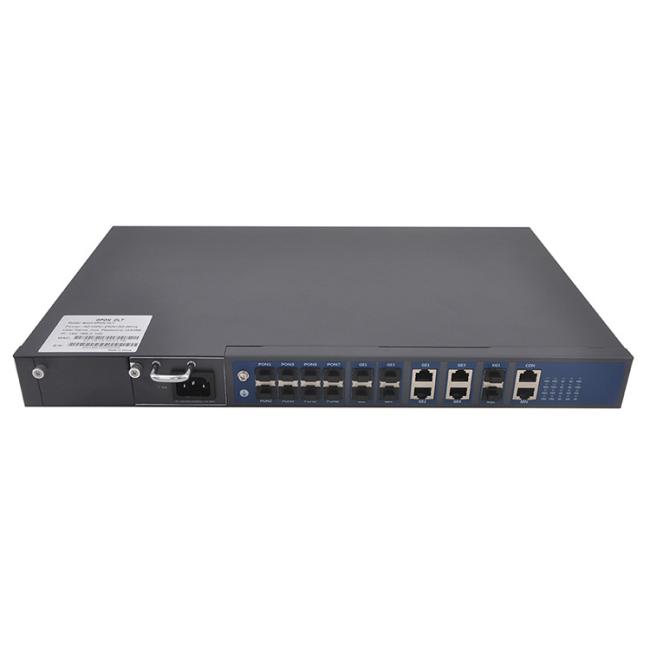

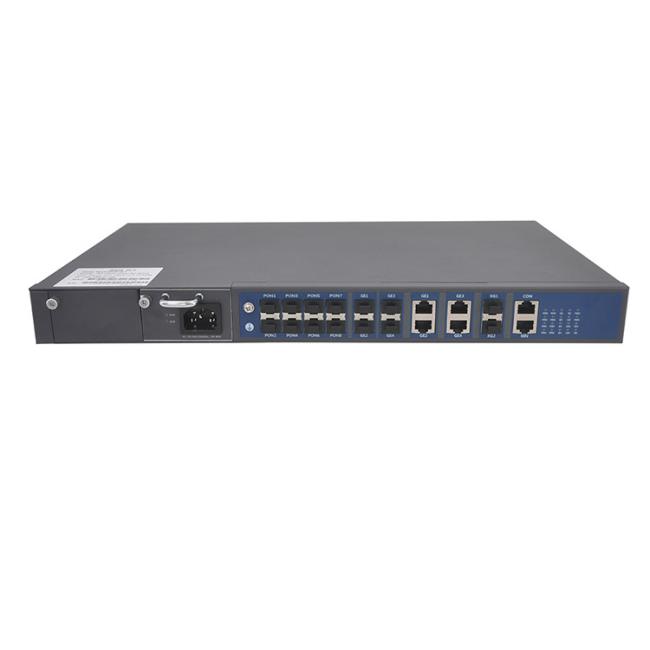

UT-GP8008 provides 8 * GPON port for downlink, 4 *GE combo port and 2* 10G SFP+ port for uplink. The height is only 1U for easy installation and space saving. It is suitable for Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things, etc.
Features
- Complies with ITU.G.984.x, provides comprehensive GPON network compatibility
- Downstream rates of up to 2.488Gbps and upstream rates up to 1.244Gbps
- Fiber access and gigabit port provide incredibly fast transfer speeds
- Supports OMCI remote management
Parameter
| Model No. | UT-GP8008 |
| Interface |
8*PON port; 4 *1.25G SFP and 4*GE COMBO port, 2 *10G SFP+ port for uplink |
| Chipset |
BCM68621(Broadcom)； BCM56465(Broadcom) |
| Data Rates & Wavelength |
Upstream:1.244Gbps, 1310nm Downstream: 2.488Gbps, 1490nm |
| Distance & Capacity | 0~ 20Km;1:128(max) |
| External Power Supply |
AC: input 100～240V 50/60Hz; DC: input 36V～75V; |
| Power Consumption | ≤90W |
| Dimensions (Length * Width * Height) | 440mm×44mm×300mm |
| Weight (Full-Loaded) | ≤7.5kg |
| Working temperature | -10°C～55°C |
| Storage temperature: | -40°C～70°C |
| Relative humidity: | 10%～90%, non-condensing |
