SC UPC FTTH GPON ONU Ont Optical Network Termination 1 Pon
UT-King FTTH 1ge Gpon Onu 1 Pon Port FTTX GPON ONT Optical Network Unit onu

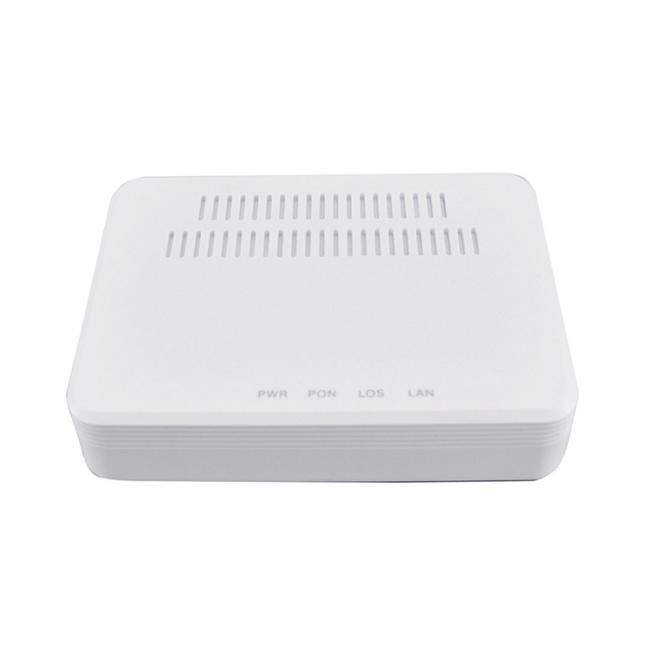

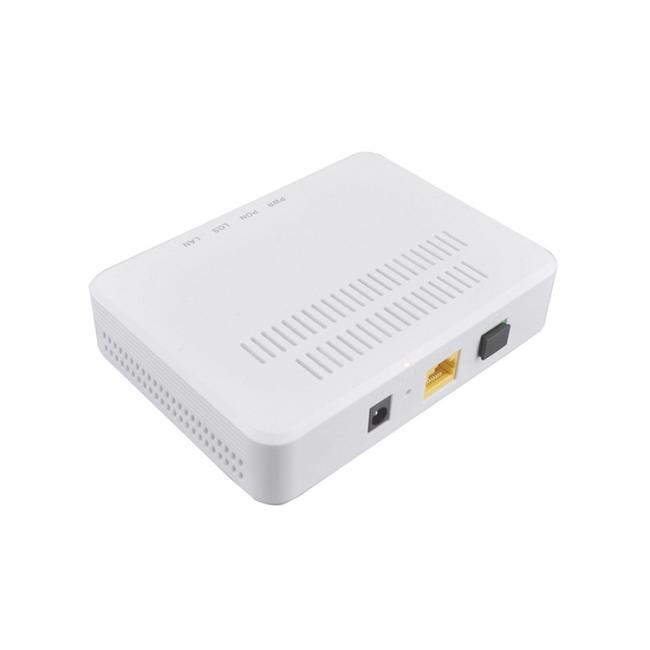

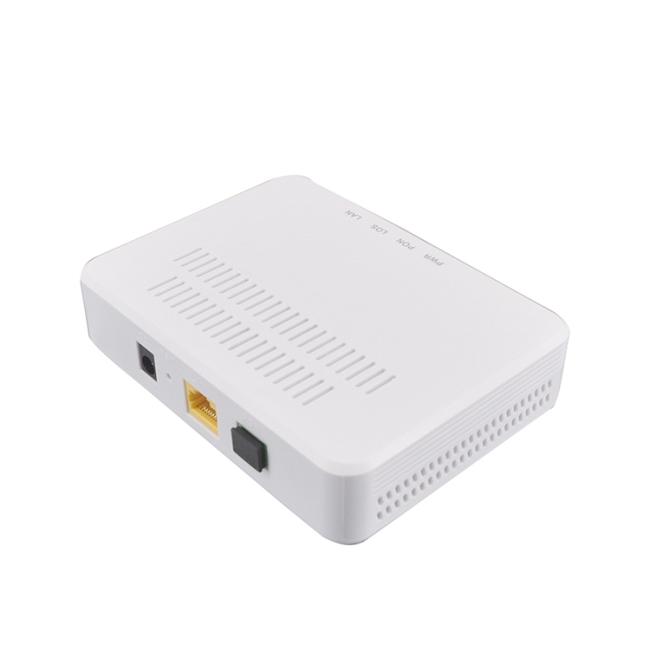

GPON ONU(UT-GP4103) is designed and manufactured by Shenzhen UT-King Technology Co.,Ltd, a next-generation Gigabit Passive Optical Network terminal, ideal for Fiber to The Home solution. It’s an incredibly robust device allowing users to access high-speed internet connections via its GPON port and share it with a Gigabit Ethernet port. With the transmission rates of up to 2.488Gbps, one GPON port and one Gigabit Ethernet port, It provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.
Features
- Complies with ITU-T G.984. x and IEEE802.3x, provides comprehensive GPON and EPON network compatibility
- Downstream rates of up to 2.488Gbps and upstream rates up to 1.244Gbps
- Fiber access and gigabit port provide incredibly fast transfer speeds
- Supports OMCI and OAM remote management
| Model No. | UT-GP4103 |
| Interface |

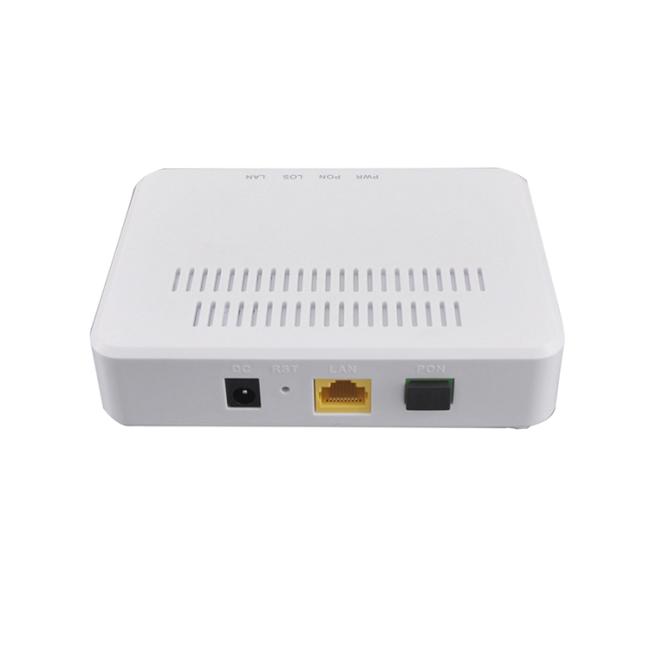

1 *SC/UPC Port or 1 *SC/APC Port; 1 *10/100/1000Mbps RJ45 Port |
| Chipset | Realtek, RTL9601D+RTL8290B |
| Data Rates & Wavelength |
Upstream:1.244Gbps, 1310nm Downstream:2.488Gbps, 1490nm |
| Distance | 0~ 20Km Max |
| External Power Supply | DC 12V/0.5A |
| Dimensions (Length * Width * Height) | 132mm×100mm×30mm |
| Weight (Full-Loaded) | ≤0.3kg |
| Working temperature | 0°C～40°C |
| Storage temperature: | -40°C～70°C |
| Relative humidity: | 10%～90%, non-condensing |
