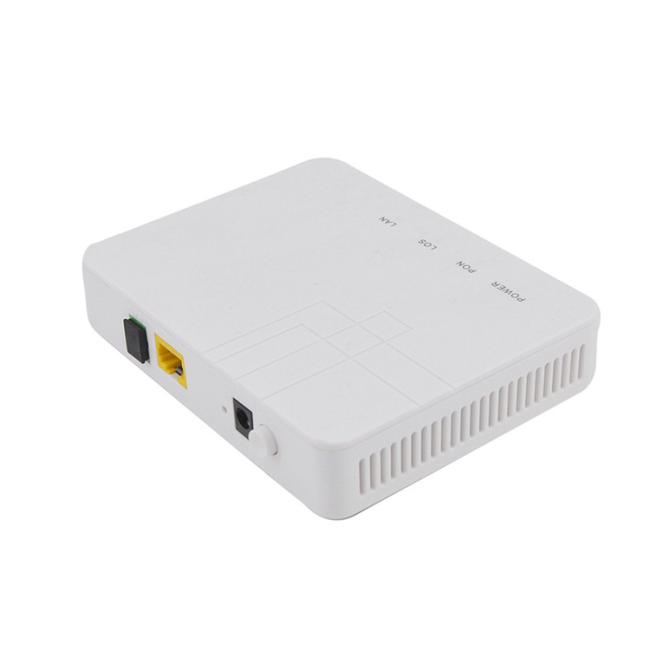

FTTB Optical Network Terminal Modem UPC SC Ont Optical Modem
Price:
Negotiable
MOQ:
10
Delivery Time:
7-10 work days
Brand:
UT-King
Product Description
Gpon Onu FTTX FTTB FTTX Fiber Optical Network ONU GPON 1Ge Port
The GPON ONU integrates GPON OMCI Stack and is fully compliant with ITU-T G.984 standards. The ONU is in a standardized MSA SFP form-factor and is designed to simply plug into a standard SFP port in your router.
1. Overview
- UT-GP4104 series single-user ONU is designed for ONU in deferent FTTH solutions by UT-King, The carrierclass FTTH application
- provides date service access.
- UT-GP4104 series adopts high-performance and low-consumption chips, and supports CTC 3.0
- interconnection and interworking standard of China Telecom. With the help of NGBN View NMS, it can provide subscribers with
- abundant services, and totally meet the needs of carrier-class FTTH devices.
- UT-GP4104G series is designed by ZTE chipset.
2. Functional Feature
●Router mode supports PPPoE/DHCP/ static IP
●Support port-based rate limitation and bandwidth control;
●In compliant with IEEE802.3ah Standard
●Up to 20KM transmission Distance
●Support data encryption, group broadcasting, port Vlan separation, etc.
●Support Dynamic Bandwidth Allocation (DBA)
●Support ONU auto-discovery/Link detection/remote upgrade of software;
●Support VLAN division and user separation to avoid broadcast storm;
●Support power-off alarm function ,easy for link problem detection
●Support broadcasting storm resistance function
●Support ACL and SNMP to configure data packet flter flexibly
●Specialized design for system breakdown prevention to maintain stable system Support software online upgrading EMS network management based on SNMP ,convenient for maintenance
●Specialized design for system breakdown prevention to maintain stable system Support software online upgrading EMS network management based on SNMP ,convenient for maintenance
| Model No. | UT-GP4104 |
| Interface |
1 *SC/UPC Port or 1 *SC/APC Port; 1 *10/100/1000Mbps RJ45 Port |
| Chipset | Realtek, RTL9601D+RTL8290B |
| Data Rates & Wavelength |
Upstream:1.244Gbps, 1310nm Downstream:2.488Gbps, 1490nm |
| Distance | 0~ 20Km Max |
| External Power Supply | DC 12V/0.5A |
| Dimensions (Length * Width * Height) | 132mm×100mm×30mm |
| Weight (Full-Loaded) | ≤0.3kg |
| Working temperature | 0°C～40°C |
| Storage temperature: | -40°C～70°C |
| Relative humidity: | 10%～90%, non-condensing |
