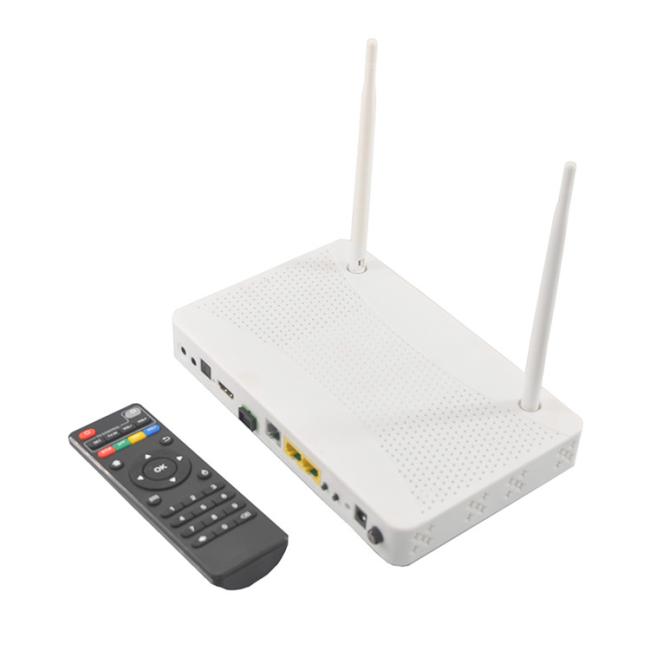

IPTV 1A Ont Dual Band Onu Wifi Ac Optical Network Unit 2.488Gbps
UT-King FTTH Optical Fiber GPON ONU Optical Network Unit 1ge+1fe+1tel+IPTV+Dual Band Wifi Onu
Specification
GPON ONU(UT-GP4281) is designed and manufactured by Shenzhen UT-King Technology Co.,Ltd, a next-generation Gigabit Passive Optical Network (GPON) terminal, ideal for Fiber to The Home solution. It’s an incredibly robust device allowing users to access high-speed internet connections via its GPON port and share it with a Gigabit Ethernet port. With the transmission rates of up to 2.488Gbps, one GPON port and one Gigabit Ethernet port, It provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.
Features
- Complies with ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3 and ITU-T G.984.4 provides comprehensive GPON network compatibility
- Downstream rates of up to 2.488Gbps and upstream rates up to 1.244Gbps
- Fiber access and gigabit port provide incredibly fast transfer speeds
- Supports OMCI (ONT Management Control Interface) remote management
- Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology.
- Full compliance to IEEE 802.3ah specification & OAM function.
Parameter
| Model No. | UT-GP4281 |
| Interface |
1 *SC/UPC Port or 1 *SC/APC Port; 2 *10/100/1000Mbps RJ45 Port; 2 *WIFI(2T2R, 802.11b/g/n for 2.4GHz with 300Mbps, 802.11ac for 5.8GHz with 866Mbps,two external antenna) 1 *FXS RJ11 Port 1 *HDMI(IPTV) |
| Chipset |
PON:Realtek, RTL9603C+RTL8192FR; IPTV:Amlogic S905x |
| Data Rate & Wavelength |
Upstream:1.244Gbps, 1310nm Downstream:2.488Gbps, 1490nm |
| Distance | 0~ 20Km Max |
| External Power Supply | DC 12V/2A |
| Dimensions (Length*Width*Height) | 180mm×130mm×50mm |
| Weight (Full-Loaded) | ≤0.6kg |
| Working temperature | 0°C～40°C |
| Storage temperature: | -40°C～70°C |
| Relative humidity: | 10%～90%, non-condensing |
