IP68 Fiber Access Terminal Box
Outdoor IP68 16 Core Fiber Optic Cable Box Fiber Access Terminal Closure Fiber Optic Junction Box
Description
UT-King’s fiber access termination box FATB416A is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.The fiber splicing,splitting,distribution can be done in this box,and meanwhile it provides solid protection and management for the FTTx network building.
Features
- Water-proof design with IP-68 Protection level.
- Integrated with flap-up splice cassette and adapter holder.
- Impact test:1K10. Pull Force:100N. Full Rugged design.
- Maximum 144F splice capacity,stainless anti-rust bolts and nuts.
- Plug-and-play installation,easy for maintenance and expansion.
- Fiber bend radius control more than 40mm.
- 180 degree access with buckled lock structure.
- 1*8 or 1*16 PLC splitter can be installed in each splice tray as option.
- Mechanical sealing structure and mid-span cable entry.
- 16pcs of pre-installed reinforced water-proof adapter for SC.
- 1 mid-span cable entrance(10-16.5mm)for uncut cable and 2 mechanicals glands for distribution cable(8-16.5mm)
Application
- wall-mounted installation
- pole-mounted installation
- Aerial-hanging installation
- suitable for 2*3mm indoor FTTH drop cable an outdoor4-7mm figure-8 self-supporting drop cable
Specification
| Model | UT-FATB416A |
| Dimension(LxWxH) | 385*245*155mm |
| Cable entries | Inlet port: 4 ports |
| Outlet port: 16 ports, 2*3mm drop cable or indoor cable | |
| Splicing Tray | 12/24 fiber per tray, up to 48 splicing |
| Material | PP+GF |
| PLC splitter | 1*4,1*8,1*12 ,1*16 Mini Steel Tube/ bare type PLC splitter |
| No. of Adapter | Max. 16pcs SC SX |
| 16pcs LC DX Adapter | |
| IP rating | IP65 |
| Cable Entry | Support un-cutting |

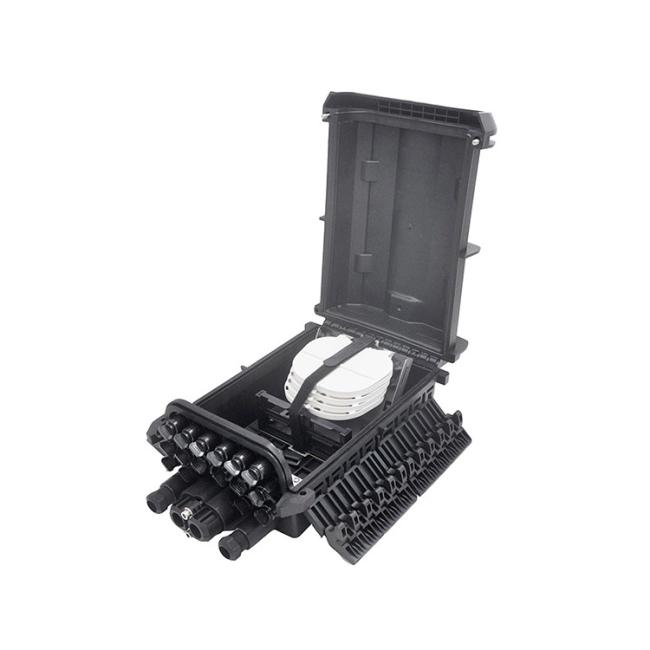

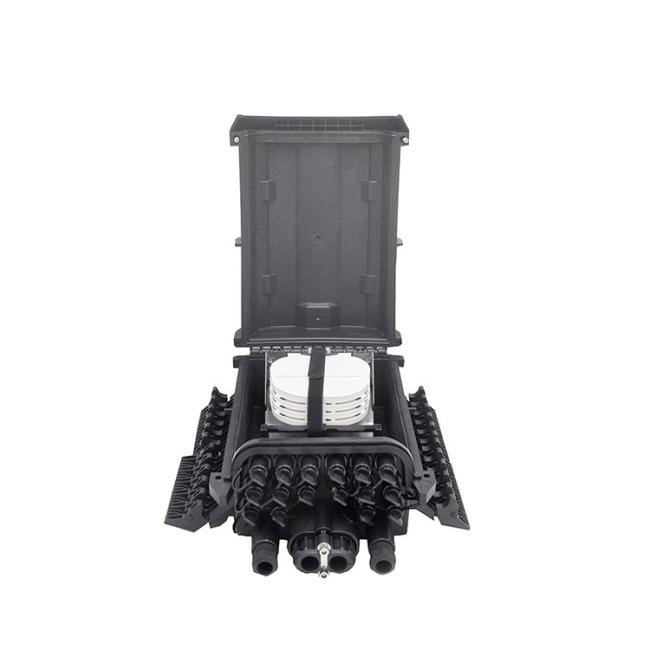

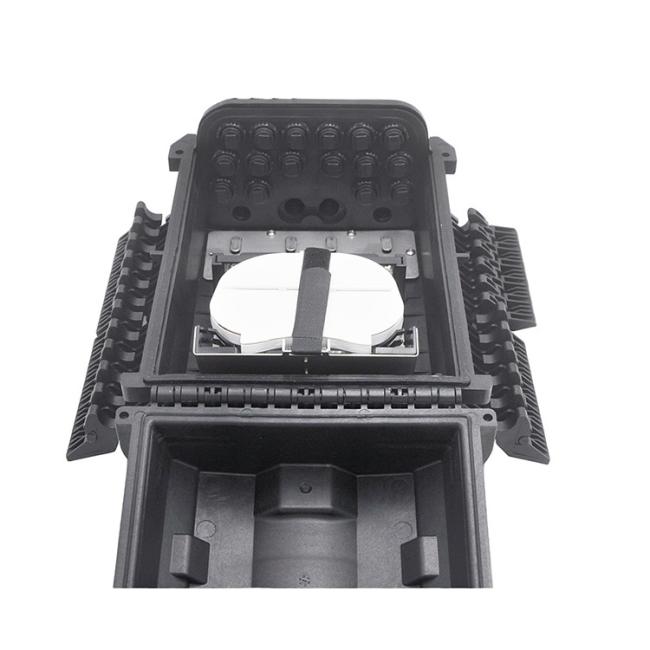

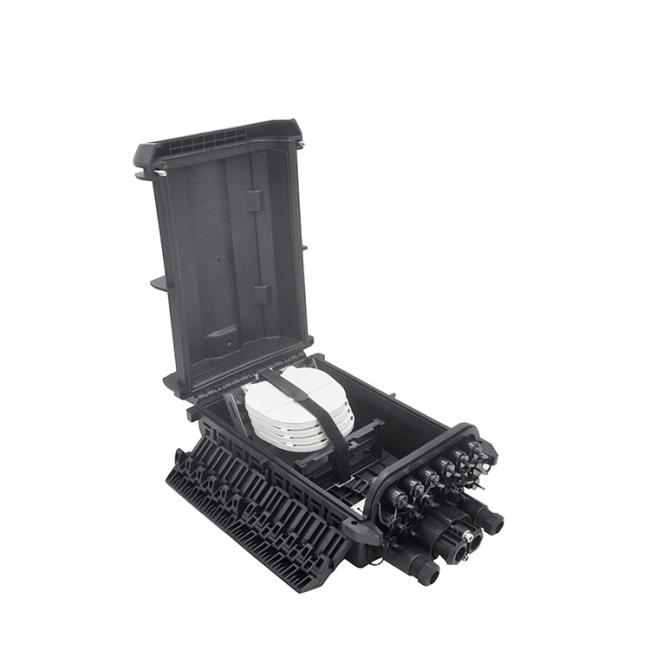

Deatialed Images
FAQ
Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.
Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
