Description
XPON ONU(UT-XP6104) is designed and manufactured by Shenzhen UT-King Technology Co.,Ltd, a next-generation Gigabit Passive Optical Network terminal, ideal for Fiber to The Home solution. It’s an incredibly robust device allowing users to access high-speed internet connections via its XPON port and share it with a Gigabit Ethernet port. With the transmission rates of up to 2.488Gbps, one XPON port and one Gigabit Ethernet port, It provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.
UT-King 1ge xpon onuseries is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON when it access to the EPON OLT or GPON OLT
Features
- Color is optional
- Router mode supports PPPoE/DHCP/ static IP
- Support port-based rate limitation and bandwidth control;
- In compliant with IEEE802.3ah Standard
- Up to 20KM transmission Distance
- Support data encryption, group broadcasting, port Vlan separation, etc.
- Support Dynamic Bandwidth Allocation (DBA)
- Support ONU auto-discovery/Link detection/remote upgrade of software;
- Support VLAN division and user separation to avoid broadcast storm;
- Support power-off alarm function ,easy for link problem detection
- Support broadcasting storm resistance function
- Support ACL and SNMP to configure data packet filter flexibly
- Specialized design for system breakdown prevention to maintain stable system
- Support software online upgrading EMS network management based on SNMP ,convenient for
- maintenance
Specification
|
User
interface |
1 10/100/1000M RJ45 port
|
|
VLAN
|
Port-based VLAN
GVRP IEEE 802.1Q VLAN |
|
Route |
Support NAT
Support PPPOE Support Server Client Support Route |
|
Environment
|
Operating temperature:0℃~60℃;
Operating humidity:10%~85% non-condensing Storage temperature:-40℃~80℃; Storage humidity:5%~95% non-condensing |
|
Power supply
|
110~240VAC 12V/0.5A DC
power interface size:2.1mm/5.5mm |
|
PON
|
Transmission speed :upstream/downstream 1.25Gbps Network coverage radius: 20KM Optical receive sensitivity:≥-28dBm C ontinuous light power: 0.5 dBm~+5dBm Security: ONU authentication mechanism |

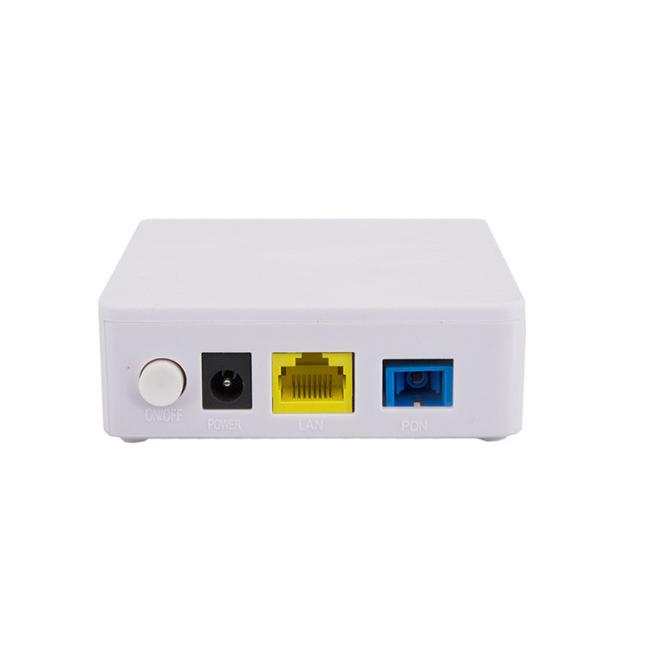

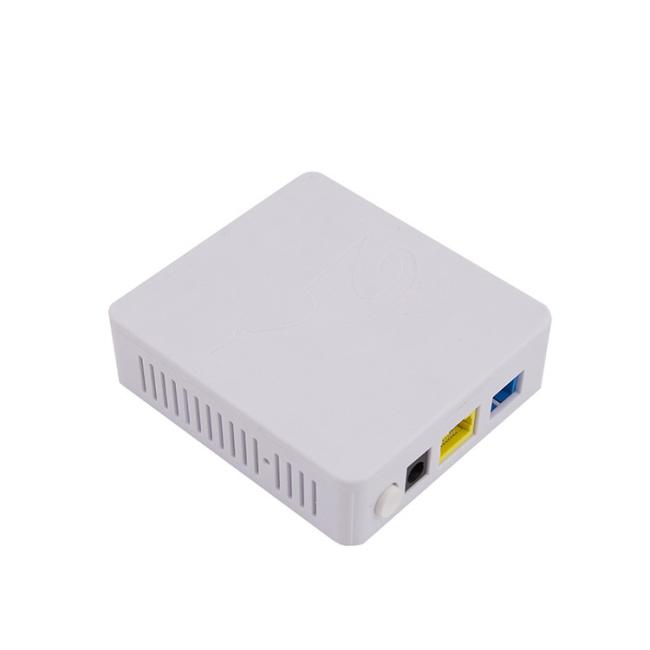

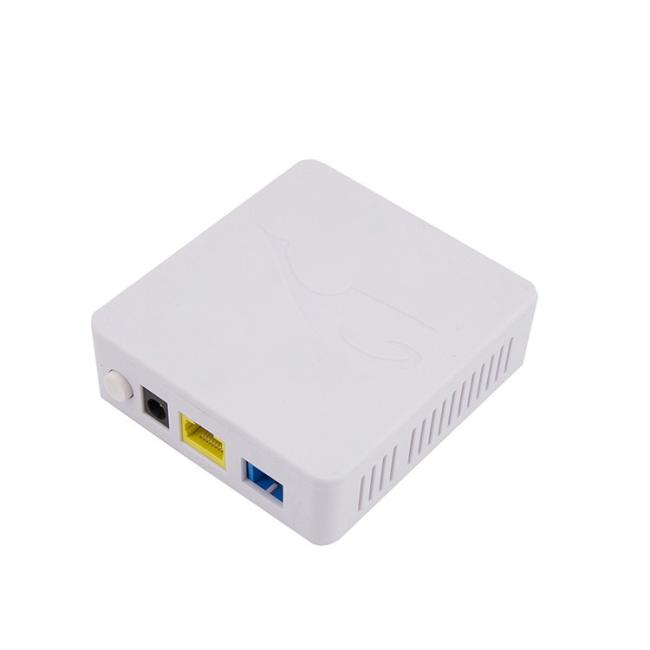

Detailed Images
FAQ
Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.
Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
