1.8m Handheld Optical Power Meter OT300 Optic Time Domain Reflectometer
FTTH Fiber Optical Handheld Optical Time Domain Reflectometer OTDR OT300 Fiber Optic Cable Testing Tools
Description
UT-King’s Optical Time Domain Reflectometer (OT-300) is an important instrument used by organizations to certify the performance of new fiber optics links and detect problems with existing fiber links.
Features
- Determine fiber optic cable or fiber optic’s failure point, connection point, breakpoint position
- Describe fiber optic cable or fiber’s loss distribution curve, measure cable, fiber’s length and the loss, attenuation coefficient between two points
- Measure fiber optic cable, optical fiber connector’s insertion loss
- Measure fiber optic cable, optical fiber’s reflection loss;
- Touch screen+keypad, easy to operate Large-capacity polymer lithium battery supporting continuous
- operation of more than 10 hours
- Supporting data exchange between the SD card and USB flash drive
- One-click red-light switch-on function
- Solid shell design, dustproof and shockproof
- Small, light, and portable
Specification
| Item | OT-300S | OT-300D | ||
| Dynamic | 30/28dB | 32/30dB | ||
| Operating Wavelength(±20nm) | 1310/1550 | |||
| Display | 3.5’TFT LCD touch screen | |||
| Light source tyep | LD | |||
| Optical Interface | FC/UPC | |||
| Distance range(km) | 0.3, 1, 3, 5, 10, 30, 60, 120 | |||
| Pulse width(ns) | 5,10,20,40,80,160,320,640,1280,2560,5120,10240,20480,auto | |||
| Measurement duration | 15s,30s,1min,2min,3min | |||
| Attenuation dead zone | 10m | |||
| Event dead zone | 1.8m | |||
| Distance measurement precision | ±(1m+5×10-5×Distance+Samling interval) | |||
| Data storage | ＞60000 test traces | |||
| Communication interface | USB | |||
| VFL | Wavelength | - | 650nm | |
| Output power(dBm) | - | ≥-3 | ||
| Test distance(km) | - | 3 | ||
| Optical Communications Test | YES | |||

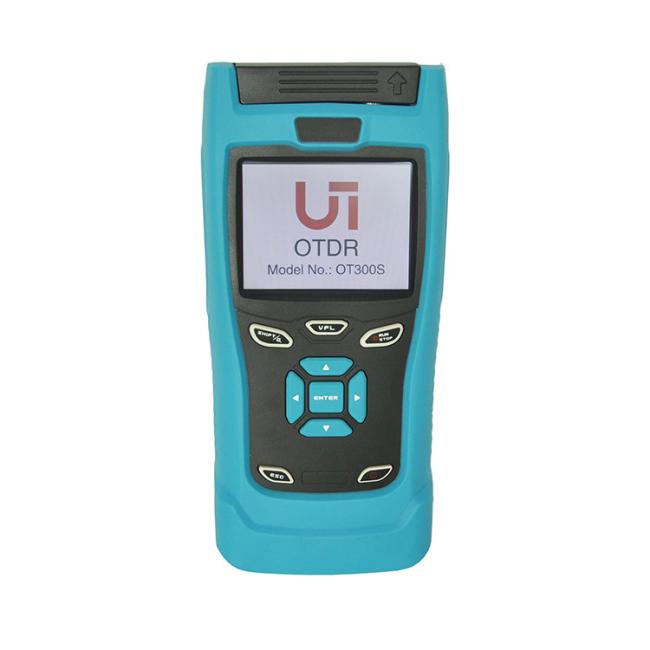

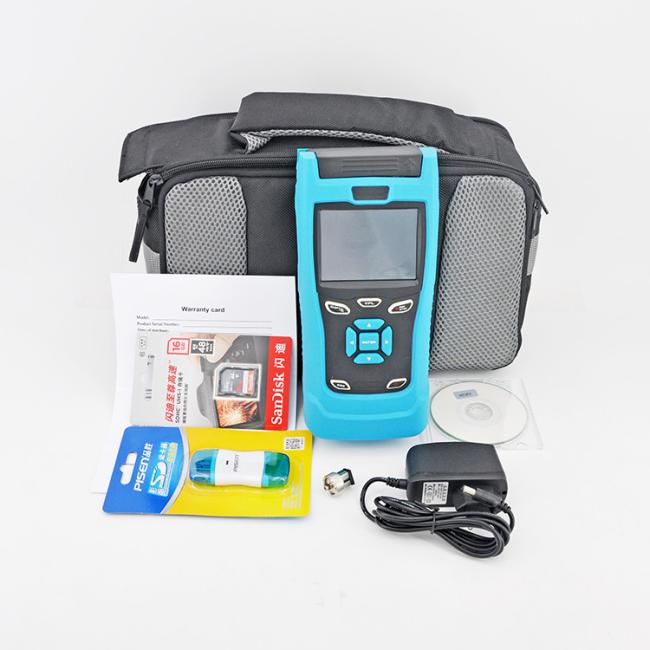

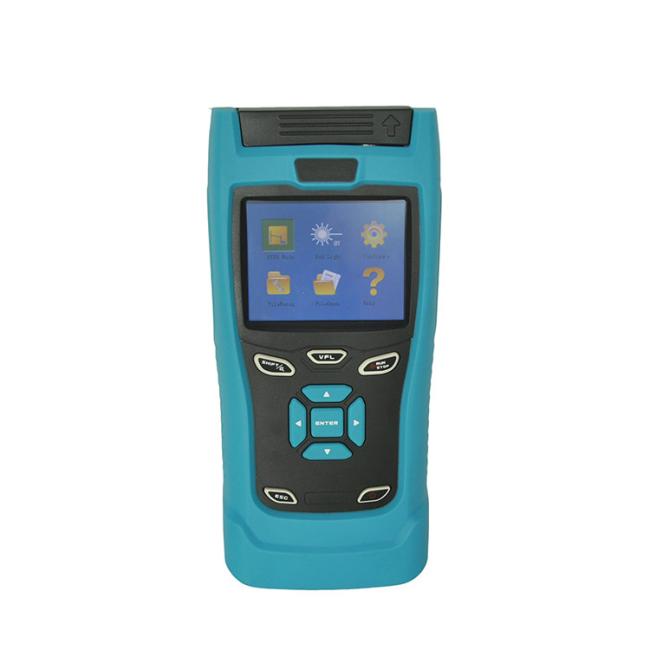

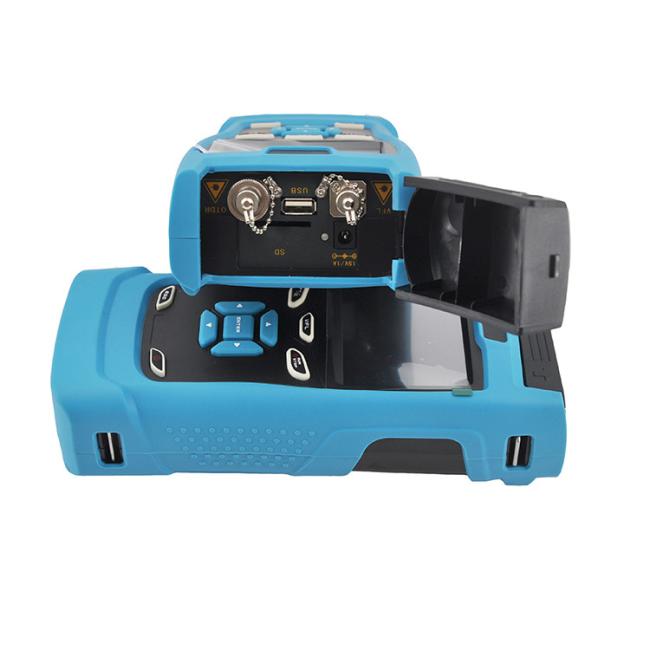

Detailed Images
FAQ
Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.
Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
