1POTS Optical Terminal Unit
Huawei XPON ONO EG8141A5 1GE+ 3FE +1TEL+WIFI ONU FTTH Optical Fiber ONU Device
Description
ZTE F660 V8.0 is a GPON Optical Network Terminal designed for HGU (Home Gateway Unit) used in FTTH scenario, which supports L3 function to help subscriber construct intelligent home network.ZTE F660 provides an GPON interface to connect OLT with an ODN. It offers a new choice for operators to deliver FTTH access.
POL (Passive Optical LAN) is a new type of LAN networking solution based on PON technology, which combines different services such as data, voice, video, and wireless access into one optical fiber network, inheriting the PON network With the advantages of large bandwidth, high reliability, low latency, flatness, easy deployment, and easy management, it is the best choice for different scenarios such as smart parks, commercial buildings, enterprises, campuses, hotels, governments, and finance.
Features
- Fiber access:Connecting internet throungh GPON access method
- Ethernet fuction: It Provids 4 Ethernet ports and Ethernet devices can be directly connected to the ZXHN F660 Ethernet port to achieve Internet and IPTV services.
- VoIP function: It Provids 1 VoIP(Phone) ports supporting softswitch SIP, IMS SIP or H.248 voice control protocol and telephone can be connected via this interface.
- Internal WLAM fuction: Users can connect to the ZXHNF627 via WLAN, enabling wireless Internet access.
- Data sharing, fast backup, data recovery and other functions: It provides USB2.0 port.Pluging a USB memory device,it can achieve all these fuctions.
- Under the premise of providing the above functions ,achieving security, QoS and network management are also took into the consideration.
- Providing multi-level authentication based on device, user, service, and encryption of data channels
- For different service requirements of the business,it can complete the local equipment and network matching QoS requirements
- Holding network management based on multiple management methods
Application
- Catering for different scenarios it provides different interfaces such as FE,GE,VoIP, E1, WiFi,USB and other interfaces to meet the requirements of FTTH,FTTO and FTTB application modes, not only for home user, but also for commercial users.It supports full service operation with high QoS and security, such as HSI, VoIP, IPTV.
- Easy for deployment Mounting mode and fiber coiling make installation very easy.
- Easy for trouble shooting Support ONT signal tracing and performance monitoring, and quickly locate fault on ONT.
- Particular power saving Supports status monitoring when ONT is free, and enter low-power
Specification
| Brand | ZTE |
| Model | F660V8.0 |
| Optical port | 1 x GPON interface |
| Transmission Distance | 0-20KM |
| Transmit rate | 2.488Gbps downstream; 1.244Gbps upstream |
| User-Network Interface | 1GE +3FE port |
| 1 x Wi-Fi interface | |
| 1 x USB host interface | |
| 1 x POTS interfaces | |
| Wavelength | Receiving: 1480~1500 nm Transmitting: 1290~1330 nm |
| Receiving Sensitivity | -28dBm |
| Transmitting Optical Power | 0.5~5dBm |
| Power consumption | <10W |
| Dimensions | 220mm(W) x 44mm(H) x 160mm(D) |
| Working temperature: | 0oC ~ 40oC |
| Working humidity | 5% ~ 95% |
| Weight | 380G |
| Power supply | 12V DC |

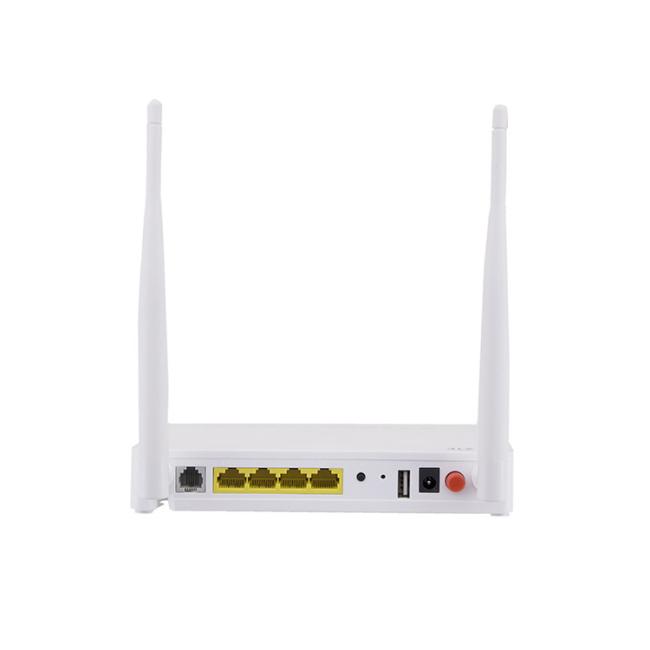

Detailed Images
FAQ
Q: What products do you offer?
A: Our main products are OEM&ODM ONU & OLT. We can offer fiber optical equipment accessories.
Q: How can I get a sample to check your quality?
A: If you need sample to test, please pay for the freight and sample cost. And the sample cost will be returned back to you after you place an bulk order more than our MOQ.
Q: Can I have the products with my own logo?
A: Yes. We can offer both OEM and ODM service with prototype design and small MOQ.
Q: How long can I expect to get the sample?
A: The samples will be ready for delivery in 15~30days after we receive the payment.
Q: Can you give me a discount?
A: Yes, based on wholesale service, we have better discount for bigger quantities. We will quote you the best price based on your order quantity.
Q: What is the lead time for mass production?
A: We are a factory located in shenzhen city, Guandong province.
Q: How to do if I can’t reach your minimum order quantity?
A: Do not worry about that. If you can’t reach MOQ for each item, we suggest you refer to our goods in stock and group sourcing items. We also can send you the latest list of the prompt goods for your reference.
