ADSS Indoor Outdoor Fiber FTTX Ftth Drop Cable Installation
All Dielectric Self-Supporting Optical Fiber Cable Fiber Optic Outdoor Cable ADSS
Description

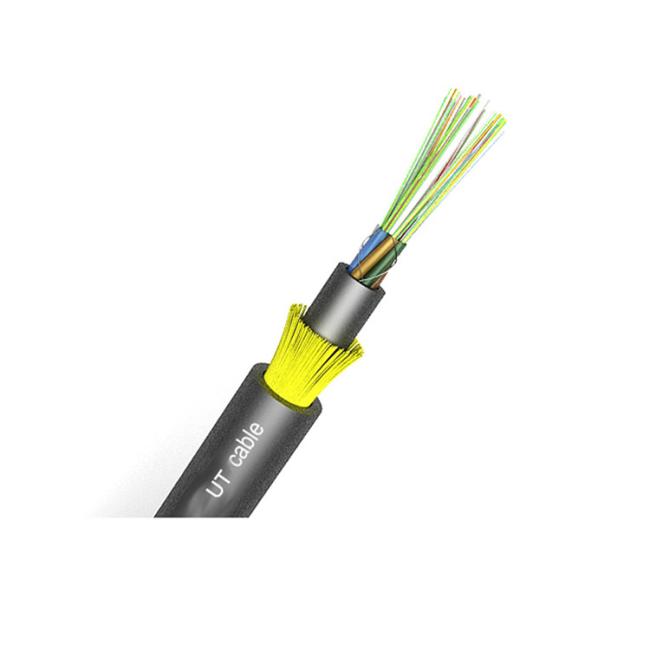

UT-King’s ADSS cable is loose tube stranded. Fibers, 250μm, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Features
- Can be installed without shutting off the power
- Excellent AT performance. The maximum inductive at the operating point of AT sheath can reach 25Kv
- Light weight and small diameter reducing the load caused by ice and
wind and the load on towers and upholder - Large span lengths and the largest span is over 1000m
- Good performance of tensile strength and temperature
- The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed.
- For overhead power lines under 110kV, PE outer sheath is applied.
- The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
Application
- Apply to Long distance communication system, Local area network system and Subscriber network system
Specification
| No. of Fibers | 2-36 | 38-72 | 74-96 | 98-120 | 122-144 | 146-216 |
| Max No. of Fibers/Tube | 6 | 12 | 12 | 12 | 12 | 12 |
| No. of Tube(+Fillers) | 6 | 6 | 8 | 10 | 12 | 18(2 layers) |
| Cable Weight(kg/km) | 89 | 135 | 150 | 185 | 220 | 225 |
| Nominal Diameter | 10.7 | 13.2 | 13.9 | 15.4 | 16.8 | 17 |
| Fiber Type | G.652D G.655 G.657 OM1 OM2 OM3 OM4 | |||||
| Max Allowable Tension | Short Term :3500N Long Term:100N MAT:3.5Kn RTS:9.0Kn Wind Speed: ≤30m/s Ics:0mm |
|||||
| Min. Bend Radius (mm) | Dynamic:20D Static:10D (D: Cable diameter) | |||||
| Temperature Range | -40°C~+70°C (Transportation& Storage) | |||||
| -35°C~+65°C(Installation) | ||||||
| -40°C~+70°C(Operation) | ||||||
Detailed Images
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a professional cable manufacturer with 30 years of production experience
Q: What are our payment terms?
A: Our payment terms are usually T / T 30% of the prepayment, ie the balance before pickup or the sight letter of credit.
Q. What is the delivery time?
A: The delivery time is usually 5-30 days. If the order quantity is large, the delivery time needs to be negotiated again.
Q: Can we provide customers with free samples?
Of course, we provide free samples for customers to check.
Q: Does your price include customs clearance at the destination, import tax, installation services?
A: Sorry, we currently only provide cables and provide transportation services in China. Both parties should re-quote and negotiate other services.
Q: What is your quality guarantee and deadline?
A: Each product will be inspected by professional testing equipment, and the product will be out of the warehouse after it is qualified. Usually, the warranty period is 18 months after delivery and 12 months after installation (whichever is earlier).
