Hyundai Excavator R210-7 Joystick Pilot Valve Pusher Pistion Kit Pluge XKAY-00608
Price:
Negtiation
MOQ:
1 kit
Delivery Time:
3-7 days after payment
Brand:
GUKE
Product Description

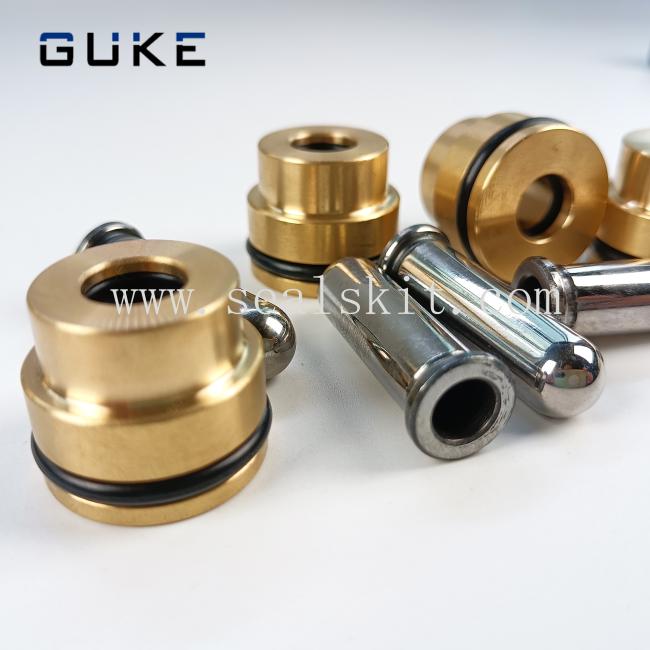

Hyundai Excavator R210-7 Joystick Pilot Valve Pusher Pistion Kit Pluge XKAY-00608
The excavator repair kit mentioned earlier is designed to provide a comprehensive solution for repairing or replacing Orings in the excavator. The H.NBR 90 material used in the kit is known for its excellent resistance to oil, hydraulic fluids, and abrasion, making it an ideal choice for industrial applications. The kit can be customized to meet specific needs, such as different sizes or quantities of Orings. The product code is used to identify the kit in the market.
| Product Information | |
| Type: | Kit Pluge Joystick Valve,Piston |
| Material: | Copper + Iron + NBR |
| Size: | Standard Size |
| OEM/ODM: | Accpetable |
| Appliion: | R210-7 R220-7 Excavator Joystick Valve |
| Shipping: | Express,By Air,By Sea |
| Feature | Heat Resisitance,Pressure resisitant,High Cost Performance |
| Raw Material: | High quality metal , ZEON of Japan |
| Availablity: | In Stock |
Appliion Chart:

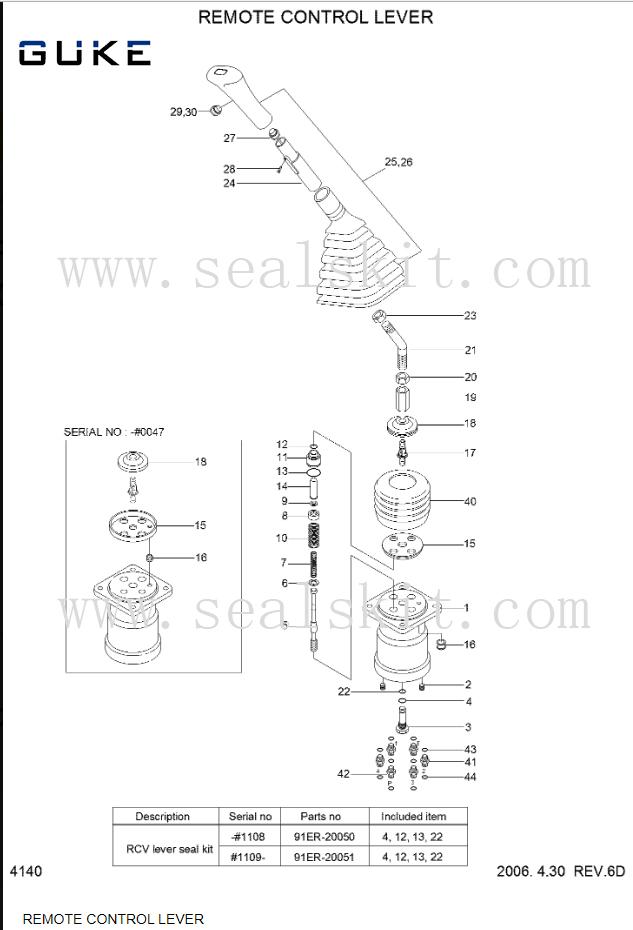

Parts List:
| Pos. | Part No | Qty | Parts name |
| *. | 31N8-20150 | 1 | RCVSUBASSY-LH |
| *. | 31N8-20200 | 1 | RCVSUBASSY-LH |
| *. | 31N8-24200 | 1 | RCVSUBASSY-LH |
| *. | 31N8-20160 | 1 | RCVSUBASSY-RH |
| *. | 31N8-20210 | 1 | RCVSUBASSY-RH |
| *. | 31N8-24210 | 1 | RCVSUBASSY-RH |
| *-1. | 31N6-20060 | 1 | RCVLEVER-LH |
| *-1. | 31N6-20061 | 1 | RCVLEVER-LH |
| *-1. | 31N6-20070 | 1 | RCVLEVER-RH |
| *-1. | 31N6-20071 | 1 | RCVLEVER-RH |
| 1 | XKAY-00066 | 1 | CASE |
| 1 | XKAY-00077 | 1 | CASE |
| 2 | XKAY-00065 | 4 | PLUG |
| 3 | XKAY-00064 | 1 | PLUG |
| K4. | XKAY-00063 | 1 | O-RING |
| *-1. | XKAY-00615 | 4 | SPOOLKIT |
| 5 | XKAY-00062 | 4 | SPOOL |
| 6 | XKAY-00061 | 4 | SHIM |
| 7 | XKAY-00060 | 4 | SPRING |
| 8 | XKAY-00059 | 4 | SEAT-SPRING |
| 9 | XKAY-00058 | 4 | STOPPER |
| 10 | XKAY-00057 | 4 | SPRING |
| 10 | JA2K5001 | 4 | SPRING |
| 11 | XKAY-00056 | 4 | PLUG |
| K12. | XKAY-00055 | 4 | SEAL-ROD |
| K13. | XKAY-00054 | 4 | O-RING |
| 14 | XKAY-00052 | 4 | ROD-PUSH |
| *-2. | XKAY-00608 | 4 | PLUGKIT(1,3) |
| 11 | XKAY-00610 | 4 | PLUG |
| 12 | XKAY-00611 | 1 | SEAL-ROD |
| 13 | XKAY-00054 | 4 | O-RING |
| 14 | XKAY-00052 | 4 | ROD-PUSH |
| 15 | XKAY-00051 | 1 | PLATE |
| 15 | XKAY-00075 | 1 | PLATE |
| 16 | XKAY-00050 | 1 | BUSHING |
| 16 | XKAY-00074 | 1 | BUSHING |
| 17 | XKAY-00049 | 1 | JOINTASSY |
| 18 | XKAY-00048 | 1 | PLATE-SWASH |
| 18 | XKAY-00073 | 1 | SWASHPLATE |
| 19 | XKAY-00047 | 1 | NUT-HEX |
| 20 | XKAY-00046 | 1 | NUT |
| *-3. | XKAY-00617 | 1 | HANDLEKIT(L) |
| *-3. | XKAY-00616 | 1 | HANDLEKIT(R) |
| 21 | XKAY-00044 | 1 | CONNECTOR-HANDLE |
| K22. | XKAY-00045 | 1 | O-RING |
| 23 | XKAY-00043 | 1 | NUT |
| 24 | XKAY-00042 | 1 | INSERT |
| 25 | XKAY-00041 | 1 | BOOT |
| N26. | XKAY-00040 | 1 | HANDLE-LH |
| N26. | XKAY-00076 | 1 | HANDLE-RH |
| 27 | XKAY-00039 | 1 | SWITCHASSY |
| 28 | XKAY-00038 | 1 | SCREW |
| 29 | XKAY-00037 | 1 | SWITCHASSY |
| 30 | XKAY-00036 | 1 | COVER-SWITCH |
| 40 | XKAY-00072 | 1 | BOOT |
| 41 | P010-110012 | 5 | CONNECTOR |
| 41 | X500-110011 | 5 | CONNECTOR-ORFS |
| 42 | 31EK-20110 | 1 | FILTER-LASTGUARD |
| 42 | 31N6-25070 | 1 | FILTER-LASTGUARD |
| 43 | S631-011004 | 6 | O-RING |
| 44 | S621-012001 | 6 | O-RING |
| K. | 91ER-20050 | 1 | SEALKIT |
| K. | 91ER-20051 | 1 | SEALKIT |
| N. | @ | 1 | NOTINDIVIDUALLYSUPPLIED |
