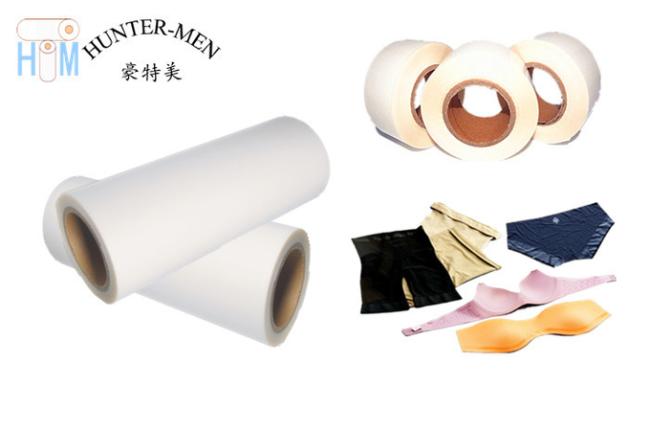

TPU Hotmelt Stickness Film Roll Thermal Bonding Elasticity For Underwear Fabrics
TPU Hotmelt Stickness Roll for Traceless Thermal Bonding Elasticity Underwear Fabrics
Model Number:HT07-40P
Description:
HT07-40P is thermoplastic material, suitable for a variety of materials, it can stick to materials after one or more times melt by hot temperature,after hot melting and quickly cold speed feature make it use to various high speed production.It performs an excellent adhesion for Fabrics,Diving Fabrics,Laica,Jersey, other elastic fabrics and so on. This adhesive product possesses excellent washability and with good dry cleaning and chemical additives resistant.
Operate machine:iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot composite machine.
Physical Characteristics:
| Color | Transparent | Release Liner | Double Silicone Glassine Release paper |
| Density | 1.2±0.02g/cm³ | Conventional thickness | 30mic,50mic,80mic,100mic (can be customized) |
| Melt Flow Index | 35±5g/10min |
Conventional Width | 1500mm (can be customized) |
| Hardness (Shore A) | 60A | Length | 100meters(can be customized) |
| Flow Beginning Point | 120℃ | Normal Size /Rolls |
1535mm(width)*100meters(Length) (can be customized) |
Recommended Bonding Conditions:
| First Backing Operate | Second Hot Pressure Operate | ||
| Backing Temperature | 130℃-150℃ | Hot Pressure Temperature | 150℃-190℃ |
| Hot Pressing Speed | 20m/min | Hot Pressure Speed | 15m/min |
| Pressure | 0.5-1.5KG/CM² | Pressure | 0.5-1.5KG/CM² |
Note: Due to the different bonding materials have different heat-shielding performance, the operation parameters in the technical data are only for reference. The specific hot pressing temperature, pressure and time shall be adjusted according to the different bonding materials, operating equipment and process.(Please don’t use steam when you operate by flatiron.)
Storage Conditions:
Stored in dry unopened packaging at room temperature at least 2 years.
Features&Usages:
It has good resilience, elasticity, heat resistance, cold resistance and water resistance.This adhesive product possesses excellent chemical additives resistant, It main used to composite elastic fabrics to produce can be used as a health-care vest, an underwear, a health-care waistband, kneepads etc.
How to use it:
FAQ:
Q1) . How about your MOQ of your hot melt Adhesive Film?
A:Our PO,EVA, TPU, PES ,PA hot melt adhesive film , MOQ is 100yards.
Q2). What is your normal width ?
A:Our normal width are 48cm, 50cm, 96cm,100cm,150cm and so on.
Q3). Do you provide free sample? And how many days it will take?
A:Yes, we provide free 1-2yards sample, only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation,
Q4). What is your lead time ?
A:3-5 days , depending on the quantity , we almost have safe stock .
Q5). How do I pay for my order?
A:We accept T/T ,Western Union , Paypal .
