500V Low Voltage Switchgear
Price:
USD 1000-15000
MOQ:
1
Delivery Time:
15 working days
Brand:
KNKONG
Product Description
XL-21A 500V IEC ISO Electrical control cabinet MCC panel lighting control box
XL-21A electrical distribution switchgear panel
Voltage: under 500V
Insulation voltage: AC 660V
Frequency: 50 /60 Hz
Current 800A
Short-term tolerance current ability lew: 10KA
Insulation voltage: AC 660V
Frequency: 50 /60 Hz
Current 800A
Short-term tolerance current ability lew: 10KA
Inquire
Product Introduction
Technical data
Voltage: AC under 500V
Insulation voltage: AC 660V
Frequency: 50 /60 Hz
Current: ≤800A
Short-term tolerance current ability lew: 10KA
Dielectric Strength: 2500/1min
Material: stainless steel (SUS 304) /Cold rolled plate /Galvanized sheet (GI)
Thickness: 1.0mm-3.0mm
Application: Electric Power Transmission and distribution.
Protection: IP30
Open the direction: The opening Angle is equal to or greater than 135°
StandardS and certificate: GB7251.1-2005 ISO9001 CE /ISO /CCC /IEC 60439-1
| Description | Unit | parameter |
|---|---|---|
| Voltage of the main circuit | V | Under 500V AV |
| Auxiliary circuit rated voltage | V | AC 220V 380V |
| Frequency | Hz | 50 |
| Insulation voltage | V | 660 |
| Current | A | ≤800 |
Overall Dimension :

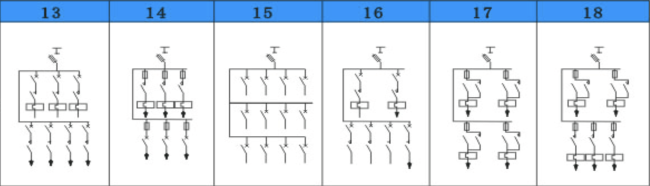

SLD Program:
