Electrical Fully Insulated Sf6 Gis Switchgear 630A Mechanical

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 30 days

Brand: Knkong

Product Description

SF6 RMU GIS electrical equipment fully insulated type

Voltage: max 33KV

Current: 630-1250A

Type: SF6 fully insulated

General

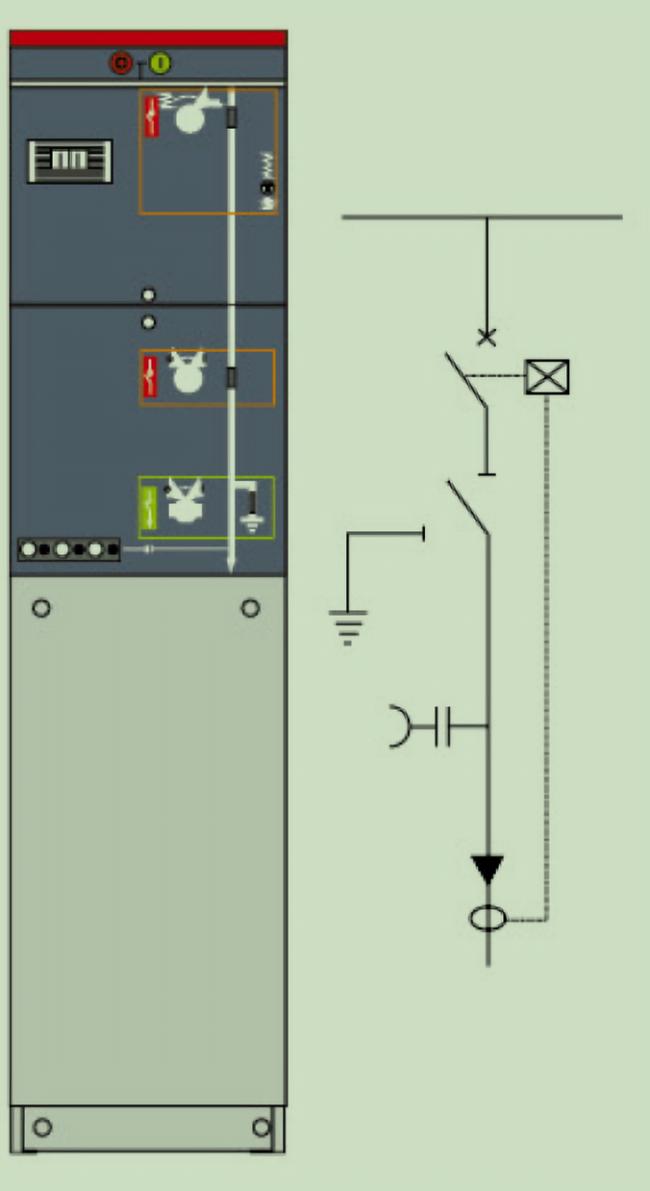

The VCB unit in the entire group of equipment is also called a vacuum V-type unit, which is used to break short-circuit current, and its circuit breaker is connected in series with a two-position isolating switch.

When the isolating switch is in the off position, the interlock grounding switch will close to ground the cable bushing.

The operating mechanism between it and the isolating switch and the operating mechanism between the isolating switch and the grounding switch are mechanical.

Service environment

Air temperature: -35℃~+40℃
Humidity: Monthly average 95%; Daily average 90%.
Altitude:≤ 1000m (Up to 5000 m can be custom)
Ambient air is not apparently polluted by corrosive and flammable gas, vapor, etc.
No frequent violent shake

Technical Data

No.	Item		Unit	Parameter
1	Rated voltage		kV	12	24	36
2	Rated frequency		Hz	50/60
3	Rated current		A	630(1250*)
4	1min Power frequency withstand voltage	wet	kV	38	50	70
4	1min Power frequency withstand voltage	dry	kV	48	60	85
5	Lightning impulse withstand voltage		kV	75	125/150	170
6	Rated short circuit breaking current (peak)		kA	80	63	63
7	Rated active load and close circuit breaking current		A	63	50	50
8	Rated transferring current		A	1700	1200	1200
9	Rated short circuit making a current (peak)		kA	80	63	63
10	Rated cable(line) charging breaking current		A	50 and 10 50/10
11	Cable charge breaking current in earthing fault		A	20	20	20
12	Rated withstand current (peak)		kA	80	63	63
13	Short-time withstand current (2s)		kA	25	20	20
14	Mechanism life		times	5000	2000	2000
