Abrasive Resistance Extruder Machine Parts 30mm r Distance 72 rpm
Machine Plastic Granulator Machine Recycle Plastic Granules Making Machine Parts
Types of Barrels
Standard for classification: Design geometry Standard for classification: With inner or not
Feeding barrel Solid barrel
Closed barrel Barrels with inners
Vent barrel
Combi barrel
Extended degassing barrel
Combi barrel with backward venting

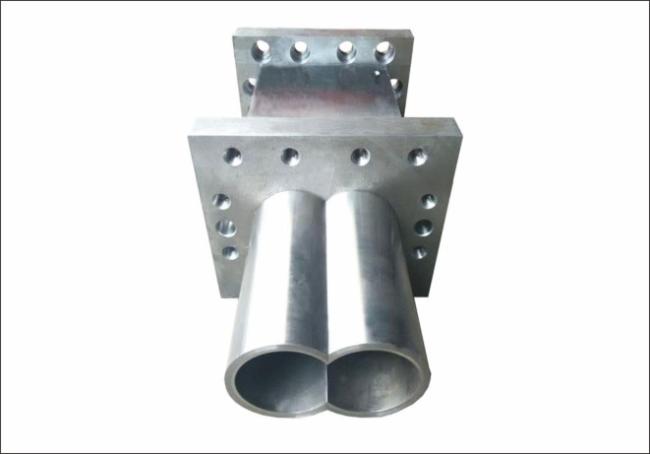

The Barrels is used as an important part for extruder accessory. It is widely used in various extruder industries. Such as XPS extruder, PS granulator, PE pipe extrusion machine. Because of the difference of raw materials, the requirements for the Barrels are different. For example, when some glass fiber materials are extruded, the wear is larger and the gap between the screw and the Barrels is strictly required. the balance of wear resistance and cost is need to be taken full consideration.
| Standard Barrel Parameter Table (selection table) | |||
| Model | Size(mm) W.H.L |
Hole Diameter(mm) | r Distance(mm) |
| JN-20 | 115.105.132 | Φ23 | 18.4 |
| JN-30 | 135.115.120 | Φ30.6 | 26 |
| JN-35 | 140.120.140 | Φ36 | 30 |
| JN-36 | 160.140.150 | Φ36 | 30 |
| JN-40 | 175.145.160 | Φ41.6 | 34.5 |
| JN-50 | 190.150.190 | Φ51 | 42 |
| JN-52 | 200.155.210 | Φ52 | 43 |
| JN-53 | 210.160.220 | Φ53.3 | 48 |
| JN-58 | 220.175.240 | Φ58 | 48 |
| JN-60 | 210.170.240 | Φ60 | 52 |
| JN-65 | 210.170.240 | Φ63 | 52 |
| JN-75 | 260.200.290 | Φ71.8 | 60 |
| JN-85 | 280.215.320 | Φ81.9 | 67.8 |
| JN-92 | 310.240.360 | Φ92 | 78 |
| JN-95 | 310.240.360 | Φ94 | 78 |
| JN-110 | 330.240.420 | Φ109 | 91.5 |
| JN-125 | 390.290.500 | Φ125 | 98 |
| JN-135 | 370.300.410 | Φ134 | 110 |
