Polymer Mixing Single Screw Plastic Extruder Machine 2.5mm Sheet thickness

Single Screw Extruder /TPR/TPE/PVC Plastic Compounding Granulating Extrusion Machine/Compounds Making

Application

Plastic extrusion Machine are mainly produce plastic sheets like PP PS PET PE materials, etc.

Product Description

each spiral is broken by four gaps per revolution to locate the kneading flights,Four rows of kneading pins,which are individually inserted in the barrel per 90 degree,are intermeshed with these flights,With the same L/D ratio, it achieves more mixing,but less friction heat.The reciprocating wobble-box synchronizes the shaft rotation and oscillation so that each revolution of the screw is accompanied by one full stroke forward and backwards.This ensures optimal distributive and dispersive mixing with minimal energy consumption.

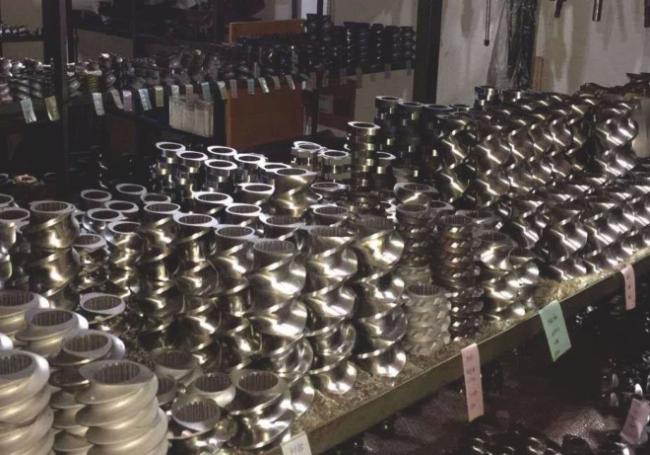

a mild-shear rotating and reciprocating single-screw extruder, is designed for shear and temperature sensitive compounds. The flights on the screw are interrupted and interqct with three rows of stationarv kneadina pins located in the barrel wall. The interaction between the moving flights and the stationary pins provide dispersive and distributive mixing simultaneously. Axially opened split barrel guarantees ease of cleaning. Those splined, segmented screw elements and pins can be changed easily according to different processing techniques. In addition, some pins are hollow inside, thermocouples can be inserted to get the accu- rate temperature of the materials inside the barrels, so as to liquid additives injection. Different from other extruders, the kneading process is achieved radially and axially at the same time. All in all, Co-Kneader has outstanding kneading, mixing efficiency and high degree of self-wiping. It is the most suitable for compounding purposes.

1,Main technical data

2,Composing
