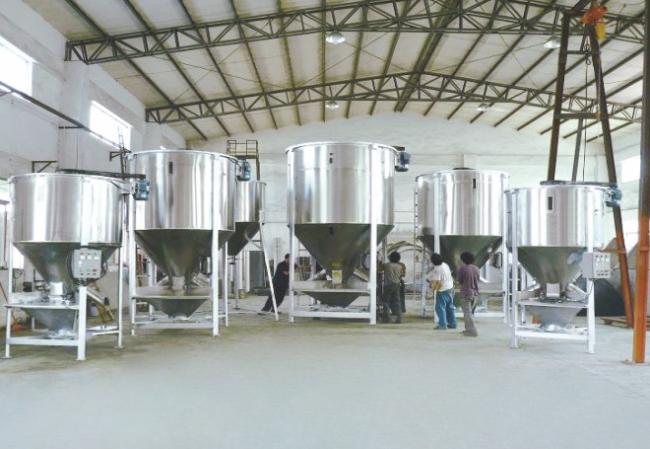

380V Plastic Granules Mixing Machine , 300 RPM Vertical Batch Mixer 3 Phase
plastic granular vertical color vertical resin vertical plastic granules mixer
♦ Vertical reducer motor adopted ensures low noise and long operation hours.
♦ Fast complete mixing. Low energy consumption and high productivity.
♦ Pail cover and bottom parts are compress formed, precisely matched & durable.
♦ Mixing timer able to set within 0-30 minutes.
|
Model
|
Power
|
Capacity
|
Voltage
|
Dimensions
|
Rotating speed
|
Net weight
|
|
YC-50
|
1.5KW
|
50 kgs
|
380V, 3 phase, 50hz
|
83*83*112 CM
|
85 RPM
|
125 kgs
|
|
YC-100
|
3KW
|
100 kgs
|
100*100*128 CM
|
85 RPM
|
180 kgs
|
|
|
YC-150
|
4 KW
|
150 kgs
|
113*113*140 CM
|
85 RPM
|
270 kgs
|
|
|
YC-200
|
7.5 KW
|
200 kgs
|
120*120*139 CM
|
85 RPM
|
313 kgs
|
|
|
YC-500
|
3KW
|
500KG
|
380V, 3 phase, 50hz
|
145*110*220CM
|
300
|
450
|
|
YC-1000
|
4KW
|
1000KG
|
158*138*310CM
|
300
|
630
|
|
|
YC-2000
|
5.5KW
|
2000KG
|
189*168*470CM
|
300
|
1050
|
|
|
YC-3000
|
7.5KW
|
3000KG
|
235*213*356CM
|
300
|
1250
|
Production description:
1) By the principle of spiral mixing working, conveying the materiel in the hopper to the top of the barrel by the screw spindle, and then it will drop as umbrella-shape and keep mixing circularly all the way in order to mix equably.
2) With the function of automatic operation, overload protection, feeding limit alarm, etc.
3) Less land occupation, large capacity, low power consumption, labor saving, convenient operation, fast and uniform mixing. Vertical plastic powder mixer can be widely used in plastic granule, powder, plastic sheet and so on.
4) Application of industry: pipe material, plastic materials, plastic granulating machine, color master batch, plastic modification, reclaimed materials, recovering and processing reclaimed materials, large injection molding, mixing of food, rice, beans and so on.
