Stainless Steel Rapid Mixer Granulator 7.5 kw Motor power vertical
Price:
Negotiable
MOQ:
1 - 4 Sets
Delivery Time:
15-25 working days
Brand:
YC
Product Description
Plastic Stainless Mixer/Color Resin Pellets Granules Power Mixer vertical plastic granule
PET,PP,HIPS,PE,EVA Single and Multi-layer Sheet Extrusion Line
It is mainly used on producing plate, bowl, saucer, box, disposable plastic cup and so on hot forming products, also can be used on packing of food, vegatable, fruit, dairy, industrial part and so on filed like stationary sheet so on.
Main Features
1.Suitable for all kinds of plastic raw materials and color powder or granules
2.Fully stainless steel contacting parts, rust free and easy to clean
3.Installed with power control device to ensure safety
4.Customizable for drying type model
Product Description

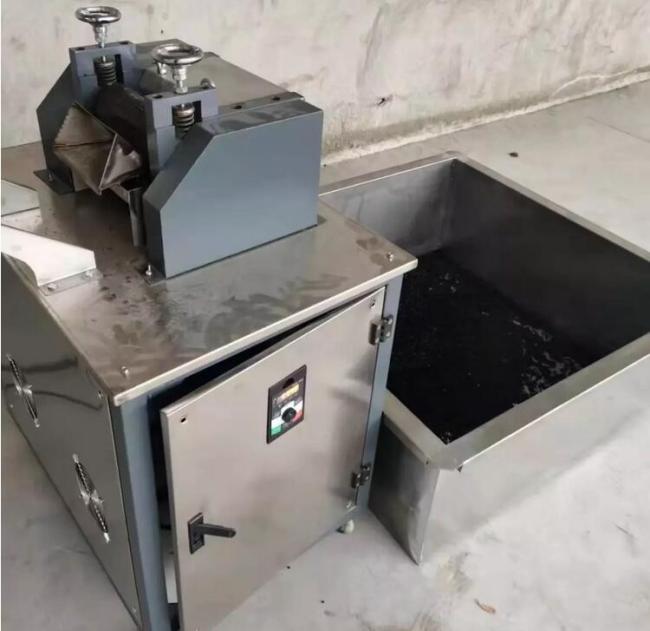

Haisi Rapid Mixer Plastic Cutting Granulator Machine For Sale
Product Description
The Technical Data of Pelletizer Machine :
Model | YC 60 | YC- 300 | YC 500 | YC900 |
Max output | ≤ 60kg/hr | ≤ 300kg/hr | ≤ 500kg/hr | ≤ 900kg/hr |
Motor power | 1.1~1.5kw | 3~4 kw | 5.5~7.5 kw | 11kw |
No. of strand | 6 | 15 | 25 | 42 |
Standard pellet | 3*3mm | 3*3mm | 3x3mm | 3x3mm |
Rotating cutter knife dimension (L*W*H) | 120x96mm | 200x100mm | 200x200mm | 200x300mm |
Cutter tooth No. | 14 tooth | 32 tooth | 32 tooth | 32 tooth |
Effective rotation speed | 350-1000rpm | 350-1000rpm | 350-1000rpm | 350-1000rpm |
Haul off speed | 0-36m/min | 0-96m/min | 0-96m/min | 0-96m/min |
Rotated cutter clearance | 0.06-0.12mm | 0.08-0.12mm | 0.08-0.12mm | 0.08-0.12mm |
Leading roller | PU | PU | PU | PU |
Sizer | 960×530×1330mm | 1270×750×1510mm | 1530×750×1630 mm | 1660×750×1730 mm |
Driver control | Sliding type inverter | |||
AC motor | 3 Phase / 380 V / 50 Hz | |||
