Industrial High Speed Mixer For Plastic 380V 500kg/H Mixing Capacity
High Speed 3kw Power 500kg Pp Pvc Abs Raw Material Plastic Mixer Machine Plastic Mixer
1. vertical plastic mixer uses rapid rotation of screw to elevate materials from bottom to top and throws in umbrella shape to the bottom so that materials will roll and mix in the drum evenly and efficiently.
2.The spiral repeated mixing of propeller blade inside enables materials to be mixed more evenly and rapidly.
3.Suitable to mix all kinds of plastic materials and color master batch.A better performance when new and old and color master batch are mixed together.
4.All contact parts between equipment and materials are made of stainless steel,which is easy to wash and may avoid rust.

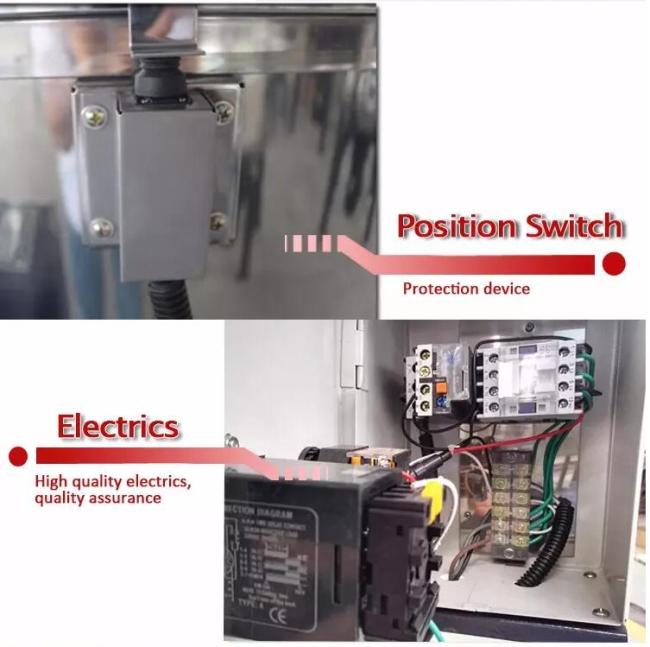

5.One power control security protection device is set to ensure safe operation.
6.Provision of tailoring drying function.
|
Model
|
YC50
|
YC100
|
YC150
|
YC200
|
YC300
|
YC500
|
|
Voltage(V)
|
3N-380V
|
|||||
|
Power(KW)
|
1.5
|
3
|
4
|
5.5
|
7.5
|
11
|
|
Mixing Capacity(KG/H)
|
50
|
100
|
150
|
200
|
300
|
500
|
|
Barrel Diameter*Height(MM)
|
620*440
|
750*560
|
880*610
|
1000*660
|
1100*620
|
1500*800
|
|
Tripod Height(MM)
|
550
|
630
|
540
|
630
|
670
|
820
|
|
Rotation Speed(R/Min)
|
63
|
|||||
|
Barrel Thickness(MM)
|
1.5
|
1.5
|
2
|
2
|
2
|
2.5
|
|
Blade Thickness(MM)
|
8
|
8
|
12
|
12
|
12
|
12
|
|
Base Plate Thickness(MM)
|
10
|
10
|
12
|
12
|
12
|
12
|
|
Dimension(M)
|
0.85*0.82.1.04
|
0.98*0.88*1.23
|
1.10*1*1.23
|
1.23*1.15*1.33
|
1.32*1.22*1.53
|
1.32*1.22*1.53
|
The competitive advantage of product line:
Production Capacity:
| Product Line Name | Production Line Capacity | Actual Units Produced(Previous Year) |
|---|---|---|
| Crusher, Edge Crusher, Chiller, Injection Molding Machine, Hopper Dryer and Loader Line | Crusher: 200 Pieces Per Month;Edge Crusher: 200 Pieces Per Month;Chiller: 200 Pieces Per Month;Injection Molding Machine: 200 Pieces Per Month;Hopper Dryer and Loader Line: 200 Pieces Per Month |
