Industrial 5472×3648 High Resolution Machine Vision Cameras 1Gbps Ethernet CE FCC UL RoHS
Price:
Negotiable
MOQ:
1 piece
Delivery Time:
7 work days at the soonest
Brand:
OPT
Product Description
C-Mount Industrial High Resolution Machine Vision Cameras 1Gbps Ethernet CE FCC UL RoHS GenlCam OPT-CM2000-GL-04
Product Features
◆ 1Gbps Ethernet interface , max 100m transmission
◆ 128MB on-board frame buffer
◆ Support multiple image data formats
◆ Conform to CE, FCC, UL and RoH5 certifications
◆ Software trigger/Hardware trigger/Free run mode
◆ Compatible with GigE Vision V2.0 protocol and GenlCam standard
Specifications
| Model | OPT-CM2000-GL-04 |
|---|---|
| Resolution | 5472×3648 |
| Pixel Size(μm) | 2.4 |
| Shutter | Rolling |
| Frame Rate(FPS) | 5.8 |
| Sensor Format | 1" |
| Sensor Type | IMX183 |
| Interface | GigE PoE |
| Lens Mount | C |
| Exposure Time | 187μS~1S |
| Image Format | Mono8/10/10Packed |
| Gain(dB) | X1~X32 |
| Dynamic Range(dB) | 66dB |
| Power Requirements | PoE/Hirose connector, 6V-26V DC |
| Weight(kg) | 0.09 |
| Power Consumption(W) | 12V≈3.4W |
| Temperature(℃ ) | Storage: - 30℃-+80℃; operating: -30℃-+50℃ |
| GPIO | 1 input 1 output (opto-isolated) |
| Housing Size(Diameter) | 29×29×42 |
| Conformity | GigE Vision V2.0 and GenlCam |
| Mono/Color | M |

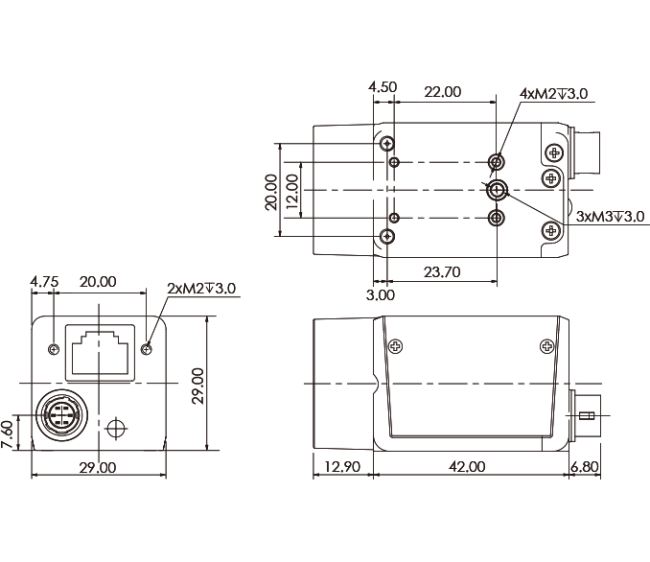

Dimensions(mm)
| OPT-CM2000-GL-04 | |
 |
