Product Description
Machine Vision LED Lighting High Intensity Spot Lights 1 Channel RGBW Heat Dissipation OPT-PIG Series OPT-PIG0803
Product Features
◆ Efficient heat dissipation design for effective control of light source temperature
◆ Equipped with the special light-guiding tube with which is able to be up to 400k lux illuminance.
◆ Equipped with the special light-guiding tube with which is able to be up to 400k lux illuminance.
◆ Combined with concentrating module as front light
Application Cases
◆ Capacitor surface inspection
◆ Screw surface inspection
◆ Pitch gauging for connectors
◆ Solder joints inspection
Specifications
| Product name | High Intensity Spot Lights |
|---|---|
| Model | OPT-PIG0803 |
| Color | Blue/Green/Red/White |
| Output | W: 0.7A/2.3W R: 0.7A/1.8W B: 0.7A/2.3W G: 0.7A/2.3W |
| Channels | 1 |
| Housing Size(Diameter) | 22mm |
| Recommended Controller | OPT-DPA2005E |
| Housing Size(Length) | 60mm |

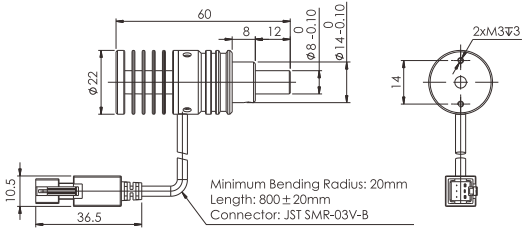

Dimensions (mm)
| OPT-PIG0803 | |
 |

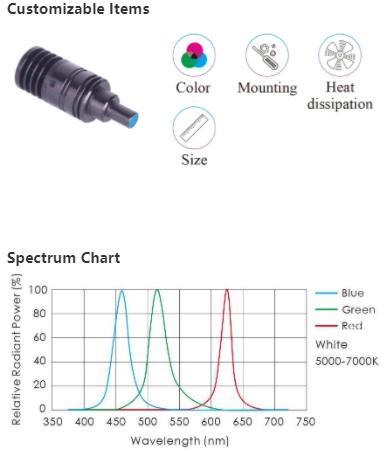

Product Feature
Note: The data is for reference only.

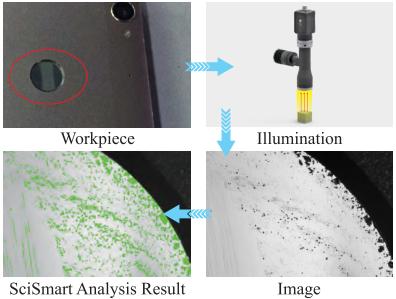

Applications: Surface defects detection for fingerprint scanners
