Length 100mm High Intensity Coaxial Lights / RGBW Machine Vision Lighting
Price:
Negotiable
MOQ:
1 piece
Delivery Time:
7 work days at the soonest
Brand:
OPT
Product Description
Coaxial Light Source High Intensity Coaxial Lights QR Code Reading RGBW Length 100mm OPT-COG Series LED lights OPT-COG50
Product Features
◆ Compared with OPT-CO series, the Coaxial Light Source High Intensity Coaxial Lights OPT-COG Series LED lights can be Four times higher intensity.
◆ The COG series light sources can be assembled and installed with heat sink as well as coolling fan in order to achieve good performance of heat dissipation.
◆ The COG series light sources can be assembled and installed with heat sink as well as coolling fan in order to achieve good performance of heat dissipation.
◆ DOAL coaxial light source OPT-COG50 has 4 colors of white/red/blue/green with two channels to connect with OPT-DPA2024E light source controller.
◆ The housing size(length) and emitting window size(length) of coaxial light source OPT-COG50 are respectively 100mm and 40mm.
◆ The output power of OPT-COG50: White: 2A/15.1W; Red: 2A/24W; Blue: 2A/15.1W; Green: 2A/15.1W.
◆ OPT-COG50 DOAL coaxial light source can be customized in many ways of mounting types, colors, connector types, intensity and uniformity.
◆ DOAL coaxial light source OPT-COG50 is able to be applied to different applications such as PCB OCR, PCB pad positioning and pattern inspection.
Application Cases
◆ PCB OCR
◆ PCB OCR
◆ PCB pad positioning
◆ Pattern inspection
Specifications
| Product name | Coaxial Light Source High Intensity Coaxial Lights |
|---|---|
| Model | OPT-COG50 |
| Color | Blue/Green/Red/White |
| Output | R: 2A/24W W: 2A/15.1W B: 2A/15.1W G: 2A/15.1W |
| Channels | 2 |
| Housing Size(Length) | 100mm |
| Recommended Controller | OPT-DPA2024E |
| Feature 1 | High Intensity |
| Feature 2 | Good performance of heat dissipation |
Product Feature

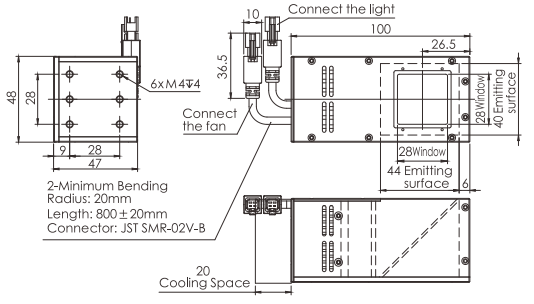

Dimensions (mm)
| OPT-COG50 | |
 |
