Uniform Housing Dia150mm Machine Vision Illuminator RGBW Led Inspection Lighting
Price:
Negotiable
MOQ:
1 piece
Delivery Time:
7 work days at the soonest
Brand:
OPT
Product Description
Uniform 24V Machine Vision Dome Lights 1 Channel RGBW Housing Diameter 150mm OPT-RID Series OPT-RID150
Product Features

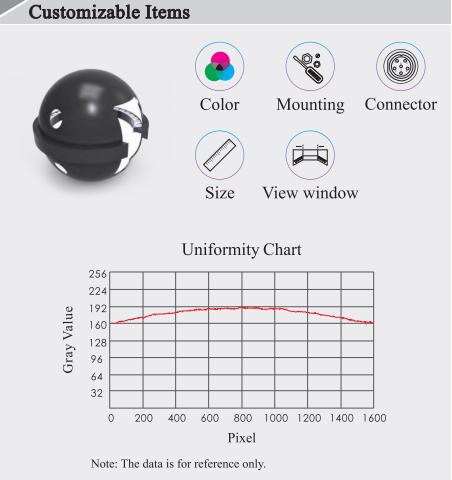

◆ OPT-RID Series Dome Lights can realize uniform illumination when uesd in lots of inspection or detection applications.
◆ RID series are designed to be compatible with special diffuser.

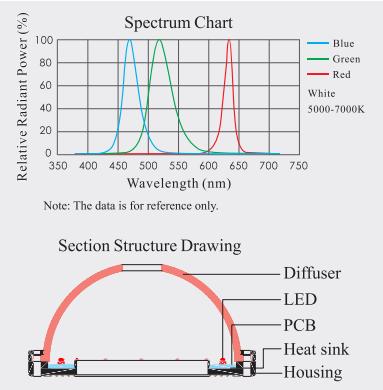

◆ 1 Channel and 4 colors; the output of light source in white color is 24V/14.2W; the output of red light source is 24V/14.2W; the output of blue light source is 24V/13.2W; the output of green light source is 24V/11.8W.
◆ The diameter of housing of the light source is 100mm; the diameter of its emitting surface is 116mm.
◆ OPT machine vision led lighting controller OPT-DPA2024E is recommended to this light source.
Specifications
| Product name | Dome Light |
|---|---|
| Model | OPT-RID150 |
| Color | Blue/Green/White/Red |
| Output | W: 24V/14.2W R: 24V/14.2W B: 24V/13.2W G: 24V/11.8W |
| Channels | 1 |
| Housing Size(diameter) | 150mm |
| Emitting surface(diameter) | 116mm |
| Recommended Controller | OPT-DPA2024E |

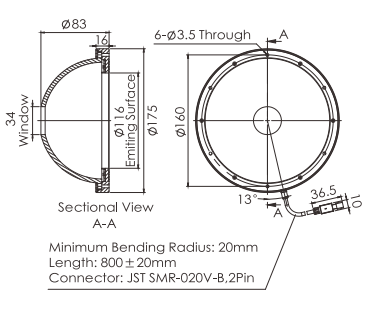

Dimensions (mm)
| OPT-RID150 | |
 |
