V38 Mount Line Scan Lenses Focal Length 50mm F2.8-F16 High Resolution
Price:
Negotiable
MOQ:
1 piece
Delivery Time:
7 work days at the soonest
Brand:
OPT
Product Description
Line Scan Lenses Focal Length 50mm F2.8-F16 Coloretto Series Suitable For V38 Mount OPT-VCT50/2.8-0.17X
Product Features
◆ Line Scan Lenses Aperture F/#: F2.8-F16
◆ With high resolution optical design, and compatible to line scan camera 7um pixel .
◆ Distortion(%) of lenses is 0.31% | 0.08% | 0.29%.
◆ Working Distance(mm) of this industrial lenses is 4146.4 | 522.4 | 162.7.
◆ Object To Image Distance(mm): 704.1 | 405.1 | 267.6.
◆ The type of interface of camera is mount V38 .
◆ 400 to 700nm broad spectrum
◆ 400 to 700nm broad spectrum
◆ This type of lenses are designed to be achromatic.
◆ 0.08X to 0.33X magnification; many different industrial applications can be accomplished by the OPT-VCT50/2.8-0.17X lenses.
◆ Be under of line and area scan camera and suitable for 44mm image circle.
◆ Be under of line and area scan camera and suitable for 44mm image circle.
◆ Image circle(mm) is 44mm.
◆ Focal length of coloretto series line scan lenses OPT-MCT40/4.5-0.08X is 50mm.
◆ Magnification of lenses is 0.08X | 0.17X | 0.33X.
◆ Flange Focal Distance(mm) of coloretto series OPT-VCT50/2.8-0.17X lens is 38.5 | 42.6 | 50.2.
◆ Relative distortion is below 0.08%
◆ Broad spectrum range is from 400 to 900nm and achromatic design
◆ Broad spectrum range is from 400 to 900nm and achromatic design
Model Explanation
OPT-VCT50/2.8-0.17X
OPT: Brand name
V: V-Mount
CT: Coloretto series line scan lenses
50: Focal length 50mm
2.8: F#: 2.8
0.17X: 0.17X primary magnification
Specifications
| Model | OPT-VCT50/2.8-0.17X |
|---|---|
| Focal Length | 50 |
| Working Distance(mm) | 4146.4 | 522.4 | 162.7 |
| Aperture F/# | F2.8-F16 |
| Image Circle(mm) | 44 |
| Magnification x | 0.08X | 0.17X | 0.33X |
| Distortion(%) | 0.31% | 0.08% | 0.29% |
| Distortion(%Max) | <0.08% |
| Flange Focal Distance(mm) | 38.5 | 42.6 | 50.2 |
| Object To Image Distance(mm) | 704.1 | 405.1 | 267.6 |
| Camera Interface | V38 |
| Weight(Kg) | 0.15kg |
Resolution Comparison
Image taken via Coloretto Image taken via other lens

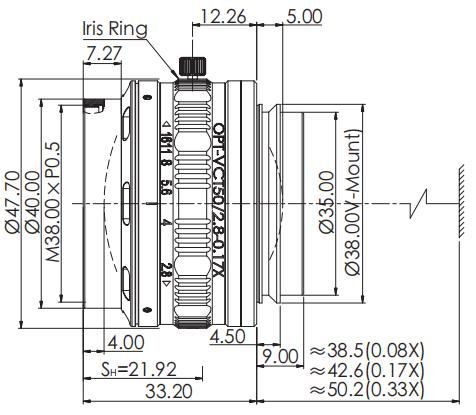

Dimensions (mm)
| OPT-VCT50/2.8-0.17X | |
|
|
