0.53kg F3.8-F22 Industrial Camera Lens / 116mm Focal Length Machine Vision Lens
Price:
Negotiable
MOQ:
1 piece
Delivery Time:
7 work days at the soonest
Brand:
OPT
Product Description
0.53kg F3.8-F22 Grampus Series Line Scan Lenses Focal Length 116mm Image Circle 82mm OPT-VGP116/3.8-1.0X
Product Features
◆ Line scan lenses aperture F/#: F3.8-F22
◆ Distortion(%) : 0.05% | 0.01% | 0.035%
◆ Working distance(mm) : 168 | 164.5 | 161.2
◆ Object to image distance(mm): 416.7 | 416.6 | 416.6
◆ Focal length of line scan lenses of grampus series OPT-VGP116/3.8-1.0X is 116mm.
◆ Minimum distortion is 0.01% and distortion at primary magnification.
◆ Magnification: 0.97X | 1.0X | 1.03X
◆ Able to be matched with 82mm image circle and under of line and area scan camera.
◆ Flange focal distance(mm) of OPT-VGP116/3.8-1.0X lens is 191.6 | 195 | 198.4.
◆ Weight of OPT-VGP116/3.8-1.0X line scan lens is 0.53kg.
◆ The suitable camera mount is V58 mount.
Model Explanation
OPT-VGP116/3.8-1.0X
OPT: Brand name
V: V-Mount
GP: Grampus series line scan lenses
116: Focal length 116mm
3.8: F#: 3.8
1.0X: 1.0X primary magnification
Specifications
| Product Name | Line Scan Lenses |
|---|---|
| Model | OPT-VGP116/3.8-1.0X |
| Focal Length | 116mm |
| Working Distance(mm) | 168 | 164.5 | 161.2 |
| Aperture F/# |
F3.8-F22
|
| Image Circle(mm) | 82mm |
| Magnification x | 0.97X | 1.0X | 1.03X |
| Distortion(%) | 0.05% | 0.01% | 0.035% |
| Flange Focal Distance(mm) | 191.6 | 195 | 198.4 |
| Object To Image Distance(mm) | 416.7 | 416.6 | 416.6 |
| Camera Interface | V58 |
| Weight(Kg) | 0.53kg |
Resolution Comparison
Image taken via Grampus Image taken via other lens

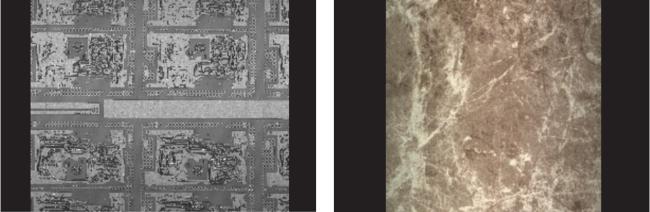

Application Examples:
Defect dection of PCB board Detection of texture and color on floor tile surface
Dimensions (mm)
| OPT-VGP116/3.8-1.0X | |
|
|
