29MP Fixed Focal Length Lenses Focal Length 35mm 0.65kg 180~∞ WD F2.8-F32
Price:
Negotiable
MOQ:
1 piece
Delivery Time:
7 work days at the soonest
Brand:
OPT
Product Description
29MP Fixed Focal Length Lenses Focal Length 35mm 0.65kg 180~∞ WD F2.8-F32 OPT-F3528-29M
Product Features
◆ 29MP fixed focal length lenses aperture F/#: F2.8-F32
◆ Working distance(mm) : 180~∞
◆ High resolution optical design, resolution is up to 90lp/mm
◆ Relative distortion is below 0.4%
◆ Suitable for 36mmX24mm image circle and under of sensor
◆ Relative distortion is below 0.4%
◆ Suitable for 36mmX24mm image circle and under of sensor
◆ Filter thread (mm):M58*P0.75
◆ Focal length of 29MP fixed focal length lenses OPT-F3528-29M is 35mm.
◆ Back focal length (mm):27.9mm
◆ Weight of OPT-F3528-29M fixed focal length lens is 0.65kg.
◆ Sensor format:44mm | 4/3″ | 1″
◆ FOV angle(H×V×D): 53.39°| 28.84°| 20.72°,41.33°| 21.83°| 15.62°,64.30°| 35.64°| 25.75°
Model Explanation
OPT-F3528-29M
OPT: Brand name
F: F-Mount
35: Focal length: 35mm
28: F#: 2.8
29M: 29M pixel
Specifications
| Product Name | 29MP Fixed Focal Length Lenses |
|---|---|
| Model | OPT-F3528-29M |
| Focal Length | 35mm |
| Aperture range | F2.8-F32 |
| Working Distance(mm) | 180~∞ |
| Filter thread (mm) | M58*P0.75 |
| Distortion(%) | <0.4% |
| Back focal length (mm) | 27.9 |
| Weight(kg) | 0.65kg |
| Sensor format | 44mm | 4/3″ | 1″ |
| FOV angle(H×V×D) |
53.39°| 28.84°| 20.72°
41.33°| 21.83°| 15.62°
64.30°| 35.64°| 25.75°
|

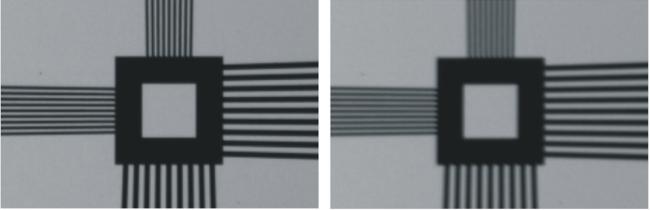

Resolution Comparison
Image taken via 29MP fixed focal length lens Image taken via other lens
Application Examples:
Application Examples:
OCR for PCB
Dimensions (mm)
| OPT-F3528-29M | |
|
|
